Operational conditions
| Heat dissipation |
305 BTU/h |
Other features
| Latency |
<5 μs (64 B) |
| Supported protocols |
768 UDP\n793 TCP\n854 Telnet\n959 FTP\n1321 MD5\n1350 TFTP\n2474\n3164 Syslog\n |
| Electromagnetic emissions |
EN 55022: 2006 (CISPR 22: 2006), Class A |
Design
| Form factor |
1U |
| Safety |
UL/CSA 60950-1, EN 60950-1, IEC 60950-1, EN 60825-1, EN 60825-2 |
Performance
| Stackable |
Y |
| Noise level |
45.1 dB |
Data transmission
| Switching capacity |
144 Gbit/s |
| Maximum data transfer rate |
10 Gbit/s |
| Number of VLANs |
1024 |
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity |
1 |
| Console port |
RS-232 |
| SFP module slots quantity |
24 |
| SFP/SFP+ slots quantity |
4 |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) |
N |
Additionally
| Wireless technologies |
Wired |
24-port 100Base-FX/GbE SFP chassis w/ 4x 10/100/1000Base-T ports, 2x modular slots & 2x AC power supplies, FTOS software

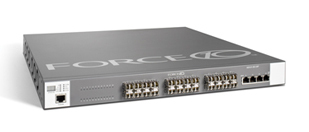

S-Series S25P High Performance GbE/10 GbE Access Switch
The Force10 S25P is a compact form factor switch that delivers high Gigabit Ethernet fiber density at the network edge, enabling cost-effective scalability while eliminating bandwidth bottlenecks at key aggregation points.
* Modular Force10 Operating System (FTOS) software delivers inherent stability.
* 24-port SFP fixed configuration 1-RU switch with up to four 10 GbE uplinks.
* Scalable stacking technology supports 192 fiber 100M or GbE ports in up to eight S25Ps.
Key Applications
Coupled with the E-Series and C-Series, which deliver unmatched resiliency and performance, the S25P enables IT managers to deploy a reliable end-to-end 10 GbE solution that spans from core to network edge.
* Small form factor intra-POP Layer 2 interconnects.
* 10 GbE LAN PHY or DWDM XFP media modules for cost-effective metro or inter-POP transport.
* Flexible customer aggregation and distribution switch supporting 10/100/1000Base-T copper and 100/1000Mbps fiber.
* Line-rate GbE and 10 GbE rack switches for the most demanding data center, storage or compute facility.
