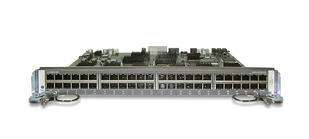

Force10 48-port 10/100/1000Base-T Line Card With PoE 1000Mbit/s networking card

48-port 10/100/1000Base-T Line Card with RJ45 interfaces with PoE (series CB) The 48-port 10/100/1000Base-T line card for the Force10 C-Series C150 and C300 provides IEEE 802.3af PoE support. Using intelligent power management each chassis can provide up to 15.4 W of power per port, while maintaining full system and PoE power supply redundancy.

This line card provides industry-leading density of up to 384 line-rate, non-blocking 10/100/1000Base-T Ethernet ports with PoE in a single chassis. Additionally, the C-Series ASICs and architecture enables line-rate performance with QoS and Access Control Lists (ACLs) enabled, jumbo frame support, and simultaneous L2 switching and IPv4 routing. The intelligence embedded in the line cards allows localized switching, providing very low latency.
Key Features
-Full line-rate throughput for Ethernet frames from 64 byte to 9,252 byte frames on all ports regardless of features enabled.
-Intelligent power management with PoE (IEEE 802.3af) support, provides Class 3 inline power of 15.4 watts per port.
-Integrated Time Domain Reflectometer (TDR) to easily monitor and isolate faults on copper wiring infrastructure.
-5 microsecond switching latency under full load for 64 byte frames.
-Auto-negotiation, auto-MDI/MDIX and per-port status and activity LEDs.
