Performance
| Throughput |
150 Mbps |
| Ethernet LAN data rates |
10, 100 Mbit/s |
| 2.4 GHz |
Y |
| Networking standards |
IEEE 802.11b, IEEE 802.11e, IEEE 802.11g, IEEE 802.11h, IEEE 802.11i, IEEE 802.11n, IEEE 802.1x, IEEE 802.3, IEEE 802.3u |
Ports & interfaces
| WAN connection |
Ethernet (RJ-45) |
| DC-in jack |
Y |
Packaging content
| Cables included |
AC |
| Quick start guide |
Y |
| Mounting kit |
Y |
Security
| Security algorithms |
802.1x RADIUS, EAP, EAP-TLS, EAP-TTLS, PEAP, SSID |
Design
| Internal |
N |
| LED indicators |
Y |
Antenna
| Antenna type |
External |
| Antenna gain level (max) |
6 dBi |
| Antennas quantity |
1 |
Weight & dimensions
| Depth |
267 mm |
| Weight |
675 g |
| Width |
145 mm |
| Height |
44 mm |
| Package weight |
1235 g |
Power
| Power over Ethernet (PoE) |
Y |
| Power supply |
12.9 W |
Operational conditions
| Storage temperature (T-T) |
-20 - 70 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Storage relative humidity (H-H) |
10 - 90% |
Additionally
| Colour of product |
White |
| AC adapter bundled |
Y |
| Ethernet LAN (RJ-45) ports quantity |
2 |
| Operating temperature range (T-T) |
-20 - 60 °C |

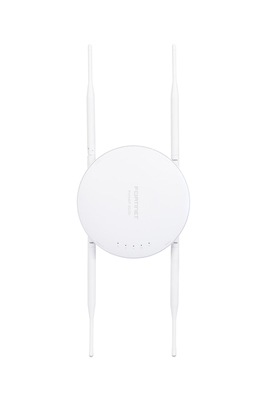

FortiAP, 224D, 802.11a/b/e/g/h/i/j/n/ac, 2.4/5GHz, Gigabit Ethernet, Region U
FortiAP are thin access points, delivering secure, identity-driven WiFi access for your enterprise network, managed centrally by the integrated WLAN controller of any FortiGate® security appliance. With the integration of the wireless controller functionality into the market leading FortiGate appliance, Fortinet delivers a true Unified Access Layer. This enables you to easily manage wired and wireless security from a Single-paneof-glass management console and protects your network from the latest security threats.
Unified Management
Unified management console simplifies operations, ensuring consistent and effective policy enforcement and compliance.
Advanced Security Protection
Wireless LAN security done right, from the leader in network security. Integrated Firewall, IPS, Application Control, and Web Filtering protect the wireless LAN from the latest security threats.
Built-in WiFi Security
Protects the network from advanced wireless threats and satisfies PCI DSS compliance.
