Performance
Motherboard form factor |
Micro ATX |
Audio system |
Realtek ALC888S |
Other features
Manageability features |
PCI 2.3, USB2.0, DMI 2.5 |
Internal I/O
USB 2.0 connectors |
2 |
S/PDIF out connector |
Y |
Number of SATA connectors |
2 |
ATX Power connector (24-pin) |
Y |
TPM connector |
Y |
CPU fan connector |
Y |
Number of COM connectors |
1 |
Front panel audio connector |
Y |
Graphics
On-board graphics adapter |
Y |
Expansion slots
PCI Express x16 slots |
1 |
PCI Express x1 slots |
1 |
Memory
Number of memory slots |
1 |
Maximum internal memory |
4 GB |
Back panel I/O ports
PS/2 ports quantity |
2 |
Headphone outputs |
3 |
VGA (D-Sub) ports quantity |
1 |
Networking
Networking features |
10/100/1000 Mbps |
Additionally
Ethernet LAN (RJ-45) ports quantity |
1 |

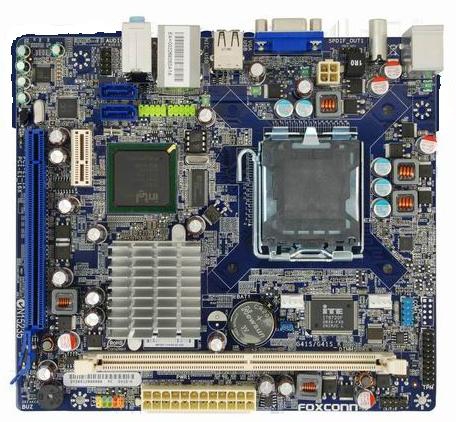

G41S-K - 775, DDR2, Intel G41 + ICH7, micro ATX, Ethernet
- Intel Core 2 Quad, Core 2 Duo, Pentium Dual-Core processors, Socket T (LGA775)
- Supports Intel 45nm Multi-Core processors
- 1333/1066/800 MHz (FSB)
- DDR2 800/667/533 x 1 DIMMs, Max 4GB
- 1* PCIe x16, 1* PCIe x1
- 2*SATAII
- 5.1 channel
- Gigabit LAN
- 8 USB 2.0 ports.
