Power
| Power consumption (max) |
18 W |
Ports & interfaces
| VGA (D-Sub) output ports |
1 |
| BNC input ports |
4 |
Networking
| Supported network protocols |
TCP/IP, HTTP, PPPoE, DHCP, DDNS, TSP, FTP |
Hard drive
| Hard drive interface |
Serial ATA |
| Maximum hard drive capacity |
1000 GB |
Additionally
| RS-232 port |
1 |
| Ethernet LAN (RJ-45) ports quantity |
1 |

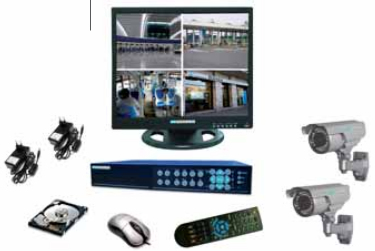

VENEZIA kit - 4-channel Esaplex DVR w/ DVR VENEZIA, HDD-250S, 17” LCD-17VGA, 2x IP66 Sony compact cameras, 2x 12V-2A PSU-12V2A, optical USB mouse, remote control
The VENEZIA kit is the ideal solution to make a professional and complete video-surveillance installation for small sized locations, such as apartments, cafés, shops, etc.
The DVR supports 4 cameras and is equipped with a 250 GB hard disk, mouse and remote control. It is equipped with alarm inputs to connect 4 sensors that, together with motion detection, can manage 1 relay output.
The images can be controlled by means of a monitor and any mobile phone or smartphone.
The IP66 protection and the bracket fitted with a cable raceway allow practical and safe installation of the cameras outdoors.
<b>Main features</b>
- Esaplex (recording, live, playback, Control, Backup and remote connection)
- Privacy: limitation of the hours of permanence of data and watermarking codification system
- Full-D1 resolution (720x570)
- Mobile phone/PDA connection
- H264 hardware compression and VGA output
- Remote control and optical USB mouse included
- Recording, live and playback in real time
<b>Other features</b>
- 1 outdoor 420TVL camera
- 36 high efficiency LEDs
- Fixing bracket with cable raceway
- 4-9 mm varifocal optics with external regulation
- 17” LCD monitor with VGA input
<b>The Kit contains</b>
- 1 4-channel Esaplex DVR with H264 DVR VENEZIA (918121)
- 1 250 GB SATA hard disk installed and formatted HDD-250S (918221)
- 17” LCD-17VGA multi-medial high resolution monitor (918135)
- 2 IP66 Sony compact cameras with 36 LEDs, 4-9 mm varifocal lens and CIR36-EV66 bracket (918028)
- 2 12V-2A PSU-12V2A adapters (918002)
- 1 optical USB mouse
- 1 remote control with batteries included
