Technical details
| Operating frequency |
433.92 - 869.25 MHz |
| Auto-redialing |
Y |
| Built-in auto dialer |
Y |
Security
| Maximum operating distance |
150 m |
| Audit log |
N |
| Key generation |
N |
| Tamper switch |
Y |
| Built-in siren |
Y |
| Code hopping system |
Y |
| Alarm duration |
10 - 499 s |
Power
| Power consumption |
350 mA |
| DC-in requirements |
12-16V, 1A |
| Battery low indication |
Y |
| Standby current |
30 mA |
| Power failure detector |
Y |

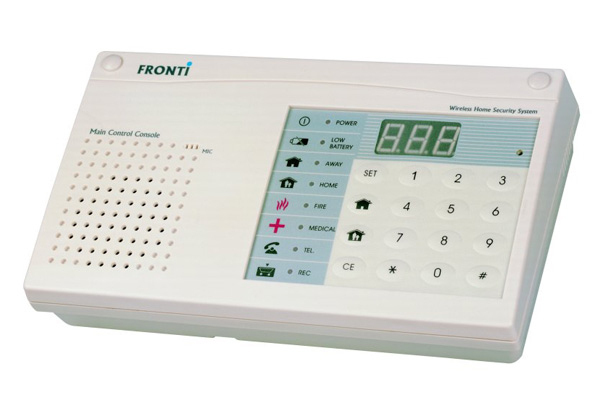

FS210 Security Console
FS210 FEATURES
-Home Arm/Away Arm and Disarm system & trigger Panic or Silent Panic by remote control.
-Total environmental protection, intrusion, Smoke/Fire/Gas/ and Sudden Medical Emergencies.
-Low battery supervision on main console and on each individual sensor.
-Built-in Auto dialer contacts Emergency phone numbers play corresponding Voice messages.
-Low battery supervision on main console and on each individual sensor.
-Code hopping system uses over one million different code combinations to prevent intruders.
-EEPROM safely stores 32 sec of Emergency messages & 6 telephone #¡¦s. Calls any type of phone number.
-Can command strategically deployed FS143HS wireless external 110dB siren/strobes.
-Built-in output terminal for connection to any external siren/strobe and NC/NO switch.
-Built-in panic and zone 4 two input terminal NC type for external wire sensors.
-Built-in rechargeable back-up battery and tamper switch and power failure detector function.
-Built-in siren with four different kinds of (110dB) siren sounds, the user knows the nature of the emergency immediately upon hearing the sounds.
-Built-in keypad controls the Exit/Entry delay periods (0-199 sec), alarm duration period (10-499 sec).
-Telephone line interruption alarm, Tamper switch & a built-in self-recharge back up battery.
-Build-in 2-phone numbers for digital dialer to Central Monitoring Station and 4-phone number for voice dialer.
-8 zone and 80 channel digital LED for display wireless sensors number and function.
-Real Door/Window Open/Closed monitoring warns users of any open access points prior to Arming.
-Hands-free speakerphone, 2-way voice communication. After the connection of emergency call, the called party can listen-in or talk with.
-Telephone line interruption alarm, Progress tone decoder and auto busy redial controller
-Real Door/Window Open/Closed monitoring warns users of any open access points prior to Arming.
-Working frequency: 433.92MHz, 869.25MHz, (other frequency also available).
