Processor special features
| Execute Disable Bit |
Y |
| Idle States |
Y |
| Thermal Monitoring Technologies |
N |
| Intel Trusted Execution Technology |
N |
| Processor ARK ID |
40800 |
| Physical Address Extension (PAE) |
Y |
| Intel 64 |
Y |
| Embedded options available |
N |
| Intel Hyper-Threading Technology |
N |
| Intel® Turbo Boost Technology |
N |
| Intel VT-x with Extended Page Tables (EPT) |
Y |
| Enhanced Intel SpeedStep Technology |
Y |
| Intel Demand Based Switching |
Y |
| Supported instruction sets |
SSE4.2 |
| Physical Address Extension (PAE) |
36 bit |
| Intel Virtualization Technology (VT-x) |
Y |
| Processor package size |
42.5 x 45 mm |
Processor
| Processor codename |
Bloomfield |
| Memory clock speeds supported by processor |
800, 1066 MHz |
| Memory channels supported by processor |
Triple |
| Memory bandwidth supported by processor (max) |
25.6 GB/s |
| Processor operating modes |
64-bit |
| Processor cores |
2 |
| Processor frequency |
2.53 GHz |
| ECC supported by processor |
Y |
| Memory types supported by processor |
DDR3-SDRAM |
| Bus type |
QPI |
| Maximum internal memory supported by processor |
24 GB |
| Processor cache type |
Smart Cache |
| Number of processors installed |
1 |
| Number of QPI links |
1 |
| Processor cache |
4 MB |
| Processor lithography |
45 nm |
| Thermal Design Power (TDP) |
130 W |
Memory
| Memory layout (slots x size) |
3 x 1 GB |
| Maximum internal memory |
24 GB |
| Internal memory |
3 GB |
| Internal memory type |
DDR3-SDRAM |
| Memory clock speed |
1066 MHz |
Graphics
| Maximum graphics adapter memory |
0.768 GB |
Storage
| Hard drive capacity |
250 GB |
| Hard drive speed |
7200 RPM |
| Card reader integrated |
Y |
| Hard drive interface |
Serial ATA |
Performance
| Audio system |
Realtek ALC663 |
| Motherboard form factor |
ATX |
Optical drive
| Optical drive type |
DVD-ROM |
Ports & interfaces
| PS/2 ports quantity |
2 |
| Firewire (IEEE 1394) ports |
1 |
| Headphone outputs |
2 |
| Microphone in |
Y |
| Serial ports quantity |
1 |
Expansion slots
| PCI Express x16 slots |
2 |
| PCI slots |
2 |
| PCI Express x4 slots |
2 |
Additionally
| Chipset |
Intel X58 Express |
| Graphics |
Quadro FX 1800 |
| Intel AES New Instructions |
N |
| Ethernet LAN (RJ-45) ports quantity |
1 |
| System bus data transfer rate |
4.8 GT/s |

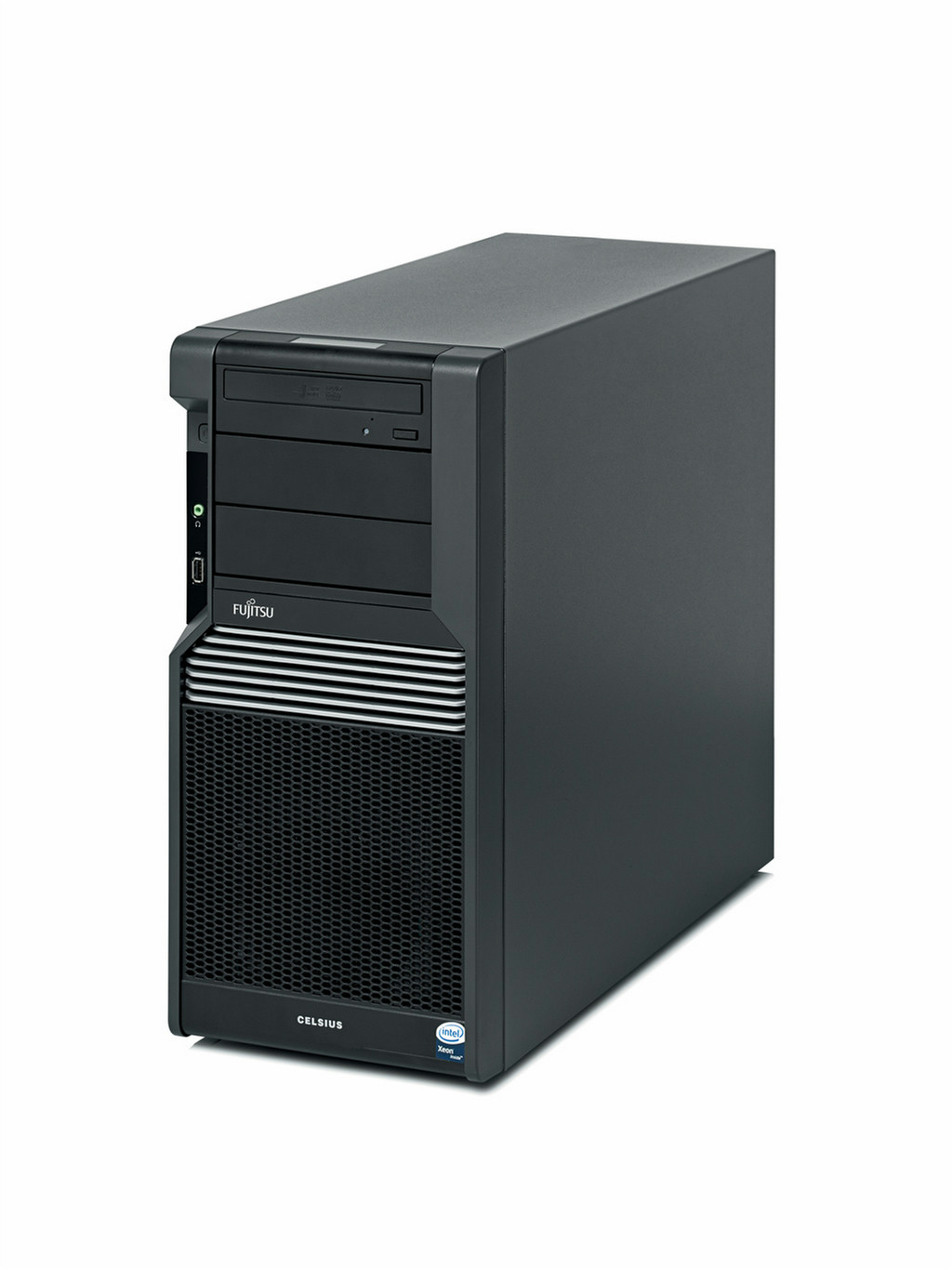

CELSIUS M470, Intel Xeon W3505 (2.53GHz, 4MB, 4.8GT/s), 3GB (3x 1GB) unbuffered ECC 1066MHz DDR3-SDRAM RAM, NVIDIA Quadro FX 1800 768MB, 250GB SATA 7200rpm 3.5" S.M.A.R.T. HDD, DVD Super Multi, MultiCard Reader 20in1, Microsoft Windows Vista Business
Your new “Thoroughbred” Workstation
Do you need more power, more memory, more data security, and more expandability than a conventional PC can offer? Then choose the mid-range workstation CELSIUS M Series. CELSIUS workstations are equipped with the very latest technology and system components to deliver high-end performance. CELSIUS are certified for a huge variety of software applications.
SPECIAL FEATURES
-Mid-range single Intel® Xeon® Processor workstation.
-Integrated system status display.
-ENERGY STAR® certified configurations.
-Supports up to two high-end graphics.
-Up to 24 GB memory.
ATTRACTIVE DESIGN
At Fujitsu, design is driven by function. Products are designed to look good and meet all your business needs.
After intensive field tests, we are now introducing a unified product design across our whole CELSIUS workstation line. The new products combine high quality, latest technology, reliability, environmental aspects and innovation with a puristic and timeless look. The so-called core and shell concept shows the perfect balance between technologies and shape.
WORKSTATION APPLICATION FIELDS
The CELSIUS M-Series is optimized for applications like high-end 3D computer aided design, digital content creation and financial analysis.
