Processor special features
Execute Disable Bit |
Y |
Thermal Monitoring Technologies |
N |
Intel® Quick Sync Video Technology |
N |
Intel® Insider™ |
N |
Intel Rapid Storage Technology |
N |
Intel Fast Memory Access |
N |
Intel Flex Memory Access |
N |
Idle States |
Y |
Intel Trusted Execution Technology |
N |
Physical Address Extension (PAE) |
36 bit |
Intel Virtualization Technology (VT-x) |
Y |
Processor package size |
42.5 mm |
Processor ARK ID |
39718 |
Processor code |
SLBEW |
Intel 64 |
Y |
Intel Clear Video Technology |
N |
Intel Dual Display Capable Technology |
N |
CPU configuration (max) |
1 |
Embedded options available |
N |
Intel Virtualization Technology for Directed I/O (VT-d) |
N |
Intel® Smart Cache |
Y |
Intel® Anti-Theft Technology (Intel® AT) |
N |
Intel Hyper-Threading Technology |
Y |
Intel® Turbo Boost Technology |
Y |
Intel Enhanced Halt State |
Y |
Intel® My WiFi Technology (Intel® MWT) |
N |
Intel Clear Video Technology for MID |
N |
Intel vPro Technology |
N |
Intel VT-x with Extended Page Tables (EPT) |
Y |
Intel FDI Technology |
N |
Enhanced Intel SpeedStep Technology |
Y |
Intel Demand Based Switching |
Y |
Intel® Wireless Display (Intel® WiDi) |
N |
Intel® Clear Video HD Technology (Intel® CVT HD) |
N |
Supported instruction sets |
SSE4.2 |
Processor
Memory clock speeds supported by processor |
800, 1066 MHz |
Processor cache type |
Smart Cache |
Number of processors installed |
1 |
Processor core voltage (AC) |
0.800 - 1.225 V |
Processor boost frequency |
2.93 GHz |
Number of QPI links |
1 |
Processor cache |
8 MB |
Processor lithography |
45 nm |
Thermal Design Power (TDP) |
130 W |
Processor codename |
Bloomfield |
Memory channels supported by processor |
Triple |
Conflict Free processor |
N |
Memory bandwidth supported by processor (max) |
25.6 GB/s |
Processor front side bus |
1066 MHz |
FSB Parity |
N |
Number of Processing Die Transistors |
731 M |
CPU multiplier (bus/core ratio) |
20 |
Processor operating modes |
64-bit |
Processor system type |
UP |
Stepping |
D0 |
Processor cores |
4 |
Processor frequency |
2.66 GHz |
Maximum internal memory supported by processor |
24 GB |
Tcase |
67.9 °C |
ECC supported by processor |
Y |
Memory types supported by processor |
DDR3-SDRAM |
Bus type |
QPI |
Other features
Maximum number of SMP processors |
1 |
BIOS password |
Y |
Acoustic pressure emissions |
23 dB |
External drive bays |
3x 5.25" |
Internal drive bays |
4x 3.5" |
Floppy drive installed |
N |
Hard drive capacity (group 1) |
500 GB |
Hard drive capacity (group 2) |
500 GB |
Hard disk interface (group 1) |
SATA |
Hard disk interface (group 2) |
SATA |
Motherboard |
D2778 |
TV tuner integrated |
N |
Networking features |
Gigabit Ethernet |
Packaging content
Display included |
N |
Handheld remote control |
N |
Mouse included |
Y |
Ports & interfaces
Serial ports quantity |
1 |
DVI port |
Y |
PS/2 ports quantity |
2 |
Firewire (IEEE 1394) ports |
2 |
Headphone outputs |
3 |
S/PDIF out port |
Y |
Microphone in |
Y |
Graphics
On-board graphics adapter |
N |
Discrete graphics adapter model |
NVIDIA Quadro FX 1800 |
Maximum graphics adapter memory |
0.768 GB |
Expansion slots
PCI slots |
2 |
PCI Express x4 slots |
2 |
PCI Express x16 slots |
2 |
Memory
Memory clock speed |
1333 MHz |
Memory layout (slots x size) |
2 x 2 GB |
Internal memory type |
DDR3-SDRAM |
Maximum internal memory |
24 GB |
Internal memory |
4 GB |
Storage
Hard drive speed |
7200 RPM |
Total storage capacity |
1000 GB |
Card reader integrated |
Y |
Number of hard drives installed |
2 |
Hard drive interface |
Serial ATA |
Performance
Audio system |
Realtek ALC663 |
Optical drive
Optical drive type |
DVD Super Multi |
Additionally
InTru™ 3D Technology |
N |
System bus data transfer rate |
4.80 GT/s |
Processing die size |
263 mm² |
Ethernet LAN connection |
Y |
Intel AES New Instructions |
N |
Ethernet LAN (RJ-45) ports quantity |
1 |

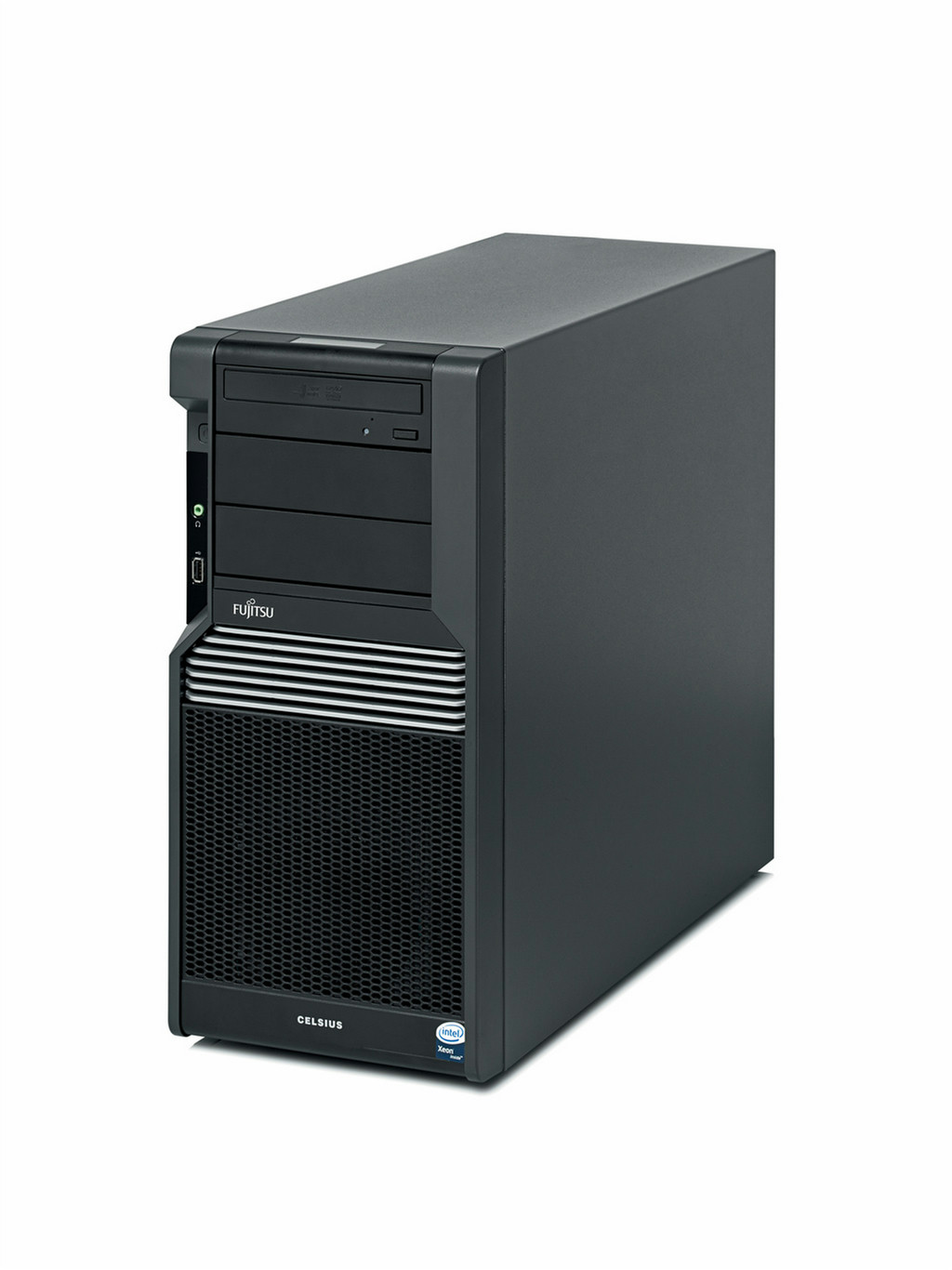

CELSIUS M470, Intel Xeon W3520 (2.66GHz, 8MB, 4.8GT/s), 4GB (2x 4GB) unbuffered ECC 1333MHz DDR3-SDRAM RAM, NVIDIA Quadro FX 1800 768MB, 1000GB (2x 500Gb) SATAII 7200rpm 3.5" S.M.A.R.T. HDD, DVD Super Multi, MultiCard Reader 15in1, Microsoft Windows 7 Professional
Your new “Thoroughbred” Workstation
Do you need more power, more memory, more data security, and more expandability than a conventional PC can offer? Then choose the mid-range workstation CELSIUS M Series. CELSIUS workstations are equipped with the very latest technology and system components to deliver high-end performance. CELSIUS are certified for a huge variety of software applications.
SPECIAL FEATURES
-Mid-range single Intel® Xeon® Processor workstation.
-Integrated system status display.
-ENERGY STAR® certified configurations.
-Supports up to two high-end graphics.
-Up to 24 GB memory.
ATTRACTIVE DESIGN
At Fujitsu, design is driven by function. Products are designed to look good and meet all your business needs.
After intensive field tests, we are now introducing a unified product design across our whole CELSIUS workstation line. The new products combine high quality, latest technology, reliability, environmental aspects and innovation with a puristic and timeless look. The so-called core and shell concept shows the perfect balance between technologies and shape.
WORKSTATION APPLICATION FIELDS
The CELSIUS M-Series is optimized for applications like high-end 3D computer aided design, digital content creation and financial analysis.
