Performance
| Motherboard form factor |
ATX |
| Audio system |
Realtek ALC663 |
Processor
| Processor core voltage (AC) |
0.800 - 1.225 V |
| Processor boost frequency |
2.93 GHz |
| Number of QPI links |
1 |
| FSB Parity |
N |
| Processor front side bus |
1066 MHz |
| Number of Processing Die Transistors |
731 M |
| Stepping |
D0 |
| Processor cores |
4 |
| Processor cache |
8 MB |
| Processor lithography |
45 nm |
| Thermal Design Power (TDP) |
130 W |
| Processor codename |
Bloomfield |
| Memory clock speeds supported by processor |
800, 1066 MHz |
| Memory channels supported by processor |
Triple |
| Conflict Free processor |
N |
| CPU multiplier (bus/core ratio) |
20 |
| Processor operating modes |
64-bit |
| Processor system type |
UP |
| Processor frequency |
2.66 GHz |
| Memory bandwidth supported by processor (max) |
25.6 GB/s |
| Maximum internal memory supported by processor |
24 GB |
| Tcase |
67.9 °C |
| ECC supported by processor |
Y |
| Memory types supported by processor |
DDR3-SDRAM |
| Bus type |
QPI |
| Processor cache type |
Smart Cache |
Processor special features
| Intel Rapid Storage Technology |
N |
| Intel Dual Display Capable Technology |
N |
| CPU configuration (max) |
1 |
| Embedded options available |
N |
| Intel Virtualization Technology for Directed I/O (VT-d) |
N |
| Intel® Smart Cache |
Y |
| Intel® Anti-Theft Technology (Intel® AT) |
N |
| Intel Hyper-Threading Technology |
Y |
| Intel® My WiFi Technology (Intel® MWT) |
N |
| Intel Fast Memory Access |
N |
| Intel Flex Memory Access |
N |
| Execute Disable Bit |
Y |
| Idle States |
Y |
| Thermal Monitoring Technologies |
N |
| Intel Trusted Execution Technology |
N |
| Physical Address Extension (PAE) |
36 bit |
| Intel Virtualization Technology (VT-x) |
Y |
| Processor package size |
42.5 mm |
| Processor ARK ID |
39718 |
| Processor code |
SLBEW |
| Intel® Quick Sync Video Technology |
N |
| Intel® Insider™ |
N |
| Intel 64 |
Y |
| Intel Clear Video Technology |
N |
| Intel® Turbo Boost Technology |
Y |
| Intel Enhanced Halt State |
Y |
| Intel Clear Video Technology for MID |
N |
| Intel vPro Technology |
N |
| Intel VT-x with Extended Page Tables (EPT) |
Y |
| Intel FDI Technology |
N |
| Enhanced Intel SpeedStep Technology |
Y |
| Intel Demand Based Switching |
Y |
| Intel® Wireless Display (Intel® WiDi) |
N |
| Intel® Clear Video HD Technology (Intel® CVT HD) |
N |
| Supported instruction sets |
SSE4.2 |
Ports & interfaces
| Serial ports quantity |
1 |
| PS/2 ports quantity |
2 |
| Firewire (IEEE 1394) ports |
1 |
| Headphone outputs |
2 |
| Microphone in |
Y |
Storage
| Hard drive speed |
7200 RPM |
| Card reader integrated |
Y |
| Hard drive capacity |
500 GB |
| Hard drive interface |
Serial ATA |
Optical drive
| Optical drive type |
DVD-ROM |
Memory
| Maximum internal memory |
24 GB |
| Memory clock speed |
1333 MHz |
| Memory layout (slots x size) |
3 x 1 GB |
| Internal memory |
3 GB |
| Internal memory type |
DDR3-SDRAM |
Expansion slots
| PCI slots |
2 |
| PCI Express x4 slots |
2 |
| PCI Express x16 slots |
2 |
Graphics
| Maximum graphics adapter memory |
0.768 GB |
Additionally
| Chipset |
Intel X58 Express |
| InTru™ 3D Technology |
N |
| Graphics |
Quadro FX 1800 |
| Intel AES New Instructions |
N |
| Ethernet LAN (RJ-45) ports quantity |
1 |
| System bus data transfer rate |
4.80 GT/s |
| Processing die size |
263 mm² |

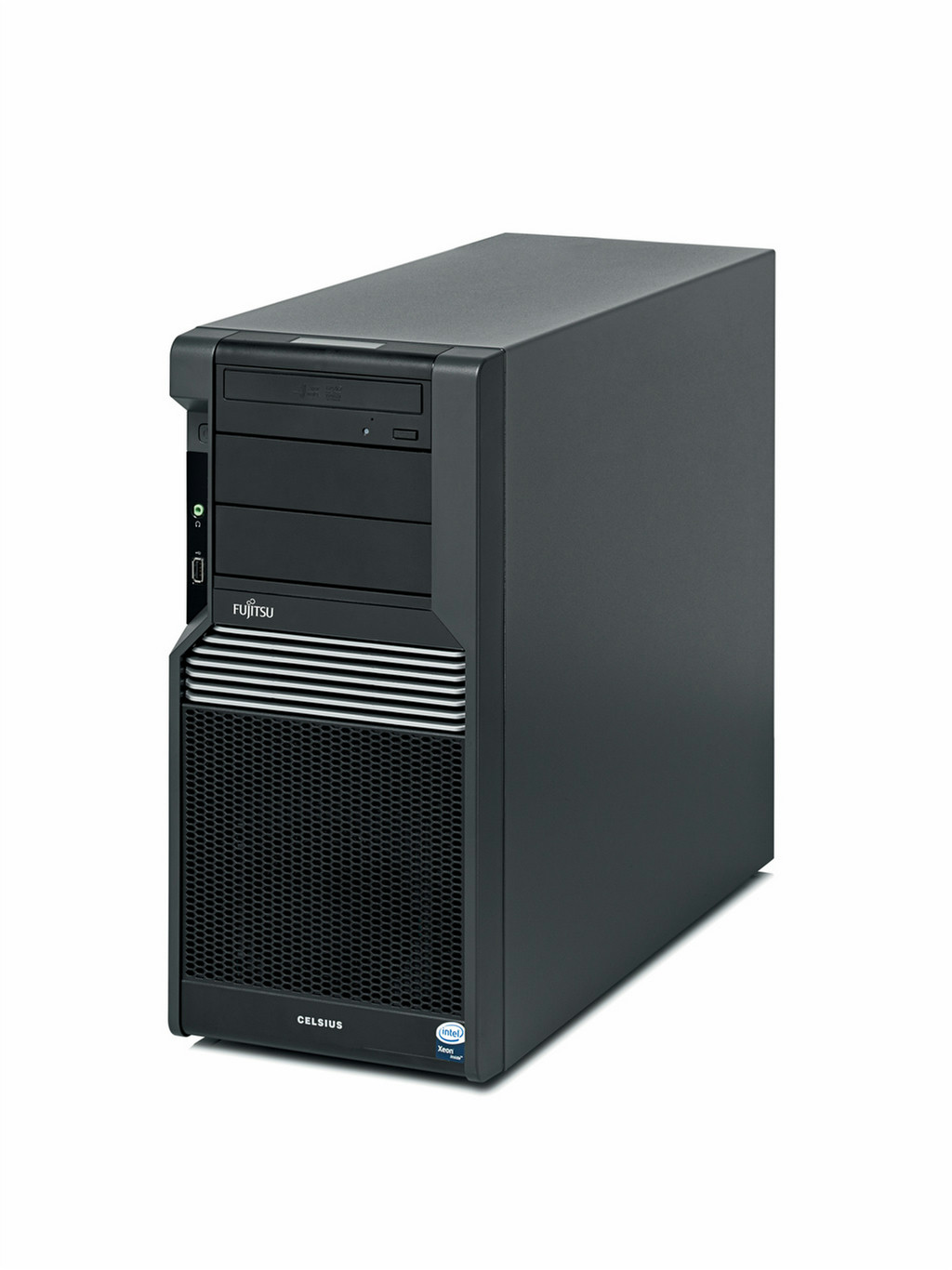

CELSIUS M470, Intel Xeon W3520 (2.66GHz, 8MB, 4.8GT/s), 3GB (3x 1GB) unbuffered ECC 1333MHz DDR3-SDRAM RAM, NVIDIA Quadro FX 1800 768MB, 500GB SATA 7200rpm 3.5" S.M.A.R.T. HDD, DVD Super Multi, MultiCard Reader 20in1, Microsoft Windows Vista Business
Your new “Thoroughbred” Workstation
Do you need more power, more memory, more data security, and more expandability than a conventional PC can offer? Then choose the mid-range workstation CELSIUS M Series. CELSIUS workstations are equipped with the very latest technology and system components to deliver high-end performance. CELSIUS are certified for a huge variety of software applications.
SPECIAL FEATURES
-Mid-range single Intel® Xeon® Processor workstation.
-Integrated system status display.
-ENERGY STAR® certified configurations.
-Supports up to two high-end graphics.
-Up to 24 GB memory.
ATTRACTIVE DESIGN
At Fujitsu, design is driven by function. Products are designed to look good and meet all your business needs.
After intensive field tests, we are now introducing a unified product design across our whole CELSIUS workstation line. The new products combine high quality, latest technology, reliability, environmental aspects and innovation with a puristic and timeless look. The so-called core and shell concept shows the perfect balance between technologies and shape.
WORKSTATION APPLICATION FIELDS
The CELSIUS M-Series is optimized for applications like high-end 3D computer aided design, digital content creation and financial analysis.
