Other features
| Maximum number of SMP processors |
2 |
| External drive bays |
3 x 5.25" |
| Internal drive bays |
4 x 3.5" |
| Networking speed |
10/100/1000 Mbit/s |
| Mac compatibility |
N |
| Drive bays |
7 |
Packaging content
| Display included |
N |
| Drivers included |
Y |
Processor
| Number of processors installed |
2 |
| Processor boost frequency |
2.53 GHz |
| Number of QPI links |
2 |
| Processor cache |
8 MB |
| Thermal Design Power (TDP) |
80 W |
| Memory clock speeds supported by processor |
800, 1066 MHz |
| Memory channels supported by processor |
Triple |
| Conflict Free processor |
N |
| FSB Parity |
N |
| CPU multiplier (bus/core ratio) |
17 |
| Processor operating modes |
64-bit |
| Processor system type |
DP |
| Processor frequency |
2.26 GHz |
| Tcase |
72 °C |
| ECC supported by processor |
Y |
| Memory types supported by processor |
DDR3-SDRAM |
| Bus type |
QPI |
| Memory bandwidth supported by processor (max) |
25.6 GB/s |
| Maximum internal memory supported by processor |
144 GB |
| Processor cache type |
Smart Cache |
| Number of Processing Die Transistors |
731 M |
| Processor lithography |
45 nm |
| Stepping |
D0 |
| Processor cores |
4 |
Memory
| Non-ECC |
Y |
| ECC |
Y |
| Memory slots |
6x DIMM |
| Maximum internal memory |
48 GB |
| Internal memory type |
DDR3-SDRAM |
| Internal memory |
4 GB |
Processor special features
| Intel Rapid Storage Technology |
N |
| Idle States |
Y |
| Thermal Monitoring Technologies |
N |
| Intel Trusted Execution Technology |
N |
| Physical Address Extension (PAE) |
40 bit |
| Intel 64 |
Y |
| Intel Clear Video Technology |
N |
| Intel Dual Display Capable Technology |
N |
| CPU configuration (max) |
2 |
| Intel Virtualization Technology for Directed I/O (VT-d) |
Y |
| Intel® Smart Cache |
Y |
| Intel® Anti-Theft Technology (Intel® AT) |
N |
| Intel Hyper-Threading Technology |
Y |
| Intel® Turbo Boost Technology |
Y |
| Intel Enhanced Halt State |
Y |
| Intel VT-x with Extended Page Tables (EPT) |
Y |
| Intel FDI Technology |
N |
| Enhanced Intel SpeedStep Technology |
Y |
| Intel Fast Memory Access |
N |
| Intel Flex Memory Access |
N |
| Execute Disable Bit |
Y |
| Intel Virtualization Technology (VT-x) |
Y |
| Processor package size |
42.5 mm |
| Processor ARK ID |
40200 |
| Processor code |
SLBFD |
| Intel® Quick Sync Video Technology |
N |
| Intel® Insider™ |
N |
| Embedded options available |
N |
| Intel® My WiFi Technology (Intel® MWT) |
N |
| Intel Clear Video Technology for MID |
N |
| Intel vPro Technology |
N |
| Intel Demand Based Switching |
Y |
| Intel® Wireless Display (Intel® WiDi) |
N |
| Intel® Clear Video HD Technology (Intel® CVT HD) |
N |
Expansion slots
| PCI slots |
2 |
| PCI Express x4 slots |
2 |
| PCI Express x16 slots |
2 |
Software
| Optional operating system supplied |
Windows XP Professional |
Graphics
| Maximum graphics adapter memory |
0.5 GB |
Storage
| Hard drive capacity |
2000 GB |
| Hard drive interface |
Serial ATA II |
| Card reader integrated |
N |
Power
| Power supply input voltage |
100 - 240 V V |
| Power supply input frequency |
50 - 60 Hz |
| Power supply |
1000 W |
Ports & interfaces
| Serial ports quantity |
1 |
| PS/2 ports quantity |
2 |
| Line-in |
Y |
| Headphone outputs |
1 |
| Microphone in |
Y |
Additionally
| Graphics |
Quadro FX 580 |
| Ethernet LAN (RJ-45) ports quantity |
1 |
| System bus data transfer rate |
5.86 GT/s |
| Processing die size |
263 mm² |
| InTru™ 3D Technology |
N |
| Intel AES New Instructions |
N |

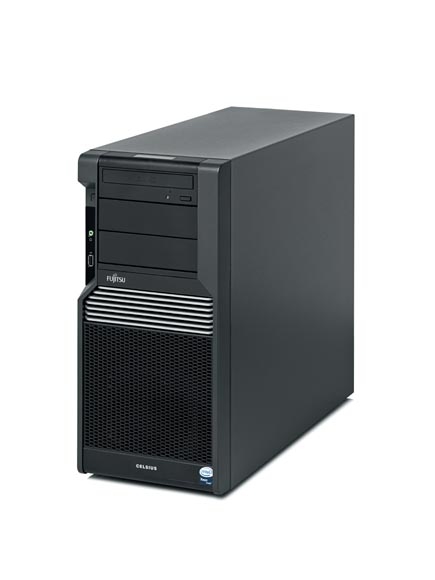

CELSIUS R570, Intel XEON E5520, 2.26GHz, 2x 1TB HDD, 4GB RAM, DVD-RW, Nvidia Quadro FX580, 512 Mb
The Dual Processor Workstations
If you’re looking for a powerful, dual-processor workstation with an extensive selection of graphics subsystems, the CELSIUS R570 and CELSIUS R670 are ready to take on all challenges. These models combine the latest technology and best components available with all imaginable expansion possibilities, making it the choice for your most storage-hungry applications.
