Ports & interfaces
| DVI-I ports quantity |
1 |
| Serial ports quantity |
1 |
| PS/2 ports quantity |
2 |
| Headphone outputs |
2 |
| Microphone in |
Y |
| VGA (D-Sub) ports quantity |
1 |
Packaging content
| Mouse included |
Y |
| Display included |
N |
Processor
| Stepping |
C2 |
| Processor cores |
2 |
| Processor frequency |
3.2 GHz |
| PCI Express slots version |
2.0 |
| Maximum internal memory supported by processor |
16 GB |
| Number of Processing Die Transistors |
382 M |
| Number of processors installed |
1 |
| Processor boost frequency |
3.46 GHz |
| Processor cache |
4 MB |
| Processor lithography |
32 nm |
| Thermal Design Power (TDP) |
73 W |
| Maximum number of PCI Express lanes |
16 |
| Processor codename |
Clarkdale |
| Processor cache type |
Smart Cache |
| Conflict Free processor |
N |
| PCI Express configurations |
1x16, 2x8 |
| Memory bandwidth supported by processor (max) |
21 GB/s |
| FSB Parity |
N |
| CPU multiplier (bus/core ratio) |
24 |
| Processor operating modes |
64-bit |
| Tcase |
72.6 °C |
| ECC supported by processor |
N |
| Bus type |
DMI |
Storage
| Card reader integrated |
Y |
| Number of hard drives installed |
2 |
| Hard drive interface |
Serial ATA II |
| Hard drive capacity |
2000 GB |
| Hard drive speed |
7200 RPM |
Processor special features
| Intel® My WiFi Technology (Intel® MWT) |
N |
| Intel Clear Video Technology for MID |
N |
| Intel vPro Technology |
Y |
| Intel Rapid Storage Technology |
N |
| Graphics & IMC lithography |
45 nm |
| Intel Fast Memory Access |
N |
| Intel Flex Memory Access |
N |
| Execute Disable Bit |
Y |
| Thermal Monitoring Technologies |
N |
| Intel Trusted Execution Technology |
Y |
| Physical Address Extension (PAE) |
36 bit |
| Processor package size |
37.5 mm |
| Processor ARK ID |
43546 |
| Intel® Quick Sync Video Technology |
N |
| Intel® Insider™ |
N |
| Intel 64 |
Y |
| Intel Clear Video Technology |
N |
| Intel Dual Display Capable Technology |
Y |
| CPU configuration (max) |
1 |
| Embedded options available |
N |
| Intel Virtualization Technology for Directed I/O (VT-d) |
Y |
| Intel® Anti-Theft Technology (Intel® AT) |
N |
| Intel Hyper-Threading Technology |
Y |
| Intel® Turbo Boost Technology |
Y |
| Intel Enhanced Halt State |
Y |
| Intel VT-x with Extended Page Tables (EPT) |
Y |
| Intel FDI Technology |
Y |
| Enhanced Intel SpeedStep Technology |
Y |
| Intel Demand Based Switching |
N |
| Intel® Wireless Display (Intel® WiDi) |
N |
| Intel® Clear Video HD Technology (Intel® CVT HD) |
Y |
| Supported instruction sets |
SSE4.2 |
Memory
| Internal memory |
4 GB |
| Internal memory type |
DDR3-SDRAM |
| ECC |
Y |
| Memory clock speed |
1333 MHz |
| Memory layout (slots x size) |
2 x 2 GB |
| Maximum internal memory |
16 GB |
Other features
| Maximum number of SMP processors |
1 |
| External drive bays |
2x 3.5", 2x 5.25" |
| Internal drive bays |
4x 3.5" |
| Speakers |
Mono |
Graphics
| On-board graphics adapter |
Y |
| On-board graphics adapter family |
Intel HD Graphics |
| On-board graphics adapter base frequency |
733 MHz |
| Maximum graphics adapter memory |
0.5 GB |
| Number of displays supported (on-board graphics) |
2 |
Expansion slots
| PCI slots |
3 |
| PCI Express x16 slots |
1 |
| PCI Express x1 slots |
2 |
| PCI Express x4 slots |
1 |
Software
| Optional operating system supplied |
Windows XP Professional |
Performance
| Audio system |
Realtek ALC663 |
Optical drive
| Optical drive type |
DVD Super Multi |
Additionally
| Graphics |
Quadro FX 580 |
| System bus data transfer rate |
2.5 GT/s |
| Processing die size |
81 mm² |
| InTru™ 3D Technology |
N |
| Chipset |
Intel 3450 |
| Intel AES New Instructions |
Y |
| Ethernet LAN (RJ-45) ports quantity |
1 |

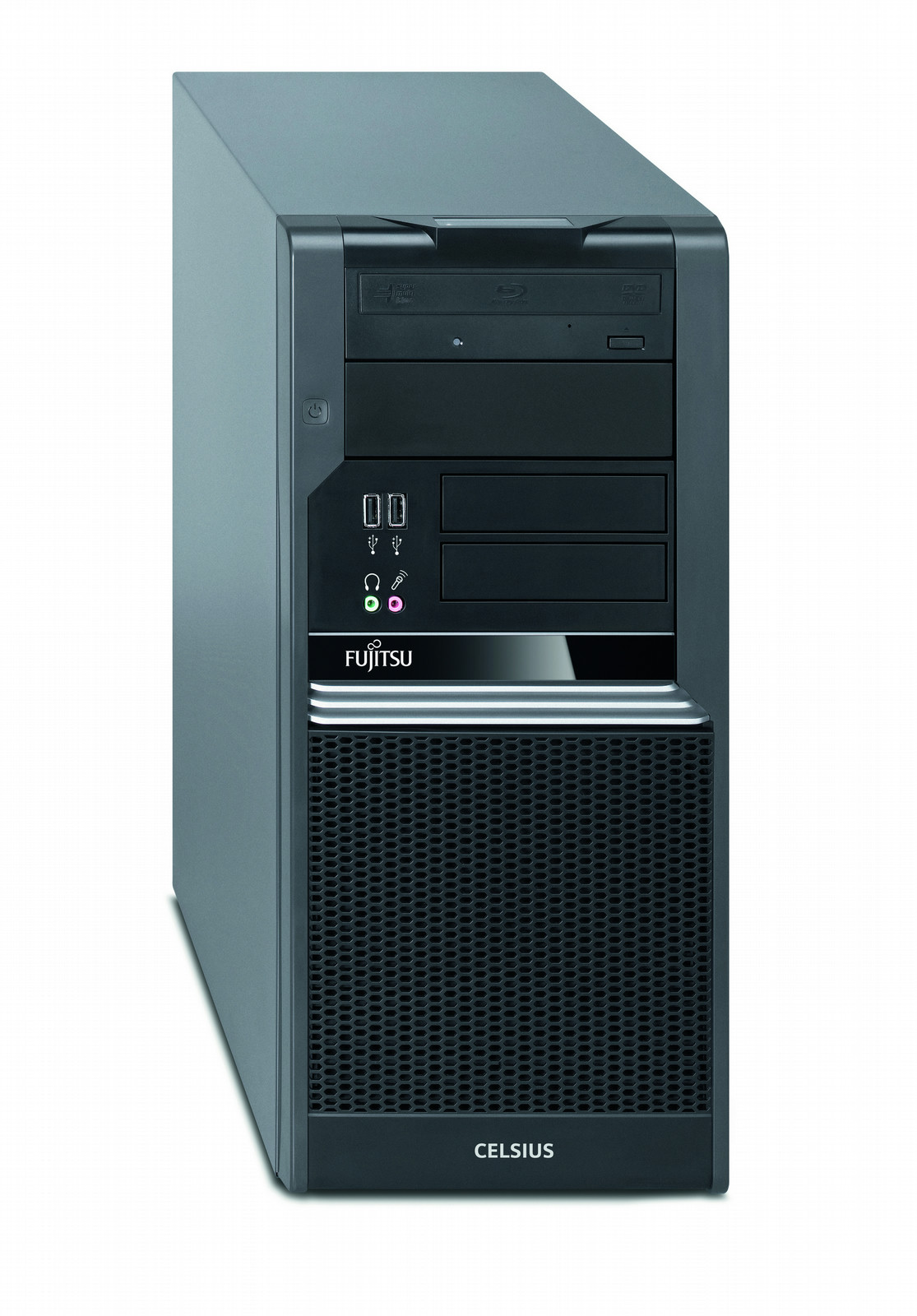

CELSIUS W380, Intel Core i5-650 (3.20GHz, 4MB), 2GB (2x 2GB) DDR3 ECC 1333MHz PC3-10600 RAM, 2TB (2x 1000GB) SATAII 7200rpm 3.5" S.M.A.R.T. HDD, NVIDIA Quadro FX 580 512MB, DVD Super Multi, MultiCard Reader 20in1, Microsoft Windows 7 Professional & Microsoft Windows XP Professional
Welcome to a world of power
The CELSIUS W380 is the versatile all-round workstation for entry-level graphics applications. Powered by the latest Intel® processors with application-optimized graphics cards, the CELSIUS W380 offers great performance without breaking the bank. Ample room for expandability, thanks to 4 hard disk drive bays and 7 PCI slots, ensures that the workstation can be continually customized to your needs.
QUIET OPERATION
Fujitsu workstations offer class-leading low noise emissions. This is achieved through an optimized thermal management system, which makes use of air tunnels to provide efficient airflow within the system. This gives the system excellent reliability and makes it exceptionally quiet, ensuring hours of distraction-free productivity.
WORKSTATION APPLICATION FIELDS
The CELSIUS W380 is the ideal choice for business scenarios such as entry-level computer-aided design, digital content creation and electronic design automation.
