Memory
| Non-ECC |
Y |
| ECC |
Y |
| Memory clock speed |
1333 MHz |
| Memory layout (slots x size) |
2 x 2 GB |
| Maximum internal memory |
16 GB |
| Internal memory |
4 GB |
Processor
| Processor boost frequency |
3.6 GHz |
| Processor cache |
4 MB |
| Processor lithography |
32 nm |
| Thermal Design Power (TDP) |
73 W |
| Maximum number of PCI Express lanes |
16 |
| Processor codename |
Clarkdale |
| Conflict Free processor |
N |
| PCI Express configurations |
1x16, 2x8 |
| FSB Parity |
N |
| Number of Processing Die Transistors |
382 M |
| CPU multiplier (bus/core ratio) |
25 |
| Processor operating modes |
64-bit |
| Processor cores |
2 |
| Processor frequency |
3.33 GHz |
| Tcase |
72.6 °C |
| ECC supported by processor |
N |
| Bus type |
DMI |
| Memory bandwidth supported by processor (max) |
21 GB/s |
| Maximum internal memory supported by processor |
16 GB |
| Processor cache type |
Smart Cache |
| PCI Express slots version |
2.0 |
Processor special features
| Intel Rapid Storage Technology |
N |
| Graphics & IMC lithography |
45 nm |
| Intel Fast Memory Access |
N |
| Intel Flex Memory Access |
N |
| Execute Disable Bit |
Y |
| Thermal Monitoring Technologies |
N |
| Intel Trusted Execution Technology |
Y |
| Physical Address Extension (PAE) |
36 bit |
| Processor package size |
37.5 mm |
| Processor ARK ID |
43550 |
| Intel® Quick Sync Video Technology |
N |
| Intel® Insider™ |
N |
| Intel 64 |
Y |
| Intel Clear Video Technology |
N |
| Intel Dual Display Capable Technology |
Y |
| CPU configuration (max) |
1 |
| Embedded options available |
Y |
| Intel Virtualization Technology for Directed I/O (VT-d) |
Y |
| Intel® Anti-Theft Technology (Intel® AT) |
N |
| Intel Hyper-Threading Technology |
Y |
| Intel® Turbo Boost Technology |
Y |
| Intel Enhanced Halt State |
Y |
| Intel® My WiFi Technology (Intel® MWT) |
N |
| Intel Clear Video Technology for MID |
N |
| Intel vPro Technology |
Y |
| Intel VT-x with Extended Page Tables (EPT) |
Y |
| Intel FDI Technology |
Y |
| Enhanced Intel SpeedStep Technology |
Y |
| Intel Demand Based Switching |
N |
| Intel® Wireless Display (Intel® WiDi) |
N |
| Intel® Clear Video HD Technology (Intel® CVT HD) |
Y |
| Supported instruction sets |
SSE4.2 |
Graphics
| On-board graphics adapter |
Y |
| On-board graphics adapter base frequency |
733 MHz |
| Maximum graphics adapter memory |
0.256 GB |
| Number of displays supported (on-board graphics) |
2 |
| On-board graphics adapter family |
Intel HD Graphics |
Expansion slots
| PCI slots |
3 |
| PCI Express x1 slots |
2 |
| PCI Express x4 slots |
1 |
| PCI Express x16 slots |
1 |
Storage
| Hard drive capacity |
1000 GB |
| Hard drive speed |
7200 RPM |
| Card reader integrated |
N |
| Hard drive interface |
Serial ATA II |
Optical drive
| Optical drive type |
DVD-RW |
Ports & interfaces
| PS/2 ports quantity |
2 |
| Headphone outputs |
1 |
| Microphone in |
Y |
| DisplayPorts quantity |
1 |
| VGA (D-Sub) ports quantity |
1 |
| Serial ports quantity |
1 |
Additionally
| InTru™ 3D Technology |
N |
| Chipset |
Intel 3450 |
| Intel AES New Instructions |
Y |
| Ethernet LAN (RJ-45) ports quantity |
1 |
| System bus data transfer rate |
2.5 GT/s |
| Processing die size |
81 mm² |

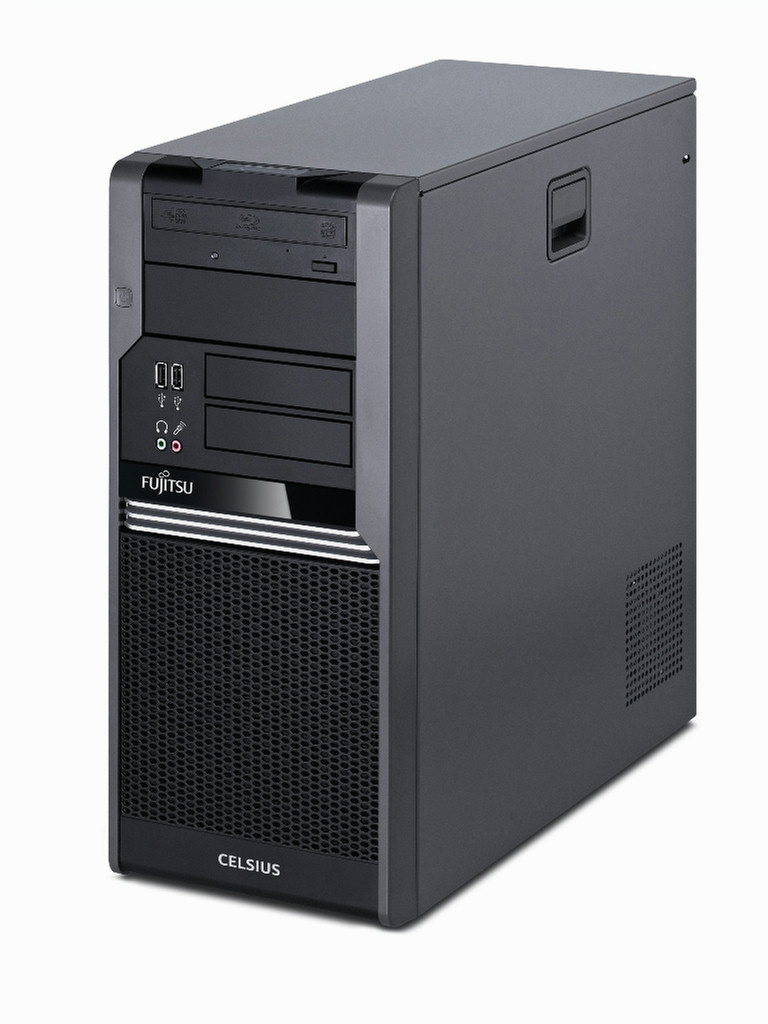

Celsius W380, Intel Core i5-660 (4M Cache, 3.33 GHz), 4 GB RAM, 1000 GB HDD, DVD-RW, Ethernet 10/100/1000
Welcome to a world of power
The CELSIUS W380 is the versatile all-round workstation for entry-level graphics applications. Powered by the latest Intel® processors with application-optimized graphics cards, the CELSIUS W380 offers great performance without breaking the bank. Ample room for expandability, thanks to 4 hard disk drive bays and 7 PCI slots, ensures that the workstation can be continually customized to your needs.
SPECIAL FEATURES
- High performance multi-core Intel® Core™ and Intel® Xeon® Processor workstation
- Excellent expandability
- Full remote System Management with iAMT v6.0 at no extra cost
- ENERGY STAR® certified configurations
- Up to 16 GB memory
QUIET OPERATION
Fujitsu workstations offer class-leading low noise emissions. This is achieved through an optimized thermal management system, which makes use of air tunnels to provide efficient airflow within the system. This gives the system excellent reliability and makes it exceptionally quiet, ensuring hours of distraction-free productivity.
WORKSTATION APPLICATION FIELDS
The CELSIUS W380 is the ideal choice for business scenarios such as entry-level computer-aided design, digital content creation and electronic design automation.
