Other features
| Maximum number of SMP processors |
1 |
| External drive bays |
2x 3.5", 2x 5.25" |
| Internal drive bays |
4x 3.5" |
| Speakers |
1 |
| Networking features |
Gigabit Ethernet (10/100/1000) |
Processor
| Number of processors installed |
1 |
| Processor boost frequency |
2.8 GHz |
| Processor cache |
8 MB |
| Processor lithography |
45 nm |
| Thermal Design Power (TDP) |
95 W |
| Maximum number of PCI Express lanes |
1 |
| Processor cache type |
Smart Cache |
| Memory clock speeds supported by processor |
800, 1066, 1333 MHz |
| Memory channels supported by processor |
Dual |
| Conflict Free processor |
N |
| PCI Express configurations |
1x16, 2x8, 4x4 |
| Memory bandwidth supported by processor (max) |
21 GB/s |
| FSB Parity |
N |
| Number of Processing Die Transistors |
774 M |
| CPU multiplier (bus/core ratio) |
18 |
| Processor operating modes |
64-bit |
| Stepping |
B1 |
| Processor cores |
4 |
| PCI Express slots version |
2.0 |
| Processor frequency |
2.4 GHz |
| Maximum internal memory supported by processor |
32 GB |
| Tcase |
72.7 °C |
| ECC supported by processor |
Y |
| Memory types supported by processor |
DDR3-SDRAM |
| Bus type |
DMI |
Ports & interfaces
| Serial ports quantity |
1 |
| PS/2 ports quantity |
2 |
| Line-in |
Y |
| Headphone outputs |
1 |
| Microphone in |
Y |
| DVI-I ports quantity |
1 |
| DisplayPorts quantity |
2 |
Memory
| Non-ECC |
Y |
| ECC |
Y |
| Memory clock speed |
1333 MHz |
| Memory layout (slots x size) |
2 x 2 GB |
| Internal memory type |
DDR3-SDRAM |
| Maximum internal memory |
16 GB |
| Internal memory |
4 GB |
Processor special features
| Intel Rapid Storage Technology |
N |
| Intel Fast Memory Access |
N |
| Intel Flex Memory Access |
N |
| Execute Disable Bit |
Y |
| Idle States |
Y |
| Thermal Monitoring Technologies |
N |
| Intel Trusted Execution Technology |
Y |
| Physical Address Extension (PAE) |
36 bit |
| Intel Virtualization Technology (VT-x) |
Y |
| Processor package size |
37.5 mm |
| Processor ARK ID |
42927 |
| Processor code |
SLBLJ |
| Intel® Quick Sync Video Technology |
N |
| Intel® Insider™ |
N |
| Intel 64 |
Y |
| Intel Clear Video Technology |
N |
| Intel Dual Display Capable Technology |
N |
| CPU configuration (max) |
1 |
| Embedded options available |
Y |
| Intel Virtualization Technology for Directed I/O (VT-d) |
Y |
| Intel® Anti-Theft Technology (Intel® AT) |
N |
| Intel Hyper-Threading Technology |
N |
| Intel® Turbo Boost Technology |
Y |
| Intel Enhanced Halt State |
Y |
| Intel® My WiFi Technology (Intel® MWT) |
N |
| Intel Clear Video Technology for MID |
N |
| Intel vPro Technology |
N |
| Intel VT-x with Extended Page Tables (EPT) |
Y |
| Intel FDI Technology |
N |
| Enhanced Intel SpeedStep Technology |
Y |
| Intel Demand Based Switching |
Y |
| Intel® Wireless Display (Intel® WiDi) |
N |
| Intel® Clear Video HD Technology (Intel® CVT HD) |
N |
| Supported instruction sets |
SSE4.2 |
Expansion slots
| PCI slots |
3 |
| PCI Express x1 slots |
1 |
| PCI Express x4 slots |
1 |
| PCI Express x16 slots |
1 |
Graphics
| Maximum graphics adapter memory |
0.256 GB |
Storage
| Hard drive capacity |
500 GB |
| Hard drive speed |
7200 RPM |
| RAID support |
Y |
| Number of hard drives installed |
1 |
| Hard drive interface |
Serial ATA II |
Performance
| Audio system |
Realtek ALC663 |
Optical drive
| Optical drive type |
DVD Super Multi |
Power
| Power supply input voltage |
AC 100-240V V |
| Power supply input frequency |
50 - 60 Hz |
| Power supply |
500 W |
Design
| Cable lock slot |
Kensington |
| Chassis type |
Tower |
Additionally
| InTru™ 3D Technology |
N |
| Chipset |
Intel 3450 |
| Processing die size |
296 mm² |
| Graphics |
Quadro FX 380 |
| System bus data transfer rate |
2.5 GT/s |
| Intel AES New Instructions |
N |
| Ethernet LAN (RJ-45) ports quantity |
1 |

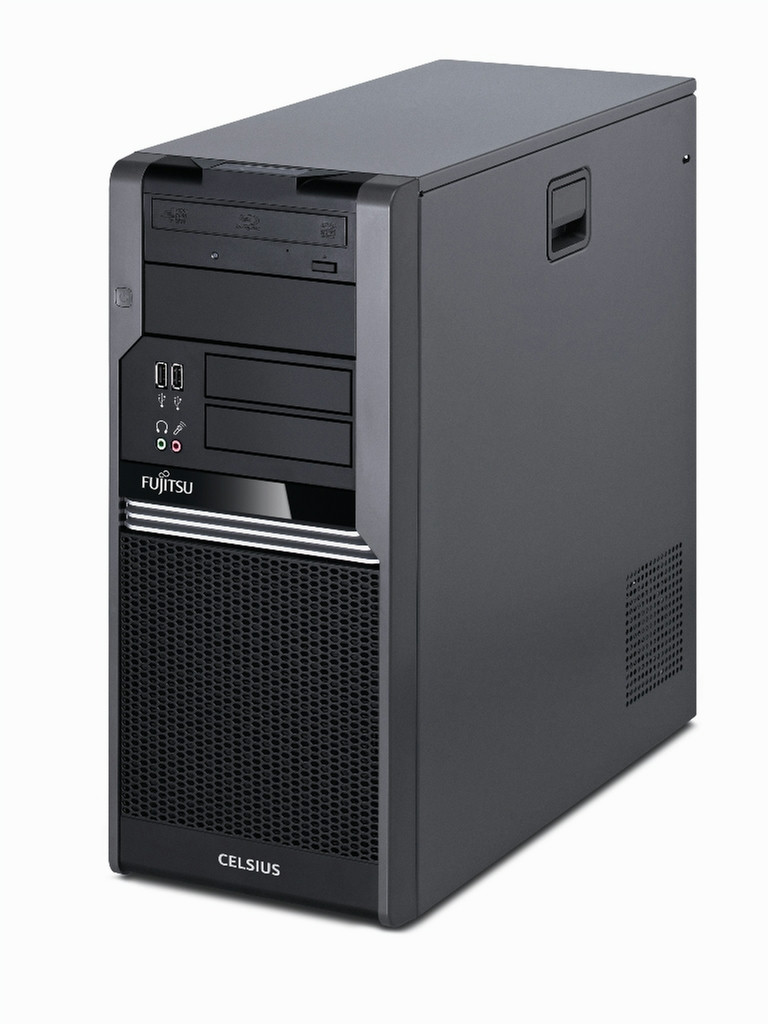

Celsius W480, Intel Xeon X3430 (2.40GHz, 8M, 2.5GT/s), 4GB (2x 2GB) DDR3 1333MHz ECC PC3-10600 RAM, 500GB SATAII 7200rpm 3.5" S.M.A.R.T. HDD, NVIDIA Quadro FX 380, DVD Super Multi, Gigabit Ethernet, Microsoft Windows 7 Professional
Say hello to high-end graphics
The CELSIUS W480 is the advanced workstation for professional environments. Powered by the latest Intel® processors and available with a wide range of high-end graphics cards, the CELSIUS W480 offers extraordinary power at a competitive price point.
QUIET OPERATION
Fujitsu workstations offer class-leading low noise emissions. This is achieved through an optimized thermal management system, which makes use of air tunnels to provide efficient airflow within the system. This gives the system excellent reliability and makes it exceptionally quiet, ensuring hours of distraction-free productivity.
WORKSTATION APPLICATION FIELDS
The CELSIUS W480 is the ideal choice for business scenarios such as 3D computer-aided design, digital content creation and electronic design automation.
