Performance
| Motherboard form factor |
Mini ITX |
| Intel Rapid Storage Technology |
Y |
| Motherboard chipset family |
Intel |
| Audio system |
Realtek ALC671 |
| Component for |
PC |
| Watch Dog function |
Y |
Memory
| Supported memory clock speeds |
1333, 1600 MHz |
| Non-ECC |
Y |
| Unbuffered memory |
Y |
| Supported memory types |
DDR3-SDRAM |
| Memory voltage |
1.35, 1.5 V |
| Memory channels |
Dual |
| Memory slots type |
SO-DIMM |
| Number of memory slots |
2 |
| Maximum internal memory |
16 GB |
BIOS
| BIOS type |
UEFI AMI |
| Clear CMOS button |
N |
Internal I/O
| USB 2.0 connectors |
2 |
| S/PDIF out connector |
N |
| Number of SATA connectors |
5 |
| ATX Power connector (24-pin) |
Y |
| S/PDIF in connector |
Y |
| USB 3.0 (3.1 Gen 1) connectors |
2 |
| Number of SATA III connectors |
5 |
| Parallel connector |
Y |
| CPU fan connector |
Y |
| Chassis intrusion connector |
Y |
| Front panel audio connector |
Y |
Graphics
| DirectX version |
11.1 |
| Graphics adapter family |
Intel |
| Number of displays supported |
3 |
Networking
| Wake-on-LAN ready |
Y |
| Wi-Fi |
N |
| Bluetooth |
N |
Processor special features
| Intel Trusted Execution Technology |
Y |
| Intel® Small Business Advantage (Intel® SBA) |
Y |
| Intel Stable Image Platform Program (SIPP) |
Y |
| Conflict Free |
Y |
| Intel® Smart Response Technology |
Y |
| Intel® Anti-Theft Technology (Intel® AT) |
Y |
| Intel® Virtualization Technology (Intel® VT) |
VT-d |
| Intel vPro Technology |
Y |
Technical details
| Intel Virtualization Technology for Directed I/O (VT-d) |
Y |
| Form factor |
mini ITX |
Back panel I/O ports
| PS/2 ports quantity |
2 |
| DVI-I ports quantity |
1 |
| COM ports quantity |
1 |
| DisplayPorts quantity |
2 |
| USB 3.0 (3.1 Gen 1) Type-A ports quantity |
2 |
| DisplayPort version |
1.2 |
Additionally
| Chipset |
Intel Q87 |
| Graphics |
Intel HD Graphics 4600 |
| Ethernet LAN connection |
Y |
| Ethernet LAN (RJ-45) ports quantity |
2 |
Chipset Intel Q87, Socket LGA1150, 2 DDR3, S0-DIMM, 16GB, non ECC, unbuffered memory, mini ITX

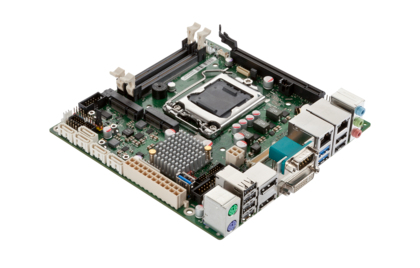

FUJITSU Industrial mini-ITX mainboard with Intel® Q87 Express Chipset supporting DDR3 1600 SDRAM Memory and 4th generation Intel® CoreTM i3 / i5 / i7 Processors (Socket LGA1150). Designed & approved for enhanced operating temperature range from 0°C to 60°C. Designed & approved for 24/7 continuous operation
