Other features
| External drive bays |
1x 3.5", 1x 5.25" |
| Internal drive bays |
1x 3.5" |
| External video modes resolution (max) |
1920 x 1200 pixels |
| Mac compatibility |
N |
| Motherboard |
D2824 |
| Compliance industry standards |
DMI 2.0, PC 2001, WMI 1.5, USB 2.0 |
| Networking features |
Gigabit Ethernet |
| BIOS password |
Y |
| Acoustic pressure emissions |
3.5 dB |
Processor special features
| Intel Rapid Storage Technology |
N |
| Intel Fast Memory Access |
N |
| Intel Flex Memory Access |
N |
| Execute Disable Bit |
Y |
| Thermal Monitoring Technologies |
Y |
| Intel Trusted Execution Technology |
N |
| Processor ARK ID |
35300 |
| Processor code |
SLB9U |
| Intel® Quick Sync Video Technology |
N |
| Intel® Insider™ |
N |
| Intel Dual Display Capable Technology |
N |
| CPU configuration (max) |
1 |
| Embedded options available |
Y |
| Intel Virtualization Technology for Directed I/O (VT-d) |
N |
| Intel® Anti-Theft Technology (Intel® AT) |
N |
| Intel Hyper-Threading Technology |
N |
| Intel® My WiFi Technology (Intel® MWT) |
N |
| Intel vPro Technology |
N |
| Intel VT-x with Extended Page Tables (EPT) |
N |
| Intel FDI Technology |
N |
| Enhanced Intel SpeedStep Technology |
Y |
| Intel Demand Based Switching |
N |
| Intel® Wireless Display (Intel® WiDi) |
N |
| Intel® Clear Video HD Technology (Intel® CVT HD) |
N |
| Intel 64 |
Y |
| Intel Clear Video Technology |
N |
| Intel® Turbo Boost Technology |
N |
| Intel Enhanced Halt State |
Y |
| Intel Clear Video Technology for MID |
N |
Graphics
| On-board graphics adapter |
Y |
| Discrete graphics adapter model |
Intel GMA 4500M |
Processor
| Processor cache |
2 MB |
| Processor lithography |
45 nm |
| Thermal Design Power (TDP) |
65 W |
| Processor codename |
Wolfdale |
| FSB Parity |
N |
| CPU multiplier (bus/core ratio) |
13 |
| Stepping |
R0 |
| Processor cores |
2 |
| Tcase |
74.1 °C |
| ECC supported by processor |
N |
| Bus type |
FSB |
| Processor front side bus |
800 MHz |
| Processor cache type |
L2 |
| Number of Processing Die Transistors |
228 M |
| Number of processors installed |
1 |
| Conflict Free processor |
N |
| Processor operating modes |
64-bit |
| Processor frequency |
2.6 GHz |
Expansion slots
| PCI slots |
2 |
| PCI Express x4 slots |
1 |
| PCI Express x16 slots |
1 |
Memory
| Memory clock speed |
800 MHz |
| Maximum internal memory |
16 GB |
| Internal memory type |
DDR2-SDRAM |
| Internal memory |
2 GB |
Storage
| Hard drive speed |
7200 RPM |
| Total storage capacity |
160 GB |
| Card reader integrated |
N |
| Hard drive interface |
Serial ATA II |
Optical drive
| Optical drive type |
DVD-ROM |
Ports & interfaces
| PS/2 ports quantity |
2 |
| Headphone outputs |
2 |
| Microphone in |
Y |
| VGA (D-Sub) ports quantity |
1 |
| Serial ports quantity |
1 |
Design
| Cable lock slot |
Kensington |
Packaging content
| Mouse included |
Y |
| Display included |
N |
Additionally
| InTru™ 3D Technology |
N |
| Intel AES New Instructions |
N |
| Ethernet LAN (RJ-45) ports quantity |
1 |
| Processing die size |
82 mm² |
| Hard disk drive, user password |
Y |

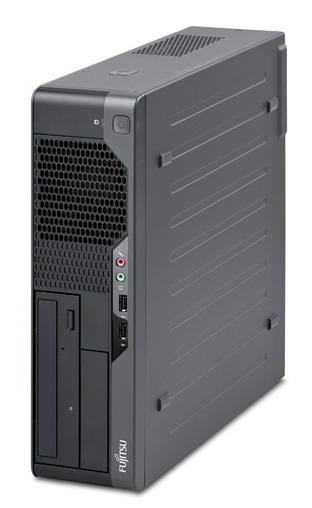

ESPRIMO E5730, Intel Pentium Dual Core E5300 (2.6 GHz, 2MB, 800MHz), 2GB DDR2 800MHz RAM, 160GB SATAII 7200rpm S.M.A.R.T. HDD, DVD Super Multi, Gigabit Ethernet, Microsoft Windows Vista Business
Your desktop without any compromises
The ESPRIMO E can be positioned vertically or horizontally if saving space is a requirement. Powered by the latest processor technology, this small form factor PC runs reliably and silently, using environmentally conscious materials. Easy access to all replaceable and expandable components without any additional tools makes the PC very user-friendly.
Extensive tests and a lifecycle of up to 18 months make the ESPRIMO E the ideal choice for customers who need a top-quality high-value desktop. So why choose between a good conscience and top features, when you can have both?
SPECIAL FEATURES
-Intel® Centrino® with vPro™ technology (optional)
-Latest Intel® Q43/Q45 chipset.
-Halogen-free mainboard.
-80 % efficiency power supply (optional).
ATTRACTIVE DESIGN
At Fujitsu, design is driven by function. Products are designed to look good and meet all your business needs. After intensive field tests we are now introducing a unified product design across our whole ESPRIMO professional PC Business Line. The new products combining high quality, latest technology, reliability, environmental aspects and innovation
with a puristic and timeless look. The so-called core and shell concept shows the perfect balance between technologies and shape.
GREEN IT
Fujitsu is committed to eliminating the use of harmful and potentially harmful substances in its products and production processes in order to minimize risk to end users and to the environment. This strategy is captured in Environmental Guideline FSC03230 and forms the basis on which all Fujitsu's products are designed. Especially for ESPRIMO professional PCs this means that all used printed circuit boards are halogen free. Furthermore they are compliant with several certificates awarding environmental conscience such as Blue Angel, Nordic Star, Energy Star and EPEAT.
FLEXIBILITY
Each business has unique, specific requirements to its IT infrastructure. You have the freedom of choice in getting systems which perfectly fit in your specific environment with hardware, software, add-on and lifecycle management.
ENERGY EFFICIENCY
As energy saving is one of the core components of Fujitsu’ approach to the environment, we permanently try to improve the energy efficiency of our products. The ESPRIMO E features latest technology regarding Intel® chipset and processor and optional an 80% efficiency power supply. Furthermore it delivers enhanced power management settings and less than 1 Watt power consumption in stand-by mode (ACPI S5 / low power soft off).
