Networking
| Supported network protocols |
FCP, SCSI-3 |
| iSCSI support |
Y |
Other features
| Networking features |
Fast Ethernet |
| Link/Act LED |
Y |
Performance
| Web-based management |
Y |
| Management protocols |
SNMP |
Storage
| Hard disk average seek time |
12 ms |
| Hard drive speed |
7200 RPM |
| Total installed storage capacity |
1500 GB |
| Storage drive capacity |
500 GB |
| Number of storage drives installed |
3 |
| Number of storage drives supported |
12 |
Power
| Power supply unit (PSU) capacity |
600 W |
Additionally
| Ethernet LAN (RJ-45) ports quantity |
1 |

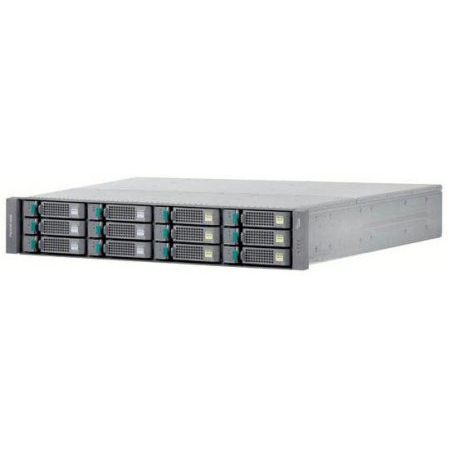

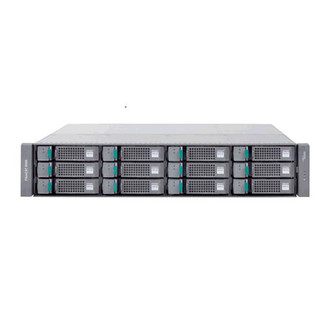

FibreCAT SX60 - Base-Unit 1, 2U, 12 Drives, RAID-Controller, 3x S-ATA II A 500 Gb, hot-plug
FibreCAT SX60
Storage systems you can simply rely on
FibreCAT are the storage systems of Fujitsu Siemens Computers. Their highlights are scalability, reliability and technical brilliance. FibreCAT stands for the close integration and the smooth interaction of servers and storage systems. The innovative FibreCAT SX systems have been designed for quality, availability and user friendliness. They are very versatile and come at a very affordable price. FibreCAT SX systems support open, heterogeneous environments.
FibreCAT SX60
The FibreCAT SX60 is the perfect system for small and medium sized companies.
It offers up to 18TB of storage capacity with 1-2 enclosures with up to 12 disks each (either 250GB, 500GB or 750 GB). Optionally the system can be equipped with a second RAIDController. The FibreCAT SX60 offers enterprise class reliability. All this comes at a very affordable price. All critical components (RAID controllers – in the case of dual-controllersystems, fans, power supplies, disks) are redundant and can be swapped during operations. FibreCap™ technology protects RAID controller cache in case of power failure.
The FibreCAT SX60 is a fast storage system. This comes from brand new 4Gbit per second Fibre Channel technology and FibreCache™, which uses a high performance interconnect to synchronize RAID controller caches directly. The FibreCAT SX60 can be set up quickly and easily.
Key Features
- Redundant RAID controllers, fans and power supplies that are hot swappable. FibreCap uses capacitor technology instead of batteries
- to protect RAID controller cache during power outages. This permits the array to return to high performance mode within minutes following restore versus hours
- A vast number of RAID levels
- FibreCache is a high performance interconnect that keeps RAID controller caches synchronized
- 4 Gigabit per second Fibre Channel technology
- SATA II disk drives
- Preloaded management software with intuitive web interface
- Integrated with Microsoft Virtual Disk Services (VDS)
- For heterogeneous environments and for PRIMERGY
- Perfect for many scenarios (storage consolidation, clustering, tiered storage, backup-to-disk, VMware, etc.)
- Build-in snapshots as a standard
- Integration with Windows Volume Copy Shadow Services (VSS)
