Storage
| Hot-swap drive bays |
Y |
| Track to track seek time (read/write) |
11 ms |
| Hard drive speed |
7200 RPM |
| Total installed storage capacity |
2000 GB |
| Storage drive capacity |
10000 GB |
| Number of storage drives installed |
2 |
Other features
| Link/Act LED |
Y |
| RAID controller type |
1 Gb |
| Connectivity LEDs |
Y |
| Host interface |
RS232 |
| Maximum storage capacity (incl. expansion enclosures) |
56 TB |
| Networking features |
Gigabit Ethernet |
Performance
| Noise level |
47 dB |
| Management protocols |
SNMP |
| Web-based management |
Y |
Additionally
| Ethernet LAN (RJ-45) ports quantity |
2 |
FibreCAT SX80 iSCSI, 2TB, 2U, 12 Drives, SATA II, RAID 0/1/10/3/5/50/6, SNMP, Gigabit Ethernet, RS232

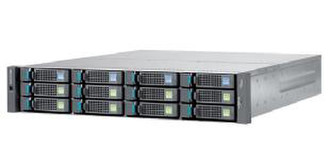

FibreCAT SX80 iSCSI
The FibreCAT SX80 iSCSI is the perfect system for the data centre. It offers up to 56 TB of storage capacity with 1-5 enclosures with up to 56 disks (SATA-II or SAS). Optionally the system can be
equipped with a second iSCSI RAID controller. The FibreCAT SX80 iSCSI offers enterprise class reliability as well as snapshot functionality. All this comes at a very affordable price. All critical components (RAID controller – in the case of dualcontroller-systems, fans, power supplies, disks) are redundant and can be replaced during operations. FibreCap™ technology protects the RAID controller cache in case of power failure. The FibreCAT SX80 iSCSI is a fast storage system. This comes from the Gigabit Ethernet technology, the fast 15k rpm SAS disks, as well as from FibreCache™, which uses a high performance interconnect to synchronize RAID controller caches directly.
- Redundant RAID controllers, fans and power supplies that are hot swappable;
- FibreCap uses capacitor technology instead of batteries to protect RAID controller cache during power outages. This permits the array to return to high performance mode within minutes following restore versus hours;
- A vast number of RAID levels.
- FibreCache is a high performance interconnect that keeps RAID controller caches synchronized;
- Gigabit Ethernet technology;
- SATA II and 15K rpm SAS disk drives.
- Preloaded management software with intuitive web interface;
- Integrated with Microsoft Virtual Disk Services (VDS).
- For heterogeneous environments and for PRIMERGY, PRIMEPOWER and PRIMEQUEST;
- Perfect for many scenarios (storage consolidation, clustering, tiered storage, backup-to-disk, VMware, etc.).
- 4 build-in snapshots as a standard;
- Possibility to upgrade from 4 to 32 snapshots;
- Integration withWindows Volume Copy Shadow Services (VSS).
- iSCSI boot – only with SAS disks released.
