Ports & interfaces
| Serial ports quantity |
2 |
| CardBus PCMCIA slot type |
N |
| SmartCard slot |
N |
| PS/2 ports quantity |
2 |
| Headphone outputs |
1 |
| S/PDIF out port |
N |
| Microphone in |
Y |
| DVI-I ports quantity |
1 |
| DC-in jack |
N |
Graphics
| Maximum graphics adapter memory |
256 MB |
| Discrete graphics adapter model |
N |
Video
| On-board graphics adapter |
Y |
Memory
| Memory clock speed |
667 MHz |
| Internal memory type |
DDR2-SDRAM |
| Memory slots |
1x SO-DIMM |
| Maximum internal memory |
2 GB |
| Internal memory |
1 GB |
Processor
| Processor front side bus |
1600 MHz |
| L2 cache |
0.25 MB |
| Processor cores |
1 |
| Processor frequency |
1 GHz |
Audio
| Audio system |
Realtek ALC262 |
Storage
| Compatible memory cards |
CF |
| Total storage capacity |
1 GB |
| Card reader integrated |
Y |
| Storage media |
Flash |
Other features
| Optical drive type |
N |
| Supported network protocols |
TCP/IP, DNS, DHCP, PTP |
| Compliance industry standards |
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab |
| Networking features |
Gigabyte Ethernet |
| Power supply type |
AC |
Additionally
| Chipset |
AMD M690E |
| Graphics |
Radeon X1250 |
| Ethernet LAN connection |
Y |
| Ethernet LAN (RJ-45) ports quantity |
1 |

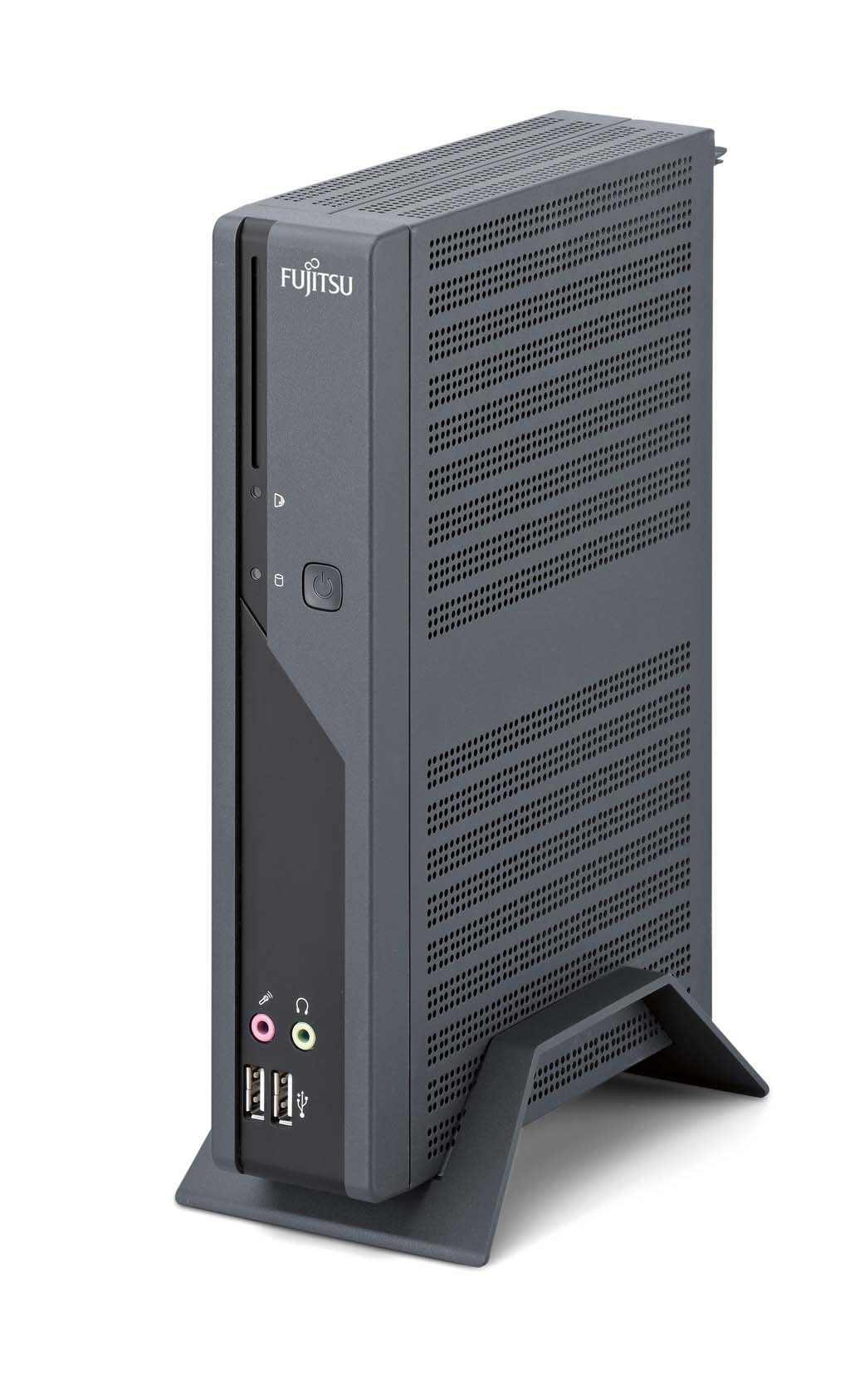

FUTRO S550-2, AMD Sempron 200U (1 GHz, 256KB L2, 1600MHz FSB), 1GB DDR2, CF 1GB IDE HDD (80x), AMD Radeon X1250 256MB, Gigabyte Ethernet, DVI-I
Expandable thin client
This small but powerful thin client is your ideal client for server-based computing. No matter if used with RDP or ICA protocol, as thin client for Windows terminal services or as Java based network terminal, FUTRO S Series always helps you to minimize the Total Cost of Owernership. Low power consumption, no fans and rotating drives turn the FUTRO S Series into a very reliable and silent thin client.
SPECIAL FEATURES
- FUTRO S550: Freely configurable and expandable through integrated low profile PCI slot
- Ready for Virtual Workplace solutions
- Integrated SmartCard reader (FUTRO S550)
- Dual monitoring optional
- AMD Sempron™ processors
