Bandwidth
| Supported data transfer rates |
10, 100, 1000Mbit/s |
Other features
| Link/Act LED |
Y |
| Compliance industry standards |
IEEE 802.3ad, IEEE 802.1Q, IEEE 802.3/z/ab/u/x, IEEE 802.1p, TCP |
Ports & interfaces
| Host interface |
PCI-E |
| Internal |
Y |
Protocols
| Management protocols |
WfM, WMI, ACPI, RIS |
Additionally
| Transfer rate (Mbps) |
1000 Mbit/s |
| Ethernet LAN connection |
Y |
| Wireless technologies |
Wired |

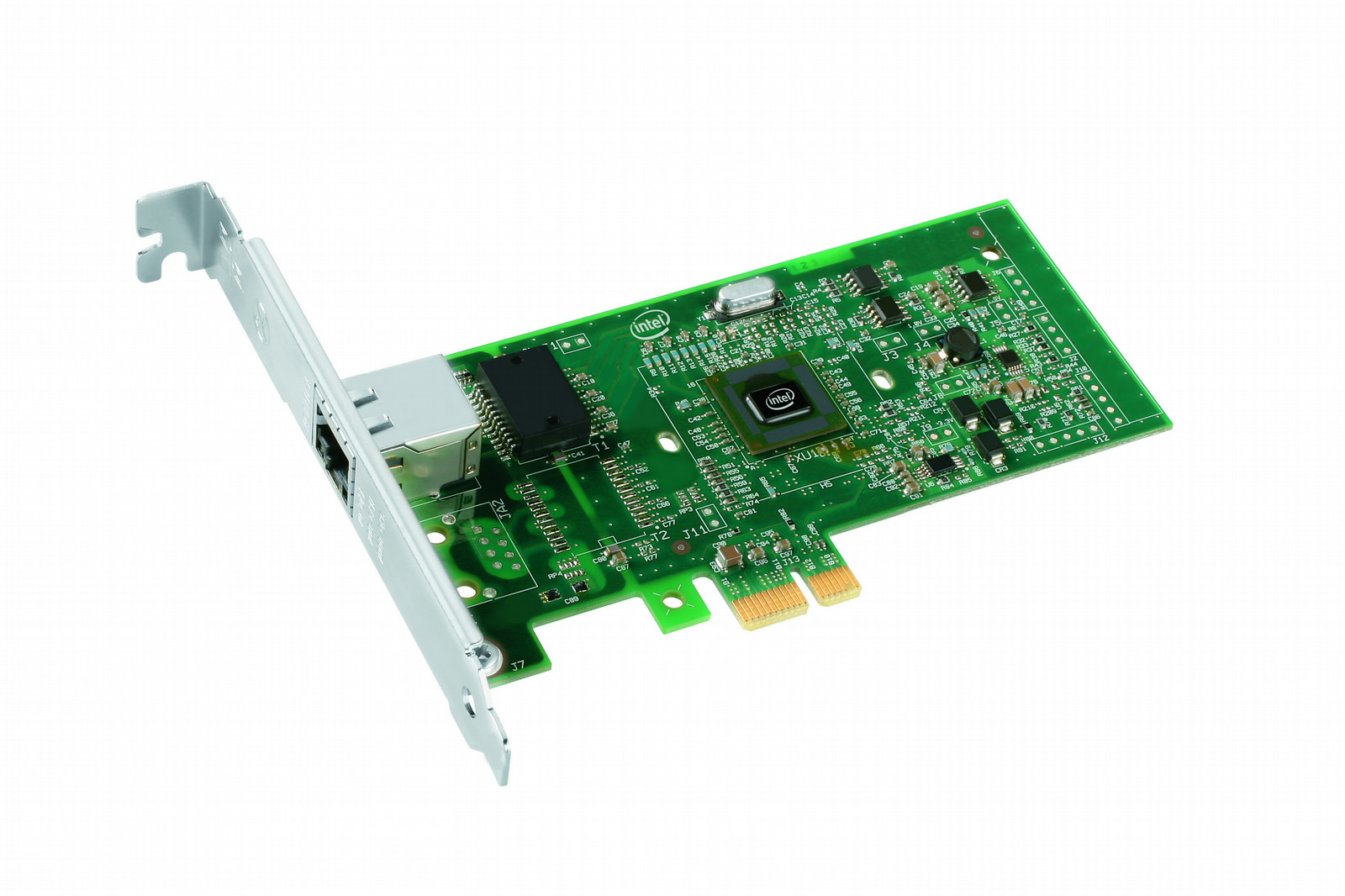

Intel PRO/1000 PT Server Adapter, 1x RJ-45, 10BASE-T/100BASE-TX/1000BASE-T
he Intel® PRO/1000 PT Server Adapter provides the dedicated input/output (I/O) bandwidth of PCIe, without bus sharing, for Gigabit Ethernet connectivity in Category-5 networks. The Intel PRO/1000 PT Server Adapter is designed to provide high performance in multi-processor systems by efficiently balancing network loads across multiple Central Processing Units (CPUs) when used with receive-side scaling from Microsoft or Scalable I/O on Linux. It also features 10/100/1000 Mbps self-configuration for compatibility with mixed-speed network devices.
For easy installation and management, all Intel® PRO Network Connections are supported by Intel® PRO Intelligent Install and the new Intel® PROSet Utility for Microsoft Device Manager. Intel PROSet simplifies adapter installation and gives you point-and-click power to configure and manage all your Intel PRO Network Connections for connectivity you can count on.
High-performance, self-configuring 10/100/1000 Mbps connection for PCI Express slots
Multi-Gigabit scalability and increased uptime through advanced server features
Optional low-profile bracket included for high-density, rack-mounted servers
