Technical details
| Data transfer rate |
3 Gbit/s |
| I/O ports |
4 x Serial ATA-300/SAS (int.)\n4 x Serial ATA-300/SAS (ext.) |
| Channels quantity |
8 channels |
| RAID controller type |
RAID 0, RAID 1, RAID 10, JBOD, RAID 1E |
| Host interface |
PCI Express x8 |
Ports & interfaces
| Controller interface type |
Serial ATA-300 / SAS |

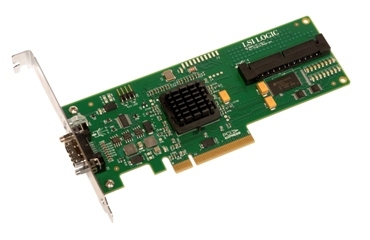

LSI Logic SAS3442E-R - Storage controller (RAID) - 8 Channel - SATA-300 / SAS - 300 MBps - RAID 0, 1, 10, JBOD, 1E - PCI Express x8
The LSI SAS3442E-R four-port internal/four-port external SAS/SATA PCI Express storage adapter provides 300 Mb/s bandwidth (600 Mb/s, full duplex) on each port for combined throughput of up to 2.4 Gb/s. The storage adapter supports multi-volume OS independent Integrated RAID 0, 1, 1E and 10E without the need for special drivers. The SAS3442E-R features PCI Express connectivity, removing the host bus bottleneck from th…Complete texte parallel PCI buses.
