Storage
| Hard drive interface |
Serial Attached SCSI (SAS) |
| Hot-swap |
Y |
| Hard drive size |
2.5 " |
Processor
| Maximum internal memory supported by processor |
144 GB |
| Processor frequency |
2.26 GHz |
| Stepping |
D0 |
| Processor cores |
4 |
| Processor system type |
DP |
| Processor operating modes |
64-bit |
| Embedded options available |
N |
| FSB Parity |
N |
| Number of Processing Die Transistors |
731 M |
| Conflict Free processor |
N |
| Memory channels supported by processor |
Triple |
| Memory bandwidth supported by processor (max) |
25.6 GB/s |
| Memory clock speeds supported by processor |
1066, 800 MHz |
| Processor cache type |
Smart Cache |
| Processor code |
SLBFD |
| Physical Address Extension (PAE) |
40 bit |
| Thermal Monitoring Technologies |
N |
| Idle States |
Y |
| Execute Disable Bit |
Y |
| Number of QPI links |
2 |
| Processor boost frequency |
2.53 GHz |
| Processor cache |
8 MB |
| Number of processors installed |
1 |
| Thermal Design Power (TDP) |
80 W |
| CPU multiplier (bus/core ratio) |
17 |
| Processor lithography |
45 nm |
| Processor package size |
42.5 mm |
| ECC supported by processor |
Y |
| Tcase |
72 °C |
| Bus type |
QPI |
| Memory types supported by processor |
DDR3-SDRAM |
Processor special features
| Intel Clear Video Technology for MID |
N |
| Intel® My WiFi Technology (Intel® MWT) |
N |
| Intel Enhanced Halt State |
Y |
| Intel Hyper-Threading Technology |
Y |
| Intel® Anti-Theft Technology (Intel® AT) |
N |
| Intel® Smart Cache |
Y |
| Intel Virtualization Technology for Directed I/O (VT-d) |
Y |
| CPU configuration (max) |
2 |
| Intel Dual Display Capable Technology |
N |
| Intel Clear Video Technology |
N |
| Intel 64 |
Y |
| Intel® Insider™ |
N |
| Intel® Quick Sync Video Technology |
N |
| Processor ARK ID |
40200 |
| Intel Virtualization Technology (VT-x) |
Y |
| Intel Trusted Execution Technology |
N |
| Intel Flex Memory Access |
N |
| Intel Fast Memory Access |
N |
| Intel Rapid Storage Technology |
N |
| Intel® Turbo Boost Technology |
Y |
| Intel® Wireless Display (Intel® WiDi) |
N |
| Intel Demand Based Switching |
Y |
| Enhanced Intel SpeedStep Technology |
Y |
| Intel FDI Technology |
N |
| Intel VT-x with Extended Page Tables (EPT) |
Y |
| Intel vPro Technology |
N |
| Intel® Clear Video HD Technology (Intel® CVT HD) |
N |
Memory
| Maximum internal memory |
96 GB |
| Memory slots |
12 |
| Internal memory type |
DDR3-SDRAM |
| Memory clock speed |
1066 MHz |
| ECC |
Y |
| Internal memory |
2 GB |
Other features
| Mac compatibility |
N |
| DVD read speed |
8 x |
| DVD interface type |
SATA |
| CD read speed |
24 x |
| Acoustic pressure emissions |
49 dB |
| Number of discs |
6 discs |
Expansion slots
| PCI Express x4 slots |
1 |
| PCI Express x8 slots |
2 |
Ports & interfaces
| Serial ports quantity |
1 |
| VGA (D-Sub) ports quantity |
2 |
Design
| Optical drive type |
DVD Super Multi |
| Chassis type |
Rack (1U) |
Networking
| Networking features |
Gigabit Ethernet |
Additionally
| Processing die size |
263 mm² |
| InTru™ 3D Technology |
N |
| Intel AES New Instructions |
N |
| System bus data transfer rate |
5.86 GT/s |
| Ethernet LAN (RJ-45) ports quantity |
3 |

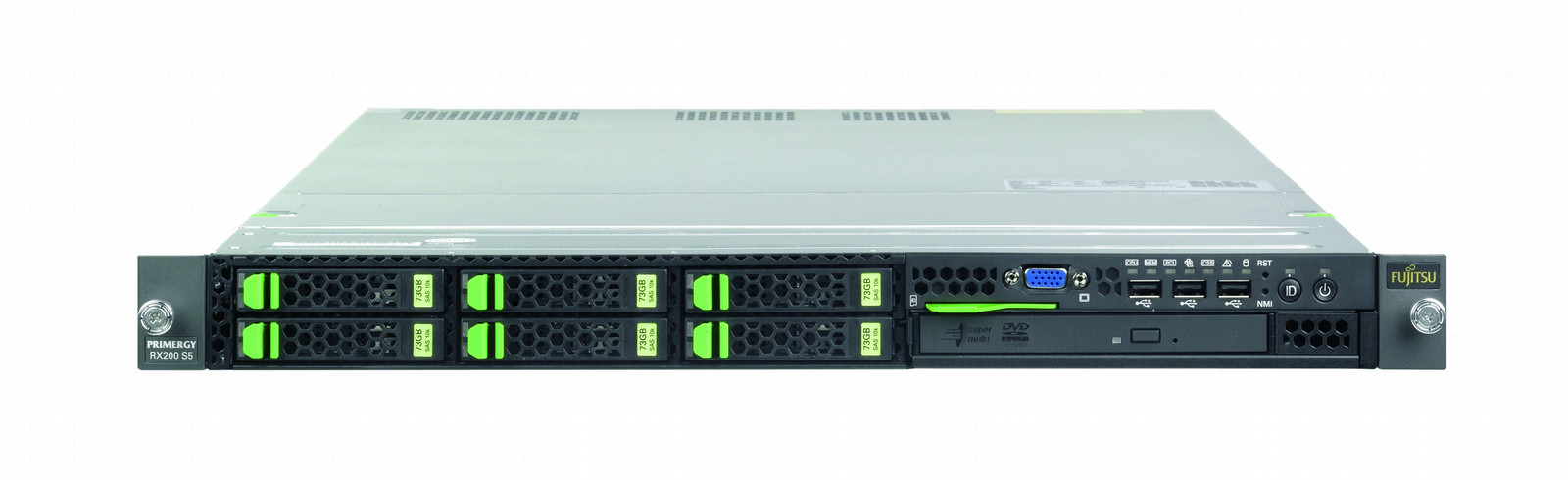

PRIMERGY RX200 S5, Rack 1U, Intel Xeon E5504 (2.26GHz, 4MB, 4.80GT/s), 2GB 1066MHz DDR3 ECC RAM, Gigabit Ethernet, no HDD
RX200 – maximum productivity @ highest efficiency
Get more for less with regard to energy efficiency in data centers: more performance, enhanced extendibility and reliability combined with a comprehensively improved ratio of performance to power – offered now by the new RX200 requiring only 1 U rack space.
RX200 solves these burning issues: energy consumption and ventilation in data centers. Its innovative PRIMERGY Cool-safe™ system design provides the right answers. Hot-pluggable, redundant power supply units with increased 89% efficiency ensure efficient energy utilization. Load dependant, the sensor-controlled, hot-pluggable and redundant fans serve to maintain an optimal temperature in the server at all times; all supported by an innovative, extremely air-permeable honeycomb design and barrier-free, internal air-flow channels. Result: a sustainable high server performance, long life components and fewer data center cooling requirements. The integrated ServerView Power Management enables the monitoring and active planning of maximum consumption loads, thus ensuring cost efficiency. Cool-safe™ provides the security for maximum utilization of the new Intel® Xeon® Dual-Core, Quad-Core and Turbo-Quad-Core processor generation’s full performance and the server’s high capacity memory and hard disk configurations.
Key features
-EPA compliant, highly efficient power supply units; Sensor-controlled fan management; Power consumption management.
-Memory mirroring and sparing option; Hot-plug redundant power supplies and fans, hot-plug hard disks….
-Integrated iRMC S2 (Remote Management Controller) plus Advanced Pack
Modular RAID for levels 0, 1, 5, 6; Individual service packages;
-Dual-, Quad- and Turbo Quad-Core Intel® Xeon® 5500 series up to 8 MB TLC; Up to 96 GB state-of-the-art DDR3 main memory; 2 free PCIe Gen2 Slots, doubled I/O throughput, 2 x 1 Gb Ethernet LAN with TCP/IP accelerator; Up to 8 x 2.5 hot-plug SAS and SATA hard disks in 1U;
Certification for Hyper-V, VMware, Xen Hypervisor.
-ServerView Suite - Proven tools for the efficient management of physical and virtual resources throughout the entire lifecycle: perfect installation - stable operations – secure updates - exact (remote) maintenance – easy integration in specific corporate management solutions.
Benefits
-High performance for efficient energy utilization; Fan management as required saving energy and reducing noise levels; Individually definable power consumption limits.
-High availability and reliability; Security level for each application scenario; Permanently high performance available, longer.
-lifespan for components used, optimal performance per watt ratio; Easy, fast service access from anywhere ensuring reliable operations; Low-priced, powerful data security; Tailor-made service for the respective requirements.
-More virtual machines und applications can be used on one server;
Higher application loads and extended usage options; Doubled I/O bandwidth so that SAN and network loads achieve optimal throughput; More than 2 TB of low-priced internal hard disk storage; Problem-free usage for market-relevant virtualization solutions.
-The key to high-level IT benefits and reduced operational and service costs: greater reliability, lower downtimes and improved service quality.
