Processor special features
| Intel vPro Technology |
N |
| Intel® Clear Video HD Technology (Intel® CVT HD) |
N |
| Intel® Wireless Display (Intel® WiDi) |
N |
| Intel Demand Based Switching |
Y |
| Enhanced Intel SpeedStep Technology |
Y |
| Intel FDI Technology |
N |
| Intel VT-x with Extended Page Tables (EPT) |
Y |
| Intel Clear Video Technology for MID |
N |
| Intel® My WiFi Technology (Intel® MWT) |
N |
| Intel Enhanced Halt State |
Y |
| Intel Hyper-Threading Technology |
Y |
| Intel® Anti-Theft Technology (Intel® AT) |
N |
| Intel® Smart Cache |
Y |
| Intel Virtualization Technology for Directed I/O (VT-d) |
Y |
| CPU configuration (max) |
2 |
| Intel Dual Display Capable Technology |
N |
| Intel Clear Video Technology |
N |
| Intel 64 |
Y |
| Intel® Insider™ |
N |
| Intel® Quick Sync Video Technology |
N |
| Processor ARK ID |
47921 |
| Intel Virtualization Technology (VT-x) |
Y |
| Intel Trusted Execution Technology |
Y |
| Intel Flex Memory Access |
N |
| Intel Fast Memory Access |
N |
| Intel Rapid Storage Technology |
N |
| Intel® Turbo Boost Technology |
Y |
Processor
| Stepping |
B1 |
| Bus type |
QPI |
| Memory types supported by processor |
DDR3-SDRAM |
| Supported instruction sets |
SSE4.2 |
| ECC supported by processor |
Y |
| Tcase |
81.3 °C |
| Maximum internal memory supported by processor |
288 GB |
| Processor frequency |
2.8 GHz |
| Processor cores |
6 |
| Processor operating modes |
64-bit |
| Embedded options available |
N |
| FSB Parity |
N |
| Conflict Free processor |
N |
| Physical Address Extension (PAE) |
Y |
| Memory channels supported by processor |
Triple |
| Memory bandwidth supported by processor (max) |
32 GB/s |
| Memory clock speeds supported by processor |
1333, 1066, 800 MHz |
| Processor cache type |
L3 |
| Processor code |
SLBV6 |
| Physical Address Extension (PAE) |
40 bit |
| Thermal Monitoring Technologies |
N |
| Idle States |
Y |
| Execute Disable Bit |
Y |
| Number of QPI links |
2 |
| Processor boost frequency |
3.2 GHz |
| Processor cache |
12 MB |
| Number of processors installed |
2 |
| Maximum number of SMP processors |
2 |
| Thermal Design Power (TDP) |
95 W |
| CPU multiplier (bus/core ratio) |
21 |
| Processor lithography |
32 nm |
| Processor package size |
42.5X45 mm |
Ports & interfaces
| VGA (D-Sub) ports quantity |
2 |
| Serial ports quantity |
2 |
Power
| Power supply |
800 W |
| Number of power supply units |
1 |
Networking
| Networking features |
Gigabit Ethernet |
Storage
| RAID support |
Y |
| Hot-swap |
Y |
| Hard drive size |
2.5 " |
Memory
| Maximum internal memory |
192 GB |
| Memory slots |
18x DIMM |
| Memory clock speed |
1333 MHz |
| ECC |
Y |
| Internal memory |
12 GB |
| Internal memory type |
DDR3-SDRAM |
Other features
| Ventilation fan(s) |
5 |
| Mac compatibility |
N |
| Server system board BIOS |
SMBIOS V2.4 |
Performance
| Remote administration |
iRMC S2 |
| Noise level |
45 dB |
Expansion slots
| PCI Express x4 slots |
5 |
| PCI Express x8 slots |
2 |
Graphics
| Maximum graphics adapter memory |
32 MB |
Design
| Chassis type |
Rack (2U) |
| Optical drive type |
DVD Super Multi |
Additionally
| System bus data transfer rate |
6.40 GT/s |
| Intel AES New Instructions |
Y |
| Ethernet LAN connection |
Y |
| Chipset |
Intel 5520 |
| InTru™ 3D Technology |
N |
| Ethernet LAN (RJ-45) ports quantity |
3 |

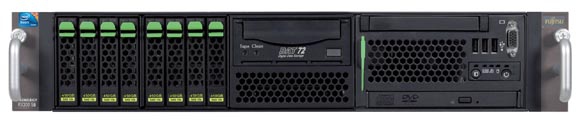

PRIMERGY RX300 S6, 8x 2.5" SAS/SATA, 2x Intel Xeon X5660 (6C/12T, 2.80 GHz, SLC: 4 x 256 KB, TLC: 12 MB, Turbo: 2/2/2/2/3/3, 6.4 GT/s, Mem bus: 1333 MHz, 95 W), 12GB (6x 2GB) DDR3-1333MHz ECC RAM, no HDD, DVD Super Multi, Gigabit Ethernet
The PRIMERGY RX300 S6 is a 2U rack server which has been optimized for virtualization purposes. It provides high, scalable I/O performance, extensive memory options, support for major hypervisor products and top performance with latest Intel® technology. In other words: 7xPCIe Gen2 prevent I/O bottlenecks, up to 192 GB of memory allow for optimal sizing of virtual environments and latest Intel® Xeon® processor 5600 series CPUs deliver top performance.
With its Cool-safe™ design elements like optimized cooling of the system and highly efficient power supplies the PRIMERGY RX300 S6 is the right system to face Green IT challenges.
This 2U powerhouse is also an excellent choice for business-critical processes or heavy-duty applications such as databases.
Key features
- Intel® Xeon® processor 5600 series with up to 6 core operation (up to 12 threads per socket with Hyper Threading), 12 MB shared cache, Internal Memory Management Unit (3 channels of DDR3 memory) and Intel® Turbo Boost Optimization
- Highly efficient power supply units with 92% efficiency (EPA compliant) and Cool-safe™ system design
- up to 192 GB state-of the art DDR3 main memory, 7 PCIe Gen 2, SAS 2.0 support, support for latest virtualization technology
- Hot-plug and redundant fans and power supplies, enhanced memory protection levels, modular RAID 5/6 option
- ServerView Suite - Proven tools for the efficient management of physical and virtual resources throughout the entire lifecycle: perfect installation - stable operations - secure updates - exact maintenance - easy integration into third party environments
Benefits
- Higher overall productivity thanks to excellent CPU performance.
- Energy-efficient operations reduce stress not only for the data center cooling system but also for the budget
- Provides the performance and scalability to meet the demands of virtualized environments and all other demanding application areas
- System reliability and highly available data for each application scenario
- The key to high-level IT benefits and reduced operational and service costs: greater reliability, lower downtimes and improved service quality
