Memory
| Memory slots |
4 |
| Memory clock speed |
800 MHz |
| ECC |
Y |
| Internal memory |
1 GB |
| Internal memory type |
DDR2-SDRAM |
| Maximum internal memory |
8 GB |
Processor special features
| Intel Enhanced Halt State |
N |
| Intel Hyper-Threading Technology |
N |
| Intel® Anti-Theft Technology (Intel® AT) |
N |
| Intel Virtualization Technology for Directed I/O (VT-d) |
N |
| Intel Dual Display Capable Technology |
N |
| Intel Clear Video Technology |
N |
| Intel 64 |
Y |
| Intel® Insider™ |
N |
| Intel® Quick Sync Video Technology |
N |
| Processor ARK ID |
32709 |
| Intel® Turbo Boost Technology |
N |
| Intel Trusted Execution Technology |
N |
| Intel Flex Memory Access |
N |
| Intel Fast Memory Access |
N |
| Intel Rapid Storage Technology |
N |
| Intel® Clear Video HD Technology (Intel® CVT HD) |
N |
| Intel® Wireless Display (Intel® WiDi) |
N |
| Intel Demand Based Switching |
N |
| Enhanced Intel SpeedStep Technology |
Y |
| Intel FDI Technology |
N |
| Intel VT-x with Extended Page Tables (EPT) |
N |
| Intel vPro Technology |
N |
| Intel Clear Video Technology for MID |
N |
| Intel® My WiFi Technology (Intel® MWT) |
N |
Processor
| Processor operating modes |
64-bit |
| Embedded options available |
N |
| FSB Parity |
N |
| Number of Processing Die Transistors |
410 M |
| Processor front side bus |
1333 MHz |
| Conflict Free processor |
N |
| Processor cache type |
L2 |
| Processor codename |
Wolfdale |
| Processor code |
SLGP9 |
| Processor cores |
2 |
| CPU multiplier (bus/core ratio) |
9 |
| Thermal Monitoring Technologies |
N |
| Execute Disable Bit |
Y |
| Processor cache |
6 MB |
| Number of processors installed |
1 |
| Maximum number of SMP processors |
1 |
| Thermal Design Power (TDP) |
45 W |
| Processor lithography |
45 nm |
| Bus type |
FSB |
| ECC supported by processor |
N |
| Tcase |
78.65 °C |
| Processor frequency |
3 GHz |
| Stepping |
E0 |
Other features
| DVD read speed |
16 x |
| Drive bays |
3x 5.25", 1x 3.5", 6/8x 3.5" |
| CD read speed |
48 x |
Design
| Chassis type |
Tower |
| Optical drive type |
DVD-ROM |
Expansion slots
| PCI Express x4 slots |
1 |
| PCI Express x8 slots |
2 |
| PCI slots |
3 |
Ports & interfaces
| Serial ports quantity |
1 |
| VGA (D-Sub) ports quantity |
1 |
| PS/2 ports quantity |
2 |
Networking
| Networking features |
Gigabit Ethernet |
Additionally
| Processing die size |
107 mm² |
| Chipset |
Intel 3210 |
| InTru™ 3D Technology |
N |
| Ethernet LAN (RJ-45) ports quantity |
2 |
| Intel AES New Instructions |
N |

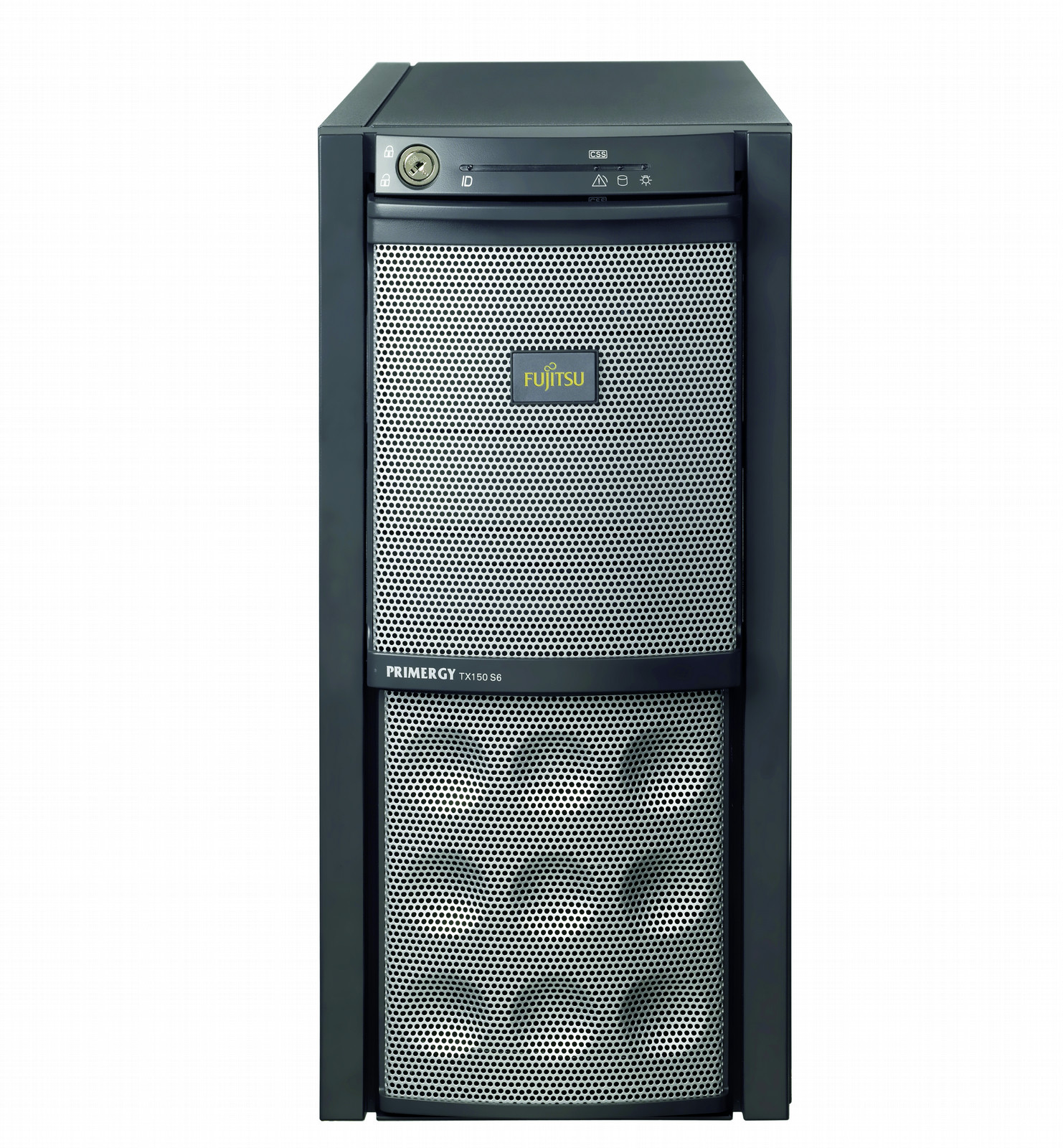

PRIMERGY TX150 S6, Intel Xeon L3110 (3.00GHz, 6MB, 1333MHz), 1GB (1x 1GB) 800MHz DDR2 RAM, Gigabit Ethernet, no HDD, Standard PSU, DVD-ROM
Low complexity, great data safety
The PRIMERGY TX150 S6 tower server delivers new levels of energy efficient performance with Intel® Xeon® processor 3200 series. This is achieved with a 1333 MHz FSB clock rate and with Intel’s new state-of-the-art multi-core optimized microarchitecture.
A server with this processor proves to be a particularly powerful system that can respond quickly to your requirements. Enhance your efficiency when it comes to simultaneous execution of multiple applications and downloading mass data. The processor with the Intel® 3100 chipset also supports virtualization and EM64 technology. This sixth-generation tower server combines high performance with low noise. The 3.5-inch SAS or SATA or 2.5-inch SAS hot-plug hard disks can be replaced easily while the server is in operation. High data security is offered thanks to built-in RAID 1 functionality and an optional ibutton RAID 5 implementation for SATA or a modular RAID for SAS configurations. The standard iRMC S2 (integrated Remote Management Controller) offers enhanced system management and graphics based on IPMI 2.0 technology, and the redundant power supply module further increases operational reliability.
Key features
-ECC, built-in RAID 1 functionality and optional ibutton RAID 5 for SATA or modular RAID for SAS configurations.
-Hot-plug HDD infrastructure (standard).
-Hot-plug redundant PSU (optional).
-ServerView Local Service Panel (LSP) optional for customer`s Service on its own.
-Quad-Core Intel® Xeon® Processor , provides four execution cores in one physical processor with less power consumption, energy efficient Intel Celeron processor even more power saving.
-Up to 4x SATA or 4 (6)x SAS/SATA 3.5-inch, up to 8x 2.5-inch SAS hard disks, 6 PCI/PCIe slots, (5 with SAS), 1x Gbit LAN plus extra Service LAN for iRMC S2.
Benefits
-High security against physical loss of data.
-Tailor made availability, offers the security level which is recommended by your individual application demands.
-Allowing the platform to do more in less time, IT departments can consolidate applications and more effectively employ the server with less power consumption.
-Expandability options for further growth.
