Processor special features
| Intel Flex Memory Access |
N |
| Intel Fast Memory Access |
N |
| Intel Rapid Storage Technology |
N |
| Intel Virtualization Technology (VT-x) |
Y |
| Intel Trusted Execution Technology |
N |
| Processor ARK ID |
37096 |
| Intel® Insider™ |
N |
| Intel® Quick Sync Video Technology |
N |
| Intel 64 |
Y |
| Intel Hyper-Threading Technology |
N |
| Intel® Anti-Theft Technology (Intel® AT) |
N |
| Intel® Smart Cache |
Y |
| Intel Virtualization Technology for Directed I/O (VT-d) |
Y |
| CPU configuration (max) |
2 |
| Intel Dual Display Capable Technology |
N |
| Intel Clear Video Technology |
N |
| Intel vPro Technology |
N |
| Intel® Clear Video HD Technology (Intel® CVT HD) |
N |
| Intel® Wireless Display (Intel® WiDi) |
N |
| Intel Demand Based Switching |
Y |
| Enhanced Intel SpeedStep Technology |
Y |
| Intel FDI Technology |
N |
| Intel VT-x with Extended Page Tables (EPT) |
Y |
| Intel Clear Video Technology for MID |
N |
| Intel® My WiFi Technology (Intel® MWT) |
N |
| Intel Enhanced Halt State |
Y |
| Intel® Turbo Boost Technology |
N |
Processor
| Number of QPI links |
2 |
| Processor cache |
4 MB |
| Number of processors installed |
1 |
| Physical Address Extension (PAE) |
40 bit |
| Thermal Monitoring Technologies |
N |
| Idle States |
Y |
| Execute Disable Bit |
Y |
| Thermal Design Power (TDP) |
80 W |
| Processor cache type |
Smart Cache |
| Processor code |
SLBF8 |
| Processor package size |
42.5 mm |
| Memory channels supported by processor |
Triple |
| Memory bandwidth supported by processor (max) |
19.2 GB/s |
| Memory clock speeds supported by processor |
800 MHz |
| Conflict Free processor |
N |
| Physical Address Extension (PAE) |
Y |
| Embedded options available |
N |
| FSB Parity |
N |
| Processor system type |
DP |
| Maximum internal memory supported by processor |
144 GB |
| Processor frequency |
2.13 GHz |
| ECC supported by processor |
Y |
| Tcase |
76 °C |
| Bus type |
QPI |
| Memory types supported by processor |
DDR3-SDRAM |
| Stepping |
D0 |
| Processor operating modes |
64-bit |
| Processor cores |
4 |
| Maximum number of SMP processors |
2 |
| CPU multiplier (bus/core ratio) |
16 |
| Processor lithography |
45 nm |
Other features
| Server system board BIOS |
SMBIOS V2.4 |
| Drive bays |
4x 3.5"/8x 2.5", 3x 5.25" |
| Ventilation fan(s) |
2 |
| Mac compatibility |
N |
Memory
| ECC |
Y |
| Memory clock speed |
1333 MHz |
| Maximum internal memory |
96 GB |
| Memory slots |
12 |
| Internal memory |
4 GB |
| Internal memory type |
DDR3-SDRAM |
Expansion slots
| PCI Express x8 slots |
2 |
| PCI slots |
1 |
Storage
| Hot-swap |
Y |
| RAID support |
Y |
Power
| Number of power supply units |
2 |
| Power supply |
700 W |
Ports & interfaces
| VGA (D-Sub) ports quantity |
1 |
| Serial ports quantity |
1 |
Networking
| Networking features |
Gigabit Ethernet |
Additionally
| InTru™ 3D Technology |
N |
| Chipset |
Intel 5500 |
| Ethernet LAN connection |
Y |
| System bus data transfer rate |
4.8 GT/s |
| Intel AES New Instructions |
N |
| Ethernet LAN (RJ-45) ports quantity |
2 |

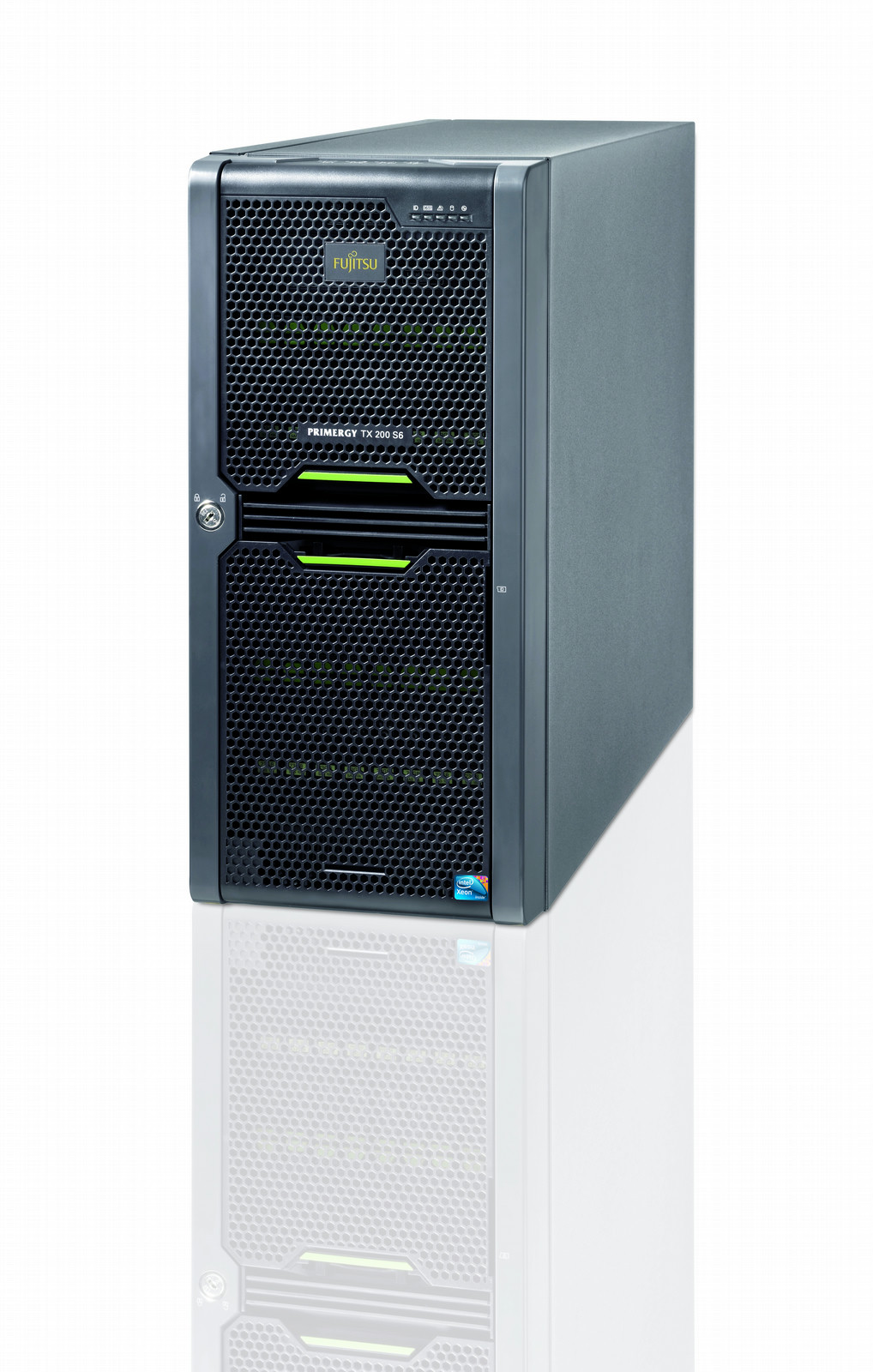

PRIMERGY TX200 S6, Tower (5U), Intel Xeon E5506 (4C/4T, 2.13GHz, SLC: 4x 256KB, TLC: 4MB, 4.8GT/s, 800MHz, 80W), 4GB DDR3 ECC 1333MHz PC3-10600 DIMM RAM, No HDD
Well-balanced price-performance
The PRIMERGY TX200 S6 is a perfect server for small or decentralized infrastructures in an attractive family design. The PRIMERGY TX200 S6 offers expandability, energy efficiency and dual processor performance.
With up to 16 2.5” hard disks, you can save on an external storage unit.
The high energy efficiency minimizes costs. Moreover, a maximum of 96GB of RAM, redundancy features, and dual-processor performance allow you to make a great start into virtualization. The PRIMERGY TX200 S6 also lends itself as a departmental, email or web server. A tower to rack conversion kit protects your investment’s lifetime. This great system strikes the right balance between price and performance.
Key features
-Intel® Xeon® processor 5600 Series with up to 6 core operation (up to 12 threads per socket with Hyper Threading), 12 MB shared cache, Internal Memory Management Unit (3 channels of DDR3 memory) and Intel® Turbo Boost Optimization.
-Up to 96GB RAM configurable in independent, mirrored, spare or performance modes.
-Hot-plug power supply with 92% efficiency (85% efficiency for standard power supply).
-Up to 4 (6 optional) 3,5” hard disks or 8 (16 optional) 2,5” SAS or SATA hard disk drives and 6 expansion slots (4 PCIe Gen 2, 1 PCIe, 1 PCI).
-Hot-plug hard disks (standard), hot-plug redundant power supply unit (optional), redundant fans (optional), ServerView Local Service Panel (LSP) (optional).
Benefits
-Higher overall productivity with leading-edge technology and the performance of up to two processors!
-Plenty of memory configurable to suit your every need: file, print, database or virtualization server.
-Save energy costs and minimize the environmental impact.
-Choose among a range of expansion variables to suit your budget and requirements.
-Tailor made availability, offering the security level you need.
