Other features
| Supported data transfer rates |
1/2/5.5/6/9/10/11/12/18/24/36/48/54/150 Mb/s |
| Logging and monitoring |
Y |
| Wireless technology |
802.11a/b/g/n |
| Transmit power |
13 - 17.5 dBmW |
| Power LED |
Y |
| Compliance industry standards |
IEEE 802.3, IEEE 802.3u, IEEE 802.3af, IEEE 802.11b/g/n |
| Networking features |
Fast Ethernet |
Performance
| Channel bandwidth |
40 MHz |
| Receiver sensitivity |
1 Mbps -91 dBm @ 2.4 GHz\n2 Mbps -90 dBm @ 2.4 GHz\n5.5 Mbps -89 dBm @ 2.4 GHz\n11 Mbps -88 dBm @ 2.4 GHz\n6 Mbps -90 dBm @ 2.4 GHz\n9 Mbps -89 dBm @ 2.4 GHz\n12 Mbps -88 dBm @ 2.4 GHz\n18 Mbps -86 dBm @ 2.4 GHz\n24 Mbps -83 dBm @ 2.4 GHz\n36 Mbps -80 dBm @ 2.4 GHz\n48 Mbps -76 dBm @ 2.4 GHz\n54 Mbps -74 dBm @ 2.4 GHz\n6 Mbps -88 dBm @ 5 GHz\n9 Mbps -87 dBm @ 5 GHz\n12 Mbps -86 dBm @ 5 GHz\n18 Mbps -84 dBm @ 5 GHz\n24 Mbps -82 dBm @ 5 GHz\n36 Mbps -78 dBm @ 5 GHz\n48 Mbps -74 dBm @ 5 GHz\n54 Mbps -73 dBm @ 5 GHz |
| VLAN support |
Y |
| 2.4 GHz |
Y |
| 5 GHz |
Y |
| Spread spectrum method |
DSSS |
| Quality of Service (QoS) support |
Y |
| Number of users |
250 user(s) |
| Modulation |
DSSS, OFDM |
| Web-based management |
Y |
| Frequency band |
2.4/5/5.8 GHz |
| Ethernet LAN data rates |
10, 100 Mbit/s |
Ports & interfaces
| Cabling technology |
10/100Base-T(X) |
| WAN connection |
Ethernet (RJ-45) |
| Interface |
RJ-45, SFP, DB-9 |
Security
| VPN support |
IPSec, PPTP, DynVPN/DynDNS |
| Security features |
NAT/PAT |
| MAC address filtering |
Y |
Protocols
| Management protocols |
MDP, SSH, HTTP, HTTPS, SNMPv1/2/3, ADP |
| DHCP client |
Y |
| DHCP server |
Y |
| Supported network protocols |
DNS, PPPoE, PPTP, GRE, L2TP, Ent-MIB, MIB-II, RTS/CTS, Telnet |
Antenna
| Antenna gain level (max) |
2 dBi |
| Antenna connector type |
RTNC |
| Antennas quantity |
3 |
| Detachable antenna(s) |
Y |
Power
| Power over Ethernet (PoE) |
Y |
Additionally
| Output power |
24V DC, 1A |
| Transfer rate (Mbps) |
300 Mbit/s |
| Ethernet LAN (RJ-45) ports quantity |
2 |
WLAN Outdoor Bridgelink Bundle, 2 x WI1065n, Outdoor, Fast Ethernet, PoE, L2TP, 2.4/5GHz, 802.11a/b/g/n/h, 2 x LAN, 1 x SFP, 3 x 2dBi, ARS, WDS, TPC, ACL, NAT/PAT, QoS, 250u, IP65, White/Red + 4 x 0.5m RTNC p-N LMR400 + 4 x Surge Arrester p-N + 2 x Mast Mount + 2 x PoE Injector + 2 x ANT-N-20-5G
WLAN Outdoor Bridgelink Bundle
Bridging of radio links in unsheltered outdoor environment

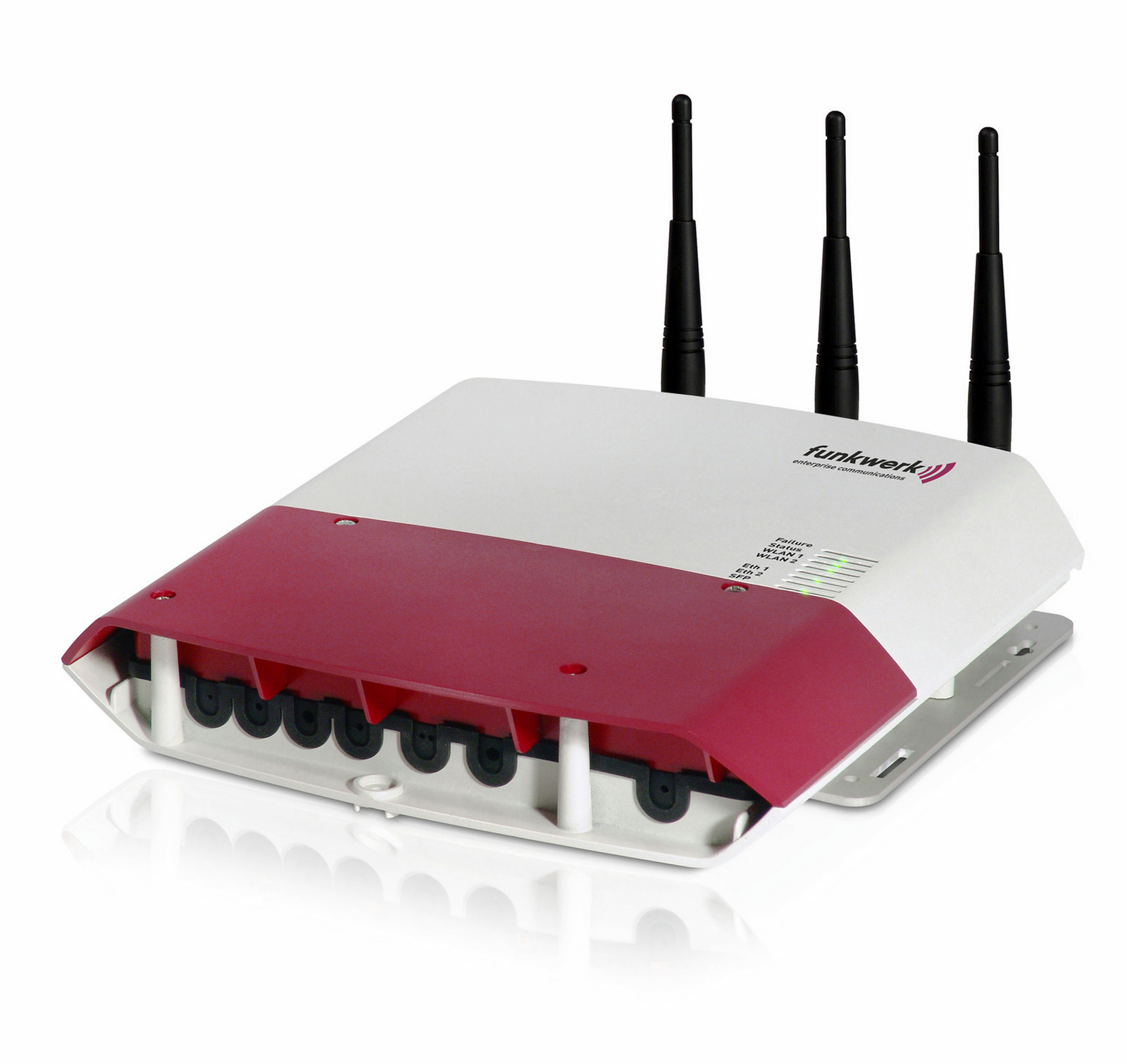

The WLAN Outdoor Bridgelink Bundle (protection class IP 65) is designed for wireless bridging of radio links in unprotected outdoor areas. The bundle includes two WI1065n units (802.11n) and all the necessary components.
The WLAN Outdoor Bridge Link Bundle “Out-of-the-Box” contains all required components to setup a radio link by using the new 802.11n technology. This outdoor bundle contains two bintec WI1065n devices, which can be mounted directly at the antenna pole. The WI1065n access points are water protected and allows operation in temperature ranges between -25° C and +65° C. The bundle contains also two PoE adapters, which enables power supply over network cable. The dual polarization antennas are transmitting the data over two streams, what leads to higher performance of the system.
The WLAN Outdoor Bridgelink Bundle is intended to build radio links up to 8 km distance.
Hints to improve the operating distance:
- Use a antenna with higher gain;
- Select 20 MHz bandwidth instead 40 MHz;
- or use only one stream.
Hints for installation:
- The link must be free from any obstacles (free line of sight). If necessary a different location must be used or the antenna height must be increased.
- The antenna connectors of the Access Point ANT1 and ANT2 are connected to the antenna. It makes no difference which antenna socket is used. The antenna connector ANT3 of the AP are not used for these application.
- The antenna or rather the antenna pole must be connected with 16 mm2 CU or more to the potential equalisation. The Surge Arrestor protect the AP and must connected to the grounding of the building with 1,5 mm2 CU or more. The Surge Arrestor must be inserted in both antenna cables. In some cases it is advisable to consult a specialist for lighting protection.
