Networking
| Supports ISDN connection |
Y |
| Number of users |
10 user(s) |
Other features
| Supported data transfer rates |
10/100 |
| Ports quantity |
4 |
| Connectivity LEDs |
4 |
| Maximum data transfer rate |
0.1 Gbit/s |
| Data transfer rate |
24 Mbit/s |
| Power supply type |
DC |
Security
| Logging and monitoring |
Y^ |
DSL features
| DSL specification |
PPPoE |
| xDSL connection type |
ADSL |
Power
| Power over Ethernet (PoE) |
N |
Protocols
| DHCP client |
Y |
| DHCP server |
Y |
Ports & interfaces
| RJ-11 ports quantity |
1 |
| DC-in jack |
Y |
Additionally
| Wireless technologies |
Wired |
| Ethernet LAN (RJ-45) ports quantity |
4 |

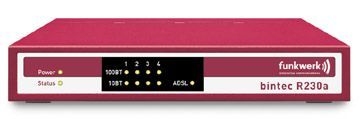

ADSL router with SIP proxy and IPSec
The bintec R230a / R230aw are the successor products of X2301 / X2301w and in addition both models offer the same feature set available in their predecessors. The bintec R230aw also includes WLAN function. A memory extension and new features in the software release for these devices transform them into flexible IP access routers with an integrated ADSL modem (Annex A) and with a 4-port switch.
ADSL2+ enables a high-performance WAN connection and allows download rates of up to 24 Mbps. The WLAN function provides for exceptional flexibility when using the routers in wireless environments. An SIP proxy regulates transparent communication to SIP providers and makes it possible to use the routers in VoIP scenarios, such as for Internet telephony.
The Application Level Gateway makes it possible for IP telephones to establish a connection to SIP providers in the LAN, without compromising the security of the WAN connection. Thus, the SIP proxy monitors the signalization process between the IP phone and the SIP provider and performs all the necessary NAT and firewall procedures dynamically for the duration of communications. It is also possible to easily configure and use several different SIP providers on the router.
