Antenna
| Antennas quantity |
4 |
| Integrated antenna |
Y |
| Antenna gain level (max) |
6 dBi |
Ports & interfaces
| WAN connection |
Ethernet (RJ-45) |
| DC-in jack |
Y |
| RS-232 interface |
N |
Performance
| Modulation |
OFDM, DSSS |
| 2.4 GHz |
Y |
| Wi-Fi Multimedia (WMM)/(WME) |
Y |
| 5 GHz |
Y |
| Auto MDI/MDI-X |
Y |
| VLAN support |
Y |
| Ethernet LAN data rates |
10, 100, 1000 Mbit/s |
| Syslog |
Y |
| Web-based management |
Y |
| Frequency band |
2.4/5 GHz |
Design
| Internal |
N |
| Cable lock slot |
Kensington |
Power
| Input voltage |
100 - 240 V |
| Power over Ethernet (PoE) |
Y |
Protocols
| Management protocols |
Telnet, SSH, HTTP, HTTPS, SNMP |
| DHCP server |
Y |
| DHCP client |
Y |
Security
| Authentication method |
RADIUS |
| MAC address filtering |
Y |
Additionally
| Transfer rate (Mbps) |
1000 Mbit/s |
| Ethernet LAN (RJ-45) ports quantity |
2 |
Business WLAN 802.11ac AP, 2.4GHz / 5GHz, 2 x Gigabit Ethernet RJ-45
Business WLAN .11ac Access Point
Budget 802.11ac Access Point with full performance support of .11ac devices, interoperable to .11n devices
The bintec W2003ac access point supports the new 802.11ac wireless standard. The dual radios allow for simultaneous operation in both the 2.4 GHz and 5 GHz frequency bands. bintec Client Management ensures that the wireless client is always able to operate at maximum speed. bintec Client Management offers a wide range of features and also ensures that the client is always connected to the access point that can provide the best performance.
MIMO 2x2 technology and the 802.11ac wireless standard allow for PHY data rates of up to 867 Mbps. The MIMO 2x2 technology with two transmission streams offers the considerable advantage of requiring less than 12.4 watts of power, enabling operation on a standard low-cost PoE infrastructure.
In addition, the MIMO 2x2 technology is an ideal match for current smartphones and tablet PCs, which frequently only support 802.11ac with MIMO 1x1. Access points with the expensive MIMO 3x3 or MIMO 4x4 technology are not able to realize their full performance potential with these types of terminal devices, which makes an access point operating on the 802.11 ac standard and MIMO 2x2 the better solution and the better value.

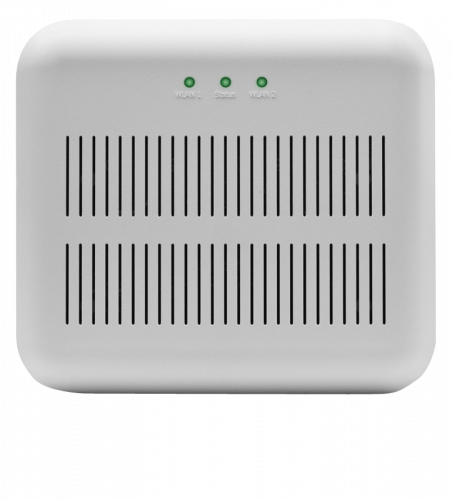

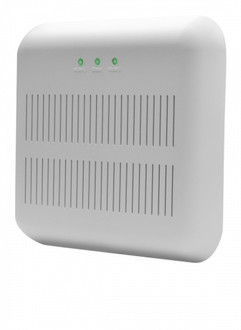

The bintec W2003ac has an unobtrusive housing with internal antennas and LEDs that turn off. The included wall and ceiling mounting bracket makes installation easy.
The access point be managed using the bintec Cloud NetManager or a locally installed bintec WLAN Controller. Using the included free WLAN Controller license, you can operate this model as a master-AP to manage a small wireless LAN with up to six access points. Of course you can also configure the W2003ac to run as a stand-alone AP. It's hard to imagine greater flexibility.
