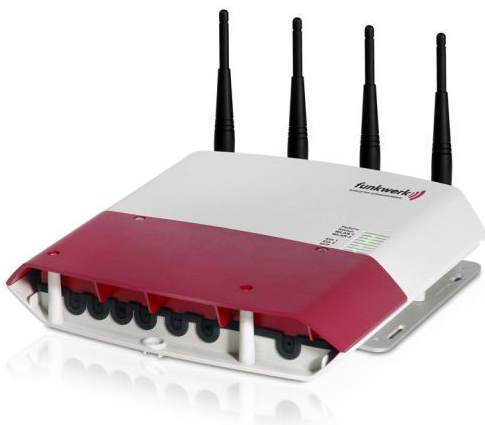

Funkwerk WI2065n 300Mbit/s Power over Ethernet (PoE) WLAN access point

802.11a/b/g/h/n WLAN, AP/Bridge/Client, 4 RTNC, 2xRJ-45, 1xSFP, 1xSeriell, 1xRelais, IP 65 The W2065n is an outdoor (IP65) 11n access point with two dual-band radio modules. It can be used for a wide range of applications such as creating line-of-site radio links and can be mounted outdoors without any additional modifications.

- Prepared for mounting directly on the mast (a mast fixture is additionally required)
- Operation permissible with up to 4000 mW transmission power*
- VPN IPsec hardware encryption
- WAN optionally via Ethernet or optical fiber cable
- Operation as fat AP or as controller based AP via bintec WLAN controller

Operation with 4000 mW EiRP is permissible in Germany and Great Britain in the 5.8 GHz band and requires registration or licensing from the regulatory authorities. It is possible to attain 4000 mW EiRP using the right antennas.

The bintec WIx065n series devices are industry-proof outdoor access points with protection class IP65, which are versatile in their use and can be installed outdoors without additional measures. According to the model, the devices are equipped with one or two IEEE 802.11agbn standard wireless modules. PHY rates of up to 300 Mbps per wireless module can be achieved as a result.
WIx065n as a high-performance bridgelink
The WI1065n is ideally suited for setting up high-performance line-of-sight radio links. Installation directly on the mast enables the use of very short, low-loss antenna cables thus improving the already very good performance of the devices. Using dual-polarized antennas, 11n technology allows separate data flows to be transmitted in parallel. Dual polarization antennas consist of two antenna segments, which are polarized orthogonally to each other. They, therefore, provide two cable connections. This means that the WI1065n transmits two separated partial streams from a to b, as defined by IEEE 802.11n. The data rate is more than tripled as compared with the previously applied technology. The combination of bintec WIx065n devices with Funkwerk dual-polarization antennas allows net data rates of approx. 75 Mbps (TCP/IP) at a distance of 1000 m, for example.

As another highlight, besides the previous wireless frequencies in the 2.4 GHz and 5 GHz range, the bintec WIx065n series devices also support sub-band 3 in the 5 GHz range (5755-5825MHz). In Germany and Great Britain this frequency band is enabled for the operators of Internet services to operate BFWA (Broadband Fixed Wireless Access) applications with up to 4 Watt transmission power (EiRP). This considerably simplifies Internet connection of small communities without DSL for many professional Internet providers, but also community groups.

WIx065n outdoors to supply mobile subscribers
No matter whether you plan a wide area hotspot outdoors or have to provide WLAN for a large outdoor storage facility, e.g. to connect your wireless hand scanners to your enterprise resource management system, the bintec WIx065n series devices will meet your requirements and help you overcome many obstacles.

When setting up a hotspot outdoors, the WIx65n devices integrate seamlessly into the bintec hotspot solution. If several access points are required to illuminate a site, e.g. a campsite or highway parking lot, the bintec WI2065n comes into use. This outdoor access point with two independent wireless modules can work simultaneously as an access point in the 2.4 GHz band for the hotspot guests and as a 5 GHz bridge for the wireless backbone.

Another field of application for the WIx065n access points is WLAN supply of large outdoor storage facilities for mobile subscribers, e.g. hand scanners. In this scenario, in conjunction with sound wireless cell planning, the IAPP protocol used by the WI devices ensures optimal roaming behavior of the terminal devices. The optional optical fiber WAN interface spans up to 2 km thus also allowing access points at remote parts of the plant site to also be operated.

Management
Here you have the choice between several solutions.

To configure individual devices you only need you Internet browser. The web server integrated in the device allows fast configuration and monitoring via the graphical user interface.

For larger installations, the complimentary DIME Manager assists in automatically finding unconfigured devices in the network and enables specific configuration of devices.

WLAN Controller
Optimize your WLAN network by using a bintec WLAN controller. The bintec WLAN controller allows configuration of your customers WLAN network in lesser than 30 minutes ... and this without deeper WLAN know-how! The automatic RF management system relieves you the time killing search for free WLAN channels and selects the best channels for the system.

For smaller WLAN networks up to 6 APs bintec access points (W1002n, WI series) are able to take over the function of the WLAN controller by themself and work as quasi master APs. For networks with more than 6 up to 72 APs you will need a bintec R1202 as WLAN controller hardware. You are able to manage bigger WLANs with up to 150 AP by using a bintec RXL12500 as WLAN controller hardware.
