Storage
| Drive device, buffer size |
32 MB |
| Maximum supported storage capacity |
8 TB |
| Hard drive speed |
7200 RPM |
| Total installed storage capacity |
8000 GB |
| Storage drive capacity |
2000 GB |
| Number of storage drives installed |
4 |
| Number of storage drives supported |
4 |

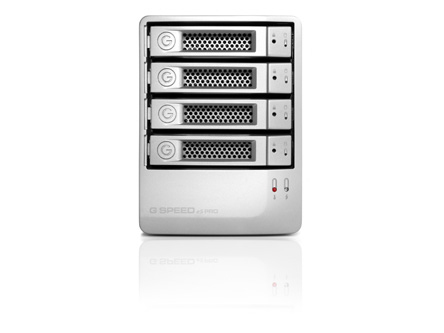

GSP-eSPro/c 8TB - G-SPEED eS PRO Storage Unit, 1x 12Gbit, mini-SAS, Type – 4x SATA ii, 512MB DDR-II Memory, RAID 0, 1, 3, 5, 6, 10 or JBOD
High-Performance, Fail-Safe RAID Solutions for HD/2K Production
The new G-SPEED eS PRO from G-Tech provides professional content creators better than Fibre-Channel performance for demanding post production applications at a fraction of the cost. The compact and whisper quiet G-SPEED eS PRO features mini-SAS connectivity to a high performance PCIe x8 IOP RAID controller that supports RAID levels 0,1,3,5 or 6. A single G-SPEED eS PRO enclosure with four 7200 RPM, SATA II drives in RAID 0 mode supports multi-stream ProRes 422 HQ playback and a single-stream of uncompressed 10-bit HD. Two units with eight drives in protected mode (RAID 3 or 5) supports two simultaneous streams of uncompressed 10-bit HD or a single 2K DPX sequence. G-SPEED eS PRO is simply the most affordable, fail-safe desktop RAID storage solution designed specifically for high-end post.
When used with the G-Tech PCIe x8 RAID controller, G-SPEED eS PRO can easily be configured as a RAID 0, 1, 3, 5 or 6. This flexibility enables the system to be tuned to the required level of performance and fault-tolerance necessary to support your application.
Easy to Setup
G-SPEED eS PRO has a built-in Web GUI that is accessed via any local internet browser. This simple GUI is used to configure and monitor the RAID system. Many aspects of the system are monitored, including power supply voltage, fan RPM and the temperature of the RAID controller & hard drives. In the event of a problem, G-SPEED eS PRO can send an email message to up to four recipients.
