Processor
| Processor frequency |
930 MHz |
| Graphics adapter RAMDAC |
400 MHz |
| CUDA |
Y |
Memory
| Graphics adapter memory type |
GDDR5 |
| Memory bus |
64 bit |
| Memory clock speed |
1804 MHz |
| Bandwidth |
57.7 GHz |
| Discrete graphics adapter memory |
1 GB |
Performance
| DirectX version |
11 |
| OpenGL version |
4.0 |
| NVIDIA 3D Vision |
Y |
| Shader model version |
4.0 |
| PhysX |
Y |
| TV tuner integrated |
N |
| HDCP |
Y |
Other features
| HDMI |
Y |
| Mac compatibility |
N |
Ports & interfaces
| Interface type |
PCI Express 2.0 |
| DVI-I ports quantity |
2 |
| HDMI ports quantity |
1 |
| VGA (D-Sub) ports quantity |
1 |
Power
| Minimum system power supply |
400 W |
System requirements
| Minimum RAM |
2000 MB |
| Minimum processor |
Intel Core2Duo, AMD Athlon 64 X2 |
Additionally
| Graphics controller |
GeForce GTS 450 |
| Dual-link DVI |
Y |

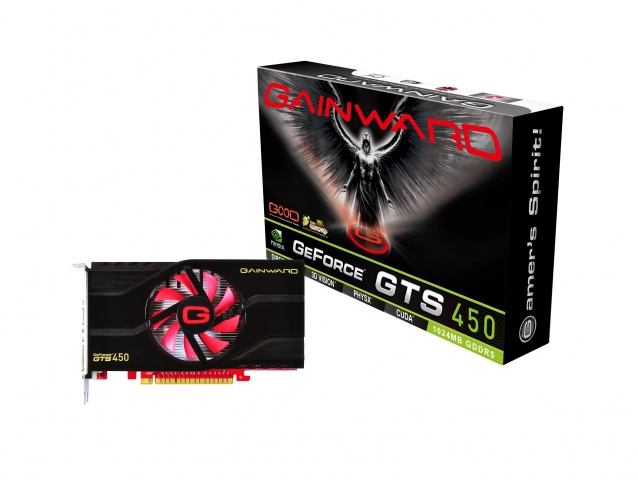

GeForce GTS 450 1024MB, GDDR5 (128 bits), 930 Mhz, DirectX 11, 2560x1600
PRODUCT SPECIFICATIONS
Superior Hardware Design
Gainward’s award winning High-Performance/ Wide-BandwidthTM hardware design powered by NVIDIA’s GeForce GTS 450 GPU (40nm) integrating 1024MB/128bits high-speed GDDR5 memory which offers enhanced, leading-edge performance for the 3D enthusiasts. 930MHz core clock, 2000MHz (DDR 4000) memory clock. High performance 2-slot cooler. Dual DVI (resolution support up to 2560x1600), VGA and HDMI support. Full integrated support for HDMI 1.4a including xvYCC, Deep color and 7.1 digital surround sound.
Dual-link HDCP Capable: Designed to meet the output protection management (HDCP) and security specifications of the Blu-ray Disc formats, allowing the playback of encrypted movie content on PCs when connected to HDCP-compliant displays. Supports two monitors imultaneously, enabled by the NVIDIA nView Multi- Display Technology for office applications, 3D gaming and professional applications such as CAD, DTP, animation or video editing. NVIDIA nView allows end-users to select any combination of multiple displays.
CHIPSET SPECIFICATIONS
NVIDIA GeForce GTS 450
Microsoft DirectX 11 Support: DirectX 11 GPU with Shader Model 5.0 support designed for ultra high performance in the new API’s key graphics feature, GPUaccelerated tessellation.
NVIDIA PhysX: Full support for NVIDIA PhysX technology, enabling a totally new class of physical gaming interaction for a
more dynamic and realistic experience with GeForce.
NVIDIA 3D Vision Ready: GeForce GPU support for NVIDIA 3D Vision, bringing a fully immersive stereoscopic 3D experienceto the PC. A combination of high-tech wireless glasses and advanced software, 3D Vision transforms hundreds of PC games into full stereoscopic 3D. In addition, you can watch 3D movies and 3D digital photographs in eye popping, crystal-clear quality.
NVIDIA CUDA Technology: CUDA technology unlocks the power of the GPU’s processor cores to accelerate the most
demanding system tasks such as video transcoding, physics simulation, ray tracing and more, delivering incredible performance over traditional CPUs.
Microsoft Windows 7 Support: Windows 7 is the next generation operating system that will mark a dramatic improvement in the way the OS takes advantage of the GPU to provide a more compelling user experience.
