Processor
| Processor frequency |
607 MHz |
| Graphics adapter RAMDAC |
400 MHz |
| Graphics processor family |
NVIDIA |
| CUDA |
Y |
Memory
| Graphics adapter memory type |
GDDR5 |
| Memory bus |
320 bit |
| Memory clock speed |
1674 MHz |
| Discrete graphics adapter memory |
1.25 GB |
Performance
| DirectX version |
11 |
| OpenGL version |
3.1 |
| NVIDIA 3D Vision |
Y |
| Shader model version |
5.0 |
| PhysX |
Y |
| TV tuner integrated |
N |
| HDCP |
Y |
Other features
| HDMI |
Y |
| Mac compatibility |
N |
Ports & interfaces
| Interface type |
PCI Express 2.0 |
| DisplayPorts quantity |
1 |
| HDMI ports quantity |
1 |
Power
| Minimum system power supply |
550 W |
System requirements
| Minimum RAM |
2000 MB |
| Minimum processor |
Intel Core2Duo, AMD Athlon 64 X2 |
Additionally
| Graphics controller |
GeForce GTX 470 |
| Dual-link DVI |
Y |

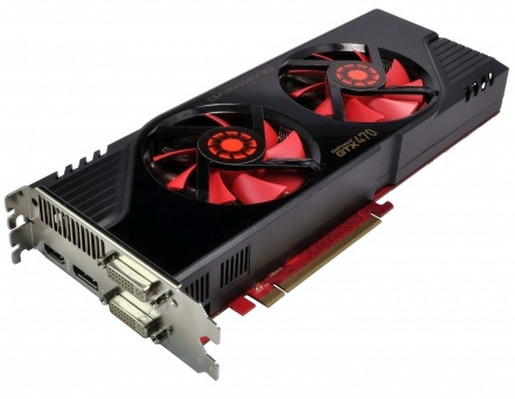

GeForce GTX 470 1280MB GDDR5, 607Mhz, PCI-E, DirectX 11, 2560 x 1600
Superior Hardware Design
Gainward’s award winning High-Performance/ Wide-BandwidthTM hardware design powered
by NVIDIA’s GeForceTM GTX 470 GPU (40nm) integrating 1280MB/320bits high-speed GDDR5 memory which offers enhanced, leading-edge performance for the 3D enthusiasts.
607MHz core clock, 1674MHz (DDR 3348) memory clock.
High performance 2-slot Dual Fan Cooling.
Dual DVI, DisplayPort (resolution support up to 2560x1600) and HDMI support.
Full integrated support for HDMI 1.4 including xvYCC, Deep color and 7.1 digital
surround sound.
Dual-link HDCP Capable: Designed to meet the output protection management (HDCP) and security specifications of the Blu-ray Disc formats, allowing the playback of encrypted movie content on PCs when connected to HDCP-compliant displays.
Supports two monitors simultaneously, enabled by the NVIDIA nView Multi- Display Technology for office applications, 3D gaming and professional applications such as CAD, DTP, animation or video editing. NVIDIA nView allows end-users to select any combination of multiple displays.
NVIDIA GeForceTM GTX 470
Microsoft DirectX 11 Support: DirectX 11 GPU with Shader Model 5.0 support designed for ultra high performance in the new API’s key graphics feature, GPUaccelerated tessellation.
NVIDIA PhysX: Full support for NVIDIA PhysX technology, enabling a totally new class of physical gaming interaction for a more dynamic and realistic experience with GeForce.
NVIDIA 3D Vision Ready: GeForce GPU support for NVIDIA 3D Vision, bringing a fully
immersive stereoscopic 3D experience to the PC. A combination of high-tech wireless glasses and advanced software, 3D Vision transforms hundreds of PC games into full stereoscopic 3D. In addition, you can watch 3D movies and 3D digital photographs in eye popping, crystal-clear quality.
NVIDIA CUDATM Technology: CUDA technology unlocks the power of the GPU’s processor cores to accelerate the most demanding system tasks such as video transcoding, physics simulation, ray tracing and more, delivering incredible performance over traditional CPUs.
Microsoft Windows 7 Support: Windows 7 is the next generation operating system that
will mark a dramatic improvement in the way the OS takes advantage of the GPU to provide a more compelling user experience.
