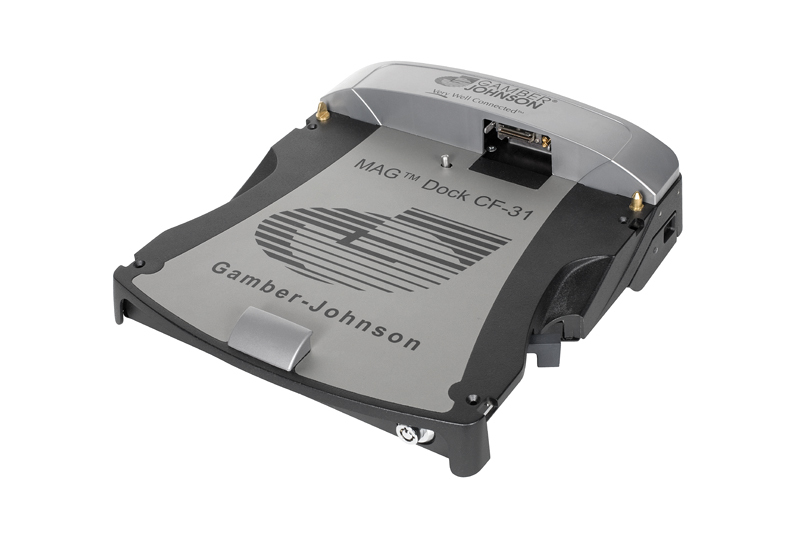

Gamber-Johnson 7160-0318-08 Black,Grey notebook dock/port replicator

MAG 30/31 Docking Station, Auto Lock, 1 x RF, 4.6 lbs <b>Features:</b>
- Magnesium Alloy body design allows for improved docking station design and mounting system/computer performance.
- Sleek, lightweight , yet very rugged for long-term durability
- Gamber-Johnson’s docking station has passed the appropriate tests to qualify for the Toughbook Certified status
- Designed using MIL-STD-810G test procedures and complies with FCC Class A standards
- Design works with Toughbook 30 and 31 computers
- Internal circuit board protects against dirt and dust

Simple, one-handed, docking mechanism:
- Pull side handle forward to dock
- Unlock the key button to release and undock computer

- Brass locating pins for precise computer placement
- Floating docking connector for reliable docking connection
- Interlocking mechanism protects against connector damage & prevents engagement until properly mounted
- Forward facing ports for low mounting capability, minimal cable strain and minimal swivel resistance

Side LED indicator light can be used to troubleshoot in the field:
- Green: All ports are ready to use
- Orange: USB and LAN ports not functioning or external power is not connected
- Red: PC is not supported or connection is not made
- Red (Blinking): Error has occurred in i rmware, contact Panasonic Technical Support
- Not Lit: PC not installed or PC is Of , Standby or Hibernation

- USB 2.0 compliant
- 3 year limited warranty (printed circuit board, docking connector)
- Limited lifetime warranty on all non-electronic components (sheet metal)
- Optional 4 and 5 year extended warranty available
- Can be used with most Motion Attachments
- Dimensions: 3.8” H x 12.40” W x 13.1” D
<b>Note: Panasonic recommends that the CF30/31 computers should not be “hot docked” into any docking station</b>
