Other features
| Maximum number of SMP processors |
1 |
| Headphone connectivity |
3.5 mm |
| Floppy drive installed |
N |
| Graphics adapter family |
Intel |
| Processor manufacturer |
Intel |
| Microphone connectivity |
3.5 mm |
| Mac compatibility |
N |
| TV tuner integrated |
N |
| Built-in camera |
N |
| Compliance industry standards |
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab |
| Networking features |
Gigabit Ethernet |
| Power supply type |
AC/DC |
Networking
| Cabling technology |
10/100/1000Base-T(X) |
| Ethernet LAN data rates |
1000, 10, 100 Mbit/s |
| Internal modem |
N |
| Bluetooth |
N |
| Wi-Fi |
N |
Packaging content
| Display included |
N |
| Keyboard supplied |
Y |
| Bundled software |
Microsoft Office Starter, Bing Bar, Windows Live Essentials |
| Handheld remote control |
N |
| Mouse included |
Y |
Processor
| Number of processors installed |
1 |
| Processor cache |
3 MB |
| Processor lithography |
32 nm |
| Thermal Design Power (TDP) |
65 W |
| Processor codename |
Sandy Bridge |
| Processor cache type |
Smart Cache |
| Memory clock speeds supported by processor |
1066 MHz |
| Memory bandwidth supported by processor (max) |
17 GB/s |
| Memory channels supported by processor |
Dual |
| CPU multiplier (bus/core ratio) |
27 |
| Processor operating modes |
64-bit |
| Processor socket |
LGA 1155 (Socket H2) |
| Stepping |
Q0 |
| Processor threads |
2 |
| Processor cores |
2 |
| PCI Express slots version |
2.0 |
| Processor frequency |
2.7 GHz |
| Maximum internal memory supported by processor |
32 GB |
| Tcase |
69.1 °C |
| Memory types supported by processor |
DDR3-SDRAM |
| Bus type |
DMI |
Ports & interfaces
| DVI port |
N |
| SmartCard slot |
N |
| USB 2.0 ports quantity |
9 |
| Headphone outputs |
1 |
| S/PDIF out port |
N |
| Microphone in |
Y |
| HDMI ports quantity |
1 |
| VGA (D-Sub) ports quantity |
1 |
Graphics
| On-board graphics adapter |
Y |
| On-board graphics adapter family |
Intel HD Graphics |
| Discrete graphics adapter model |
Not available |
| On-board graphics adapter base frequency |
850 MHz |
| On-board graphics adapter model |
Intel HD Graphics |
| On-board graphics adapter dynamic frequency (max) |
1100 MHz |
| Number of displays supported (on-board graphics) |
2 |
Processor special features
| Intel Fast Memory Access |
Y |
| Intel Flex Memory Access |
Y |
| Execute Disable Bit |
Y |
| Idle States |
Y |
| Thermal Monitoring Technologies |
Y |
| Intel Trusted Execution Technology |
N |
| Processor package size |
37.5 x 37.5 mm |
| Processor ARK ID |
53483 |
| Processor code |
SR05S |
| Intel® Quick Sync Video Technology |
N |
| Intel® Insider™ |
N |
| Intel 64 |
Y |
| Intel Dual Display Capable Technology |
Y |
| CPU configuration (max) |
1 |
| Embedded options available |
N |
| Intel Virtualization Technology for Directed I/O (VT-d) |
N |
| Intel Hyper-Threading Technology |
N |
| Intel® Turbo Boost Technology |
N |
| Intel Enhanced Halt State |
Y |
| Intel vPro Technology |
N |
| Intel VT-x with Extended Page Tables (EPT) |
Y |
| Intel FDI Technology |
Y |
| Enhanced Intel SpeedStep Technology |
Y |
| Intel® Wireless Display (Intel® WiDi) |
N |
| Intel® Clear Video HD Technology (Intel® CVT HD) |
N |
Software
| Operating system architecture |
64-bit |
Memory
| Memory clock speed |
1333 MHz |
| Internal memory type |
DDR3-SDRAM |
| Memory slots |
2x DIMM |
| Maximum internal memory |
8 GB |
| Internal memory |
4 GB |
Storage
| Hard drive capacity |
1000 GB |
| Hard drive speed |
5400 RPM |
| Number of hard drives installed |
1 |
| Total storage capacity |
1000 GB |
| Card reader integrated |
Y |
| Hard drive interface |
Serial ATA II |
Optical drive
| Optical drive type |
DVD Super Multi |
Weight & dimensions
| Depth |
353.1 mm |
| Width |
99.06 mm |
| Height |
256.5 mm |
Additionally
| InTru™ 3D Technology |
N |
| Chipset |
Intel H61 |
| Colour of product |
Black |
| System bus data transfer rate |
5 GT/s |
| Ethernet LAN connection |
Y |
| Intel AES New Instructions |
N |
| Ethernet LAN (RJ-45) ports quantity |
1 |

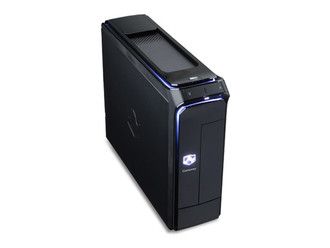

SX2855-UR10P, SX Series, Intel Pentium Dual-Core G630 (2.70GHz, 3MB, 5GT/s, Intel HD Graphics), 4GB DDR3-1333 PC3-10600 SDRAM, 1TB SATAII 5400RPM HDD, DVD Super Multi, Gigabit Ethernet, Windows 7 Home Premium 64-bit, Keyboard/Mouse
At a third the size of most other desktops, the Gateway® SX Series Desktop is so compact its modest appearance may fool you. But factor in up to 8-core processing power and high-end graphics capabilities, and it’s easy to see that the SX’s stature is only a spoonful of its appeal.
Stylish
The illuminated Gateway brand logo, soft curves and glossy black finish convey a sense of décor. You get all these tasteful accents within a small chassis that addresses a practical need for space.
Powerful
Advanced 8-core processors will make your SX hum, while you can select from a wide range of high-performance graphics cards to supercharge your games and movies.
Entertaining
With your SX, every high-definition movie plays like a big-budget blockbuster. Immerse yourself in HD with HDMI™ output, and experience cinematic magic like never before.
Simple
An integrated tray keeps your digital devices within reach. Front panel ports make it easy to connect USB devices and media cards. And the SX’s unique built-in system manages your cables.
