Technical details
| Maximum transfer distance |
60 m |

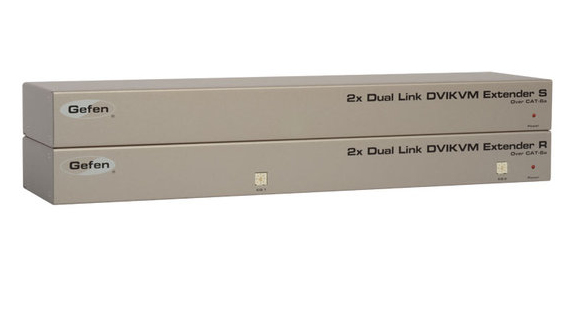

2 x Dual Link DVIKVM Extender, CAT-6a
The 2x Dual Link DVIKVM Extender over CAT-6a is a cost-effective solution that allows the extension of keyboard, video and mouse to a remote workstation up to 200 feet (60 meters away). This product is particularly useful because it is able to extend dual link resolutions beyond the limitations of standard DVI cables. Dual-link resolutions up to 3840 x 2400 are supported using two CAT-6a cables for each display. Single-link resolutions up to 1920 x 1200 can be achieved using one CAT-5e or CAT-6a cable per display. HDCP is supported in both single link and dual link modes. USB 2.0 data rates up to 480 Mbps are supported in addition to backward-compatibility with USB 1.1. The Receiver unit allows the connections of up to four USB devices, providing access to printers, scanners, cameras, external storage media, digital signage, and automated control systems.
