Ports & interfaces
| Audio connections |
Y |
| DC-in jack |
Y |
| Mouse port type |
USB |
| Keyboard port type |
USB |
| Number of computers controlled |
16 |
| Video port type |
DVI-I |
Other features
| Resolution |
3840 x 2400 pixels |
Additionally
| Ethernet LAN connection |
Y |
| Ethernet LAN (RJ-45) ports quantity |
1 |
3840 x 2400, 16 x DVI-I, 29p(f), 24 x USB, 16 x 3.5 mm, RS-232, RJ-45

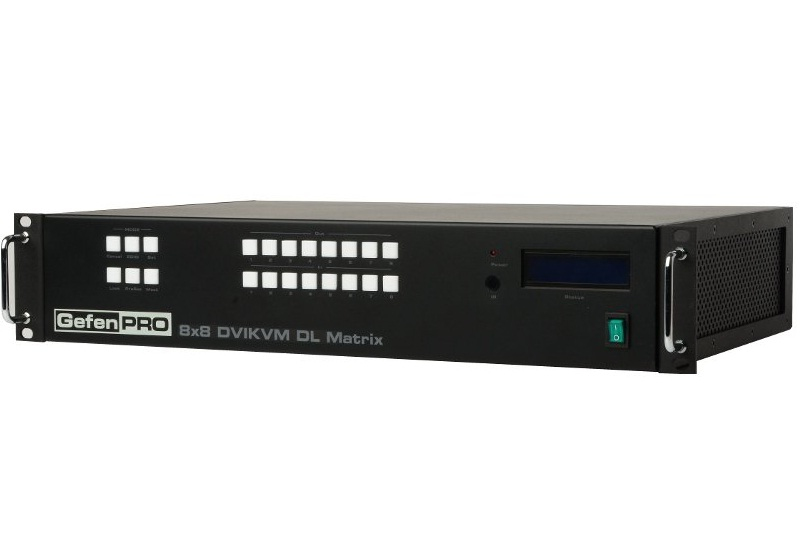

GefenPRO 8x8 DVI KVM Dual Link Matrix w/ Push Button Control
The GefenPRO 8x8 DVIKVM Dual Link Matrix with Push Button Control provides a professional-grade KVM solution to route DVI, USB, and Audio from any eight computers to any eight Hi-Def workstations. Dual link resolutions up to 3840x2400 are supported. Audio can also be routed with the video using mini-stereo cables to provide full multimedia content for digital signage applications. The front panel display shows the current routing status and the front panel push buttons are used to manage local source routing. Four methods are available for controlling the GefenPRO 8x8 DVIKVM Dual Link Matrix: front panel push buttons, an included IR remote, a built-in RS-232 interface, or by using IP control via the built-in Web interface.
- Supports resolutions up to 1920 x 1200 and 3840 x 2400
- Routes DVI, USB, and Audio sources simultaneously
- Advanced EDID management permits upload of custom internal or external EDID settings
- Programmable routing presets
- Output masking command
- Front panel control buttons for local switching
- Status LCD (shows routing status)
- Serial RS-232 interface for remote control via a computer or control automation device(s)
- IR Remote Control
- Built-in IR Extender
- IP Control with integrated web interface
- Grounding Pin
- Internal Power Supply
- Standby mode
- Supports DDWG standards for DVI
- Power ON / OFF switch
- Rack-Mountable (rack ears built into unit)
