Power
| Rated current |
0.35 A |
| Voltage |
12 V |
Weight & dimensions
| Fan dimensions (W x D x H) |
140 x 140 x 25 mm |
Technical details
| Bearing technology |
Nanoflux (NFB) |
| Fan connector |
3-pin |
Performance
| Maximum airflow |
80 cfm |
| Maximum air pressure |
1.45 mmH2O |
| Noise level (high speed) |
26 dB |
| Rotational speed (max) |
1200 RPM |
| Type |
Fan |
| Suitable for |
Computer case |
| Fan diameter |
140 mm |
140 mm, 80 cfm, 500 mm, 3-pin, 1200 RPM, 26 dBA
Features
- Nanoflux Bearing (NFB)
- Optimized Winglet Fan Blades
- Waterproof & Dustproof
- Long Lifetime (100'000 h MTTF at 40°C)
- Rubber Fan Mounts
- Fan Speed Reduction Cable

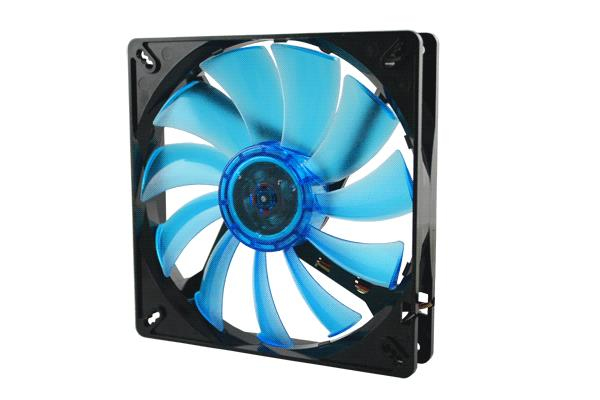

WING 14 UV Blue (FN-FW14B-12)
140mm Gamer Fan
The WING 14 UV Blue case fan is a premium quality, UV reactive, dust and water proof cooling fan for gaming enthusiasts.This fan features an unique bearing with patented design, winglet fans blades and low starting voltage. Only the highest quality materials have been used to manufacture this state-of-the-art cooling fan. To add to the silence fan mounts replace traditional screws and are made of high quality rubber which stop vibrations from the fan motor from travelling into your PC case.
Nanoflux Bearing (NFB)
Patented Nanoflux bearing incorporates a clever magnetic design, very high precision manufacturing and runs friction-free and operates noiseless. Electromagnetic fields are exploited to keep solid parts from touching. The load is carried by a magnetic field.
a) Key Features of Nanoflux Bearing (NFB)
The Nano-technology composite ensures lowest abrasion and extreme durability (MTTF 100’000 hours). Compared to other Magnetic bearings this technology allows the impeller to be detached and thus the fan blades can be cleaned easily.
The material of the Nanoflux bearing is self lubricating and even waterproof
The fan impeller can be removed from the black fan case by applying gentle pressure.
b) Nanoflux Bearing (NFB) compared to sleeve and ball bearings
Even though conventional sleeve and ball bearings currently dominate the fan market however both have their disadvantages. While sleeve bearings have very low noise emissions and are very cost effective, they tend to leak oil; once the oil has dissipated the fan can no longer operate. Ball bearings, on the other hand, while providing longer operating life are costlier, noisier and are prone to damage.
GELID’s Nanoflux bearing uses magnetic flux to limit contact and friction between the bearing and the shaft. High precision self-lubricated material eliminates oil leakage. The result is a ultra quiet long life bearing.
Fan Speed Reduction Cable
The RPM fan speed can be decreased to super silent 900 RPM while connecting the fan speed reduction cable.
Rubber Fan Mounts
Vibration from fan motors can travel into a PC case and become amplified when a fan is fitted tightly. This ‘vibrational’ noise is annoying if you wish to build a very quiet or virtually silent PC.
These rubber mounts have been designed specifically to deal with fan-induced vibrations and are an ideal alternative to standard fan screws, leaving vibrations 100% decoupled from your PC case.
Features
– High quality materials insures long life even at high temperature
– Rubber fan mounts will not break or tear during installation
– Fan size fits to most PC Case chassis with 140mm fan mounting
– Quick & Easy Tool Less Installation
