Data transmission
| MAC address table |
4000 entries |
| Store-and-forward |
Y |
| Switching capacity |
8.8 Gbit/s |
| Packet forwarding rate (1 Gbps) |
1488000 pps |
| Packet forwarding rate (10 Mbps) |
14880 pps |
| Packet forwarding rate (100 Mbps) |
148800 pps |
Networking
| Port mirroring |
Y |
| Broadcast storm control |
Y |
| VLAN support |
Y |
| IGMP snooping |
Y |
| Tagged VLAN |
Y |
| Link aggregation |
Y |
| Spanning tree protocol |
Y |
| Full duplex |
Y |
| Port-based VLAN |
Y |
| Flow control support |
Y |
| Cable types supported |
Cat5, Cat5e |
| 10G support |
N |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) power per port |
15 W |
| Power over Ethernet (PoE) voltage range |
100 - 240 V |
| Total Power over Ethernet (PoE) budget |
30 W |
| Power over Ethernet plus (PoE+) ports quantity |
13 |
| Power over Ethernet (PoE) ports quantity |
24 |
| Power over Ethernet (PoE) |
Y |
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity |
24 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Copper ethernet cabling technology |
100BASE-TX |
| Gigabit Ethernet (copper) ports quantity |
2 |
| Combo SFP ports quantity |
2 |
Performance
| Packet buffer memory |
0.34375 MB |
| Firmware upgradeable |
Y |
| Stackable |
N |
Management features
| Quality of Service (QoS) support |
Y |
| Web-based management |
Y |
Packaging data
| Resource CD |
Y |
| Wall mounting kit |
Y |
| Quick start guide |
Y |
| User guide |
Y |
Design
| Form factor |
19U |
| Rack mounting |
Y |
Gigabit Ethernet, 24xRJ-45, 2xSFP/Gigabit Cooper, MAC 4K, 400W, 4.7kg
- 24-Port 10/100BaseTX PoE+ plus 2-Port Gigabit Copper/SFP Combo Uplink Port
- IEEE 802.3at Compliant (24 Ports at Full 15.4 W)
- Web-based Configuration and Management
- VLAN, QoS, RSTP, IGMP Snooping, LACP, Port Security, Bandwidth Control, Storm Control
- Max. 400 W power consumption
- 19" Rack-mount
- Up to 24 GV-IP Cameras support

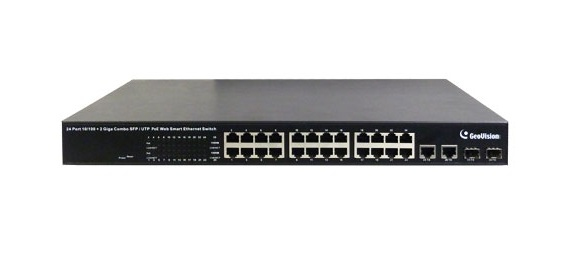

The GV-POE2401 is a 24-port 10/100BaseTX with RJ-45 Connectors, PoE+ plus 2-port Gigabit Copper/SFP Combo Uplink Port Rack-mount Web Smart PoE Switch. The switch supports IEEE 802.3at Power over Ethernet standard, up to 30 W per port and maximum 400 W power consumption per system, and no special network cable is required for connecting your powered devices (PD), such as IP cameras. The switch also provides exceptionally smart Web management features, such as VLAN, QoS, RSTP, IGMP Snooping, LACP, Port Security, etc. The switch is designed for medium or large network environment to strengthen its network connection and efficiency. It also gives you the option of installing it in a 19" cabinet with a rack-mount kit or underneath a desk.
