Security
| Firewall security |
SPI Anti-DOS |
| NAT functionality |
10000entries |
| System event log |
Y |
| MAC address filtering |
Y |
Networking
| Receiver sensitivity |
11n: 16±1dBm\n11g: 16±1dBm\n11b: 18±1dBm\n11n (40MHz): -68dBm\n11n (20MHz): -71dBm\n11g: -74dBm\n11b: -87dBm |
Management features
| Universal Plug and Play (UPnP) |
Y |
| Quality of Service (QoS) support |
Y |
| Reset button |
Y |
| Web-based management |
Y |
Protocols
| DMZ support |
Y |
| DHCP client |
Y |
| DHCP server |
Y |
Ethernet LAN features
| Ethernet LAN interface type |
Fast Ethernet |
| Ethernet LAN data rates |
10, 100 Mbit/s |
Wireless LAN features
| WLAN data transfer rate (max) |
150 Mbit/s |
Other features
| xDSL connection |
Y |
| Remote administration |
Y |
| Internal memory |
16 MB |
| Flash memory |
4 MB |
| Supported protocols |
WAN Protocol: PPPoE /Static IP/ PPTP /Dynamic IP /L2TP / Telstra Big Pond |
| Input voltage |
12 V |
| Input current |
0.5 A |
Antenna
| Antenna gain level (max) |
2 dBi |
Additionally
| Ethernet LAN connection |
Y |
| Ethernet LAN (RJ-45) ports quantity |
4 |
253 clients, 4 MB Flash, 16 MB SDRAM, WAN/LAN 10/100Mbps, IEEE 802.11n 150Mbps, Black

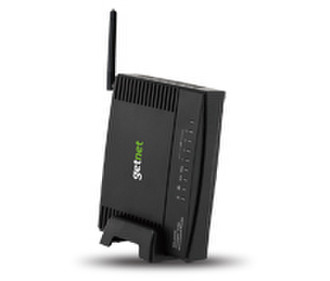

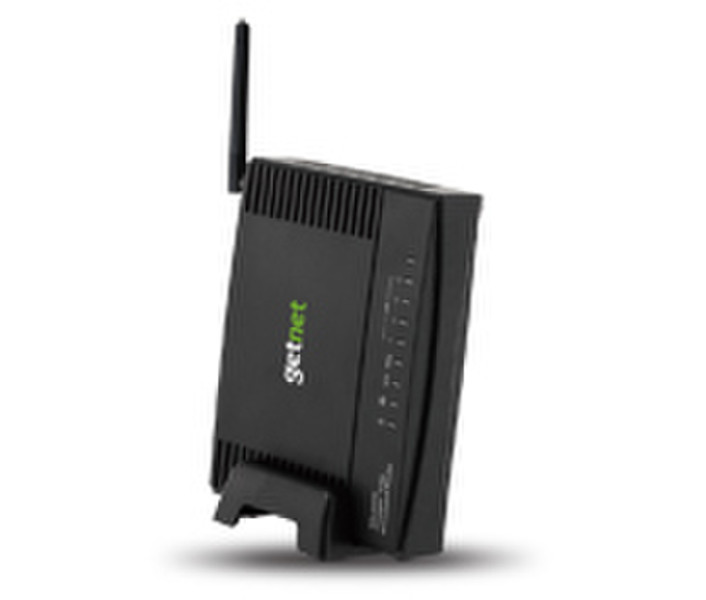

Wireless 150M Broadband Router
- Complies with wireless 802.11g and 802.11b standards
- Compatible with wireless 802.11n standard with data rate up to 150Mbps
- Support Static IP(fixed IP), DHCP (Auto config), PPPoE (ADSL), L2TP, and PPTP connection types
- Supports WISP (Wireless ISP) connection mode
- Supports WMM, WEP, WPA, WPA2, DDNS, QoS, IP/MAC filter, DMZ and virtual server
Impressive Wireless Data Transmission Rate
The GR-534W is a high speed broadband router that complies with wireless IEEE 802.11b/g, and is compatible with IEEE 802.11n standard. The GR-534W works smoothly with wireless 802.11b/g devices at 54Mbps data rate. When connecting with the wireless 802.11n devices, the GR-534W wireless data transmission rate can reach up to 150Mbps – a coverage 3 times better than a standard 802.11g/b router. The GR-534W is truly a high performance and cost-effective solution for your home and small office network.
Extensive Internet Connection Sharing
With the built in NAT (Network Address Translation) function , the GR-534W allows up to 253 wired or wireless clients to simultaneously share the Internet connection.
WISP ( Wireless Internet Service Provider) Connection Mode
The GR-534W can function as a Wireless Internet connection router. When the GR-534W is assigned to perform such task, it repeats the signal from a Wireless Internet Service Provider to your home or office, simultaneously allowing connection of both wired and wireless stations to the Internet.
Port Forwarding and DMZ
The GR-534W supports port forwarding and DMZ. You can enjoy the Internet game play, setup a web server and execute other applications required ports opening.
Easy & Multilingual Setup CD
A unique multilingual Setup Wizard is included in the installation CD. By simply following the animated installation procedures, connecting the GR-534W to the Internet is done within minutes
