Networking
| Receiver sensitivity |
11n:14±1.5dBm\n11g:14±1.5dBm\n11b:18±1.5dBm\n300Mbps OFDM, 10% PER, ‐ 65±2dBm\n54Mbps OFDM, 10% PER, ‐ 73±2dBm\n11Mbps CCK, 8% PER, ‐ 86±2dBm |
Security
| VPN support |
IPSec/PPTP |
| NAT functionality |
NAT/NAPT IP Sharing |
| System event log |
Y |
| MAC address filtering |
Y |
Management features
| Universal Plug and Play (UPnP) |
Y |
| Quality of Service (QoS) support |
Y |
| Reset button |
Y |
| Web-based management |
Y |
Protocols
| DMZ support |
Y |
| DHCP client |
Y |
| DHCP server |
Y |
Ethernet LAN features
| Ethernet LAN interface type |
Fast Ethernet |
| Ethernet LAN data rates |
10, 100 Mbit/s |
Wireless LAN features
| WLAN data transfer rate (max) |
300 Mbit/s |
Other features
| Remote administration |
Y |
| Interface |
WAN, LAN, WiFi |
| Internal memory |
16 MB |
| Flash memory |
4 MB |
| Supported protocols |
WAN Protocol: PPPoE /Static IP/ PPTP /Dynamic IP /L2TP / Telstra Big Pond |
| Input voltage |
12 V |
| Number of users |
253 user(s) |
| Input current |
0.5 A |
Additionally
| Ethernet LAN connection |
Y |
| Ethernet LAN (RJ-45) ports quantity |
4 |
4 MB Flash, 16 MB SDRAM, WAN/LAN 10/100Mbps, 253 clients, IEEE 802.11n 300Mbps, Black

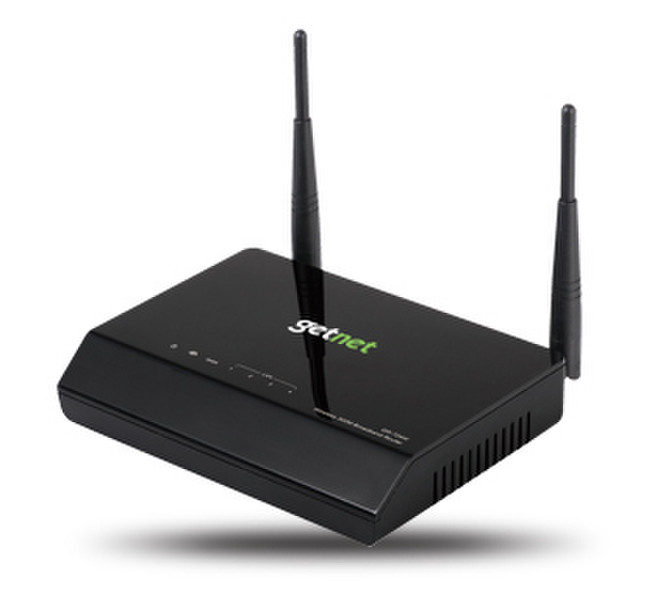

Wireless 300M Broadband Router
- Complies with wireless 802.11g and 802.11b standards
- Increase the wireless speed up to 12 times faster and extends the coverage up to 5 time further than a standard 802.11b/g router
- Compatible with wireless 802.11n standard with data rate up to 300Mbps
- Supports VPN Pass Through (IPSec/PPTP)
- Supports WMM, WEP, WPA, WPA2, DDNS, QoS, IP/MAC filter, DMZ and virtual server
Impressive Data Transmission Rate via IEEE802.11n
The GR-724W is a high speed broadband router that complies with wireless IEEE 802.11b/g/n standard. When operating in the wireless 802.11n mode, the GR-724W wireless data transmission rate can reach up to 300Mbps – a coverage 5 times better than a standard 802.11g/b broadband router. The GR-724W is also backward compatible with 802.11b/g devices so users don’t need to replace all legacy 802.11b/g devices. The GR-724W is truly a high performance solution for your home and small business network.
Extensive Internet Connection Sharing
With the built in NAT (Network Address Translation) function , the GR-724W allows up to 253 wired or wireless clients to simultaneously share an Internet connection.
Port Forwarding and DMZ
The GR-724W supports port forwarding and DMZ. You can enjoy the Internet game play, setup a web server and execute other applications required ports opening.
Supports Special Applications
The GR-724W can setup trigger ports of special applications and let you utilize Internet services smoothly.
Easy & Multilingual Setup Installation CD
A unique multilingual Setup Wizard is included in the installation CD. By simply following the animated installation procedures, connecting the GR-724W to the Internet is done within minutes!
