Processor
| Processor codename |
Cedarview |
| Memory clock speeds supported by processor |
800, 1066 MHz |
| Memory channels supported by processor |
Single |
| Conflict Free processor |
N |
| Memory bandwidth supported by processor (max) |
6.4 GB/s |
| Processor cache type |
L2 |
| Tjunction |
100 C °C |
| FSB Parity |
N |
| Processor operating modes |
64-bit |
| Processor socket |
BGA 559 |
| Stepping |
B3 |
| Processor cores |
2 |
| Processor frequency |
1.86 GHz |
| ECC supported by processor |
N |
| Memory types supported by processor |
DDR3-SDRAM |
| Bus type |
DMI |
| Maximum internal memory supported by processor |
4 GB |
| Number of processors installed |
1 |
| Processor cache |
1 MB |
| Processor lithography |
32 nm |
| Thermal Design Power (TDP) |
10 W |
| Maximum number of PCI Express lanes |
4 |
Memory
| Memory clock speed |
1066 MHz |
| Memory slots |
2x SO-DIMM |
| Maximum internal memory |
4 GB |
| Internal memory |
2 GB |
| Internal memory type |
DDR3-SDRAM |
Processor special features
| Intel® Quick Sync Video Technology |
N |
| Physical Address Extension (PAE) |
Y |
| Intel 64 |
Y |
| Intel Clear Video Technology |
N |
| Intel Dual Display Capable Technology |
Y |
| Embedded options available |
Y |
| Intel Virtualization Technology for Directed I/O (VT-d) |
N |
| Intel® Anti-Theft Technology (Intel® AT) |
N |
| Intel® Identity Protection Technology (Intel® IPT) |
N |
| Intel Hyper-Threading Technology |
Y |
| Intel® Turbo Boost Technology |
N |
| Intel Enhanced Halt State |
N |
| Intel® My WiFi Technology (Intel® MWT) |
N |
| Intel Clear Video Technology for MID |
N |
| Intel vPro Technology |
N |
| Intel VT-x with Extended Page Tables (EPT) |
N |
| Intel FDI Technology |
N |
| Enhanced Intel SpeedStep Technology |
N |
| Intel Demand Based Switching |
N |
| Intel® Wireless Display (Intel® WiDi) |
N |
| Intel® Clear Video HD Technology (Intel® CVT HD) |
N |
| Supported instruction sets |
SSE3, SSE2, SSSE3 |
| Intel Rapid Storage Technology |
N |
| Intel Fast Memory Access |
N |
| Intel Flex Memory Access |
N |
| Execute Disable Bit |
N |
| Thermal Monitoring Technologies |
N |
| Intel Trusted Execution Technology |
N |
| Intel® Small Business Advantage (Intel® SBA) |
N |
| Physical Address Extension (PAE) |
36 bit |
| Processor package size |
22 mm |
| Processor ARK ID |
65470 |
| Processor code |
SR0VY |
| Intel® Insider™ |
N |
Packaging content
| Keyboard supplied |
Y |
| Numeric keypad |
Y |
| Mouse included |
Y |
| Windows keys |
Y |
| Display included |
N |
Graphics
| Discrete graphics adapter model |
Not available |
| On-board graphics adapter base frequency |
640 MHz |
| Number of displays supported (on-board graphics) |
2 |
| On-board graphics adapter |
Y |
Optical drive
| Optical drives quantity |
1 |
| Optical drive type |
DVD±RW |
Storage
| Hard drive capacity |
500 GB |
| Hard drive speed |
7200 RPM |
| Total storage capacity |
500 GB |
| Card reader integrated |
Y |
| Storage media |
HDD |
| Hard drive interface |
Serial ATA II |
| Number of hard drives installed |
1 |
Power
| Power supply input voltage |
115 - 230 V |
| Power supply input frequency |
50 - 60 Hz |
| Power supply |
400 W |
Ports & interfaces
| Line-in |
Y |
| Line-out |
Y |
| Headphone outputs |
1 |
| Microphone in |
Y |
| HDMI ports quantity |
1 |
| VGA (D-Sub) ports quantity |
1 |
| DVI port |
N |
Networking
| Wi-Fi |
N |
| Cabling technology |
10/100/1000Base-T(X) |
| Wake-on-LAN ready |
Y |
| Ethernet LAN data rates |
10, 100, 1000 Mbit/s |
Expansion slots
| PCI slots |
1 |
| PCI Express x1 slots |
1 |
Additionally
| InTru™ 3D Technology |
N |
| Chipset |
Intel NM10 |
| Ethernet LAN connection |
Y |
| Intel AES New Instructions |
N |
| Ethernet LAN (RJ-45) ports quantity |
1 |

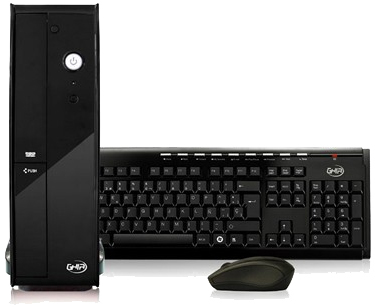

Ghia PCGHIA-1593. Processor frequency: 1.86 GHz, Processor family: Intel® Atom™, Processor model: D2550. Internal memory: 2 GB, Internal memory type: DDR3-SDRAM, Maximum internal memory: 4 GB. Total storage capacity: 500 GB, Storage media: HDD, Hard drive capacity: 500 GB. Optical drive type: DVD±RW. On-board graphics adapter model: Integrated, On-board graphics adapter base frequency: 640 MHz
