Memory
| Supported memory clock speeds |
1066, 1333 MHz |
| Supported memory types |
DDR3L-SDRAM |
| Memory slots type |
SO-DIMM |
| Number of memory slots |
1 |
| Maximum internal memory |
4 GB |
Ports & interfaces
| Serial ports quantity |
2 |
| DVI port |
N |
| Headphone outputs |
1 |
| Microphone in |
Y |
| COM ports quantity |
1 |
| USB 3.0 (3.1 Gen 1) Type-A ports quantity |
1 |
| HDMI ports quantity |
1 |
| VGA (D-Sub) ports quantity |
1 |
| DC-in jack |
Y |
Storage
| Storage drive sizes supported |
2.5 " |
| Supported storage drive types |
HDD, SSD |
| Compatible memory cards |
Memory Stick (MS), MMC, MS PRO, SD |
| Card reader integrated |
Y |
Other features
| Number of processors installed |
1 |
Expansion slots
| Mini PCI Express slots |
2 |
| PCI Express slots version |
2.0 |
Power
| AC adapter output current |
2.1 A |
| AC adapter output voltage |
19 V |
| Power supply type |
External AC adapter |
Performance
| Linux operating systems supported |
Y |
| Watch Dog function |
Y |
Motherboard
| Number of processors supported |
1 |
Processor
| Processor boost frequency |
2.16 GHz |
| Processor lithography |
22 nm |
| Thermal Design Power (TDP) |
4.3 W |
| Processor cores |
2 |
| Built-in processor |
Y |
| Processor frequency |
1.58 GHz |
Processor special features
| Intel Rapid Storage Technology |
N |
| Execute Disable Bit |
Y |
| Idle States |
Y |
| Intel Smart Connect Technology |
Y |
| Intel® Quick Sync Video Technology |
Y |
| Intel® Insider™ |
N |
| Intel 64 |
Y |
| Embedded options available |
Y |
| Intel Virtualization Technology for Directed I/O (VT-d) |
N |
| Intel® Anti-Theft Technology (Intel® AT) |
N |
| Intel Hyper-Threading Technology |
N |
| Intel® Turbo Boost Technology |
N |
| Intel® Virtualization Technology (Intel® VT) |
VT-x |
| Intel vPro Technology |
N |
| Enhanced Intel SpeedStep Technology |
Y |
| Intel® Wireless Display (Intel® WiDi) |
Y |
| Intel® Clear Video HD Technology (Intel® CVT HD) |
N |
Graphics
| On-board graphics adapter |
Y |
Audio
| Audio output channels |
5.1 channels |
| Audio system |
Realtek ALC662-VD0 |
Networking
| LAN controller |
Realtek RTL8111F |
Additionally
| InTru™ 3D Technology |
N |
| Chipset |
Intel HM76 Express |
| Graphics |
HD Graphics |
| Ethernet LAN connection |
Y |
| Intel AES New Instructions |
N |
| AC adapter bundled |
Y |
| Ethernet LAN (RJ-45) ports quantity |
2 |

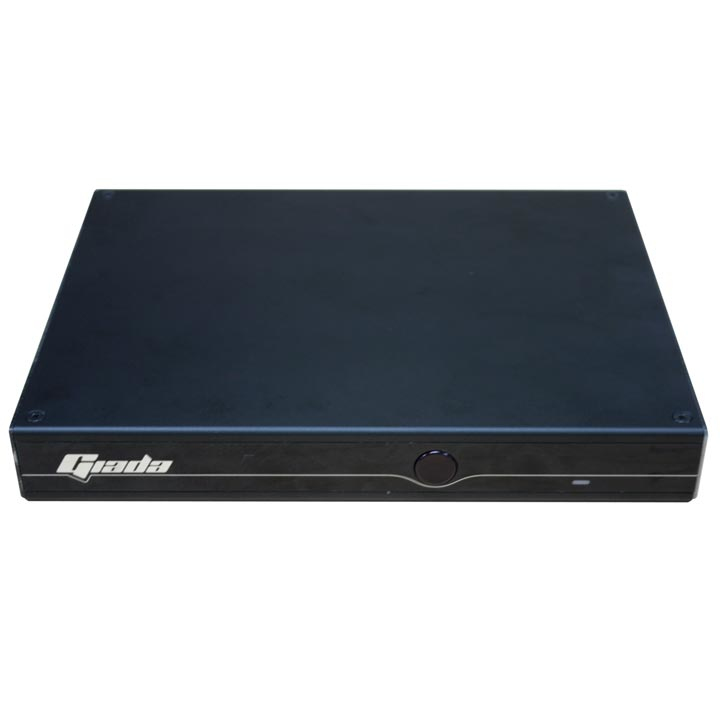

MiniPC barebone F110D fanless, Intel Celeron N2807, HD Graphics, 1x SoDImm, 1x Sata, 1x mSata, GB Lan, 4x USB, 1x USB3, VGA, HDMI, 4-in-1 cardreader
- Supports Intel® Baytrail-D/M Processors
- Supports two independent displays
- 1 x 2.5" HDD , 1 x mSATAII
- 2 x LAN,2 x COM
- 1 x USB 3.0, 4 x USB2.0, 1 x
- TF card reader
