Memory
| Supported memory clock speeds |
1600 MHz |
| Supported memory types |
DDR3L-SDRAM |
| Memory slots type |
SO-DIMM |
| Number of memory slots |
1 |
| Maximum internal memory |
8 GB |
Ports & interfaces
| Serial ports quantity |
2 |
| DVI port |
N |
| Headphone outputs |
1 |
| S/PDIF out port |
Y |
| Microphone in |
Y |
| USB 3.0 (3.1 Gen 1) Type-A ports quantity |
4 |
| HDMI ports quantity |
1 |
| DC-in jack |
Y |
Storage
| Storage drive sizes supported |
2.5 " |
| Number of storage drives supported |
1 |
| Supported storage drive types |
HDD, SSD |
| Optical drive type |
N |
Other features
| Number of processors installed |
1 |
Expansion slots
| Mini PCI Express slots |
2 |
| PCI Express slots version |
2.0 |
Motherboard
| Number of processors supported |
1 |
Processor
| Processor boost frequency |
2.7 GHz |
| Processor lithography |
14 nm |
| Thermal Design Power (TDP) |
15 W |
| Processor cores |
2 |
| Built-in processor |
Y |
| Processor frequency |
2.2 GHz |
Graphics
| On-board graphics adapter |
Y |
| Graphics adapter family |
Intel |
Processor special features
| Intel Fast Memory Access |
Y |
| Intel Flex Memory Access |
Y |
| Execute Disable Bit |
Y |
| Thermal Monitoring Technologies |
Y |
| Intel® Small Business Advantage (Intel® SBA) |
Y |
| Intel® Quick Sync Video Technology |
Y |
| Intel® Insider™ |
Y |
| Intel 64 |
Y |
| Intel Clear Video Technology |
Y |
| Intel® Smart Response Technology |
Y |
| Embedded options available |
N |
| Intel Virtualization Technology for Directed I/O (VT-d) |
Y |
| Intel® Identity Protection Technology (Intel® IPT) |
Y |
| Intel Hyper-Threading Technology |
Y |
| Intel® Turbo Boost Technology |
2.0 |
| Intel® Secure Key |
Y |
| Intel VT-x with Extended Page Tables (EPT) |
Y |
| Intel FDI Technology |
Y |
| Enhanced Intel SpeedStep Technology |
Y |
| Intel® OS Guard |
Y |
| Intel® Wireless Display (Intel® WiDi) |
Y |
| Intel® Clear Video HD Technology (Intel® CVT HD) |
Y |
Design
| Cable lock slot |
Y |
| Cooling type |
Passive |
Networking
| Networking features |
Gigabit |
Power
| Power supply type |
External AC adapter |
Additionally
| InTru™ 3D Technology |
Y |
| Graphics |
HD Graphics 5500 |
| Ethernet LAN connection |
Y |
| Intel AES New Instructions |
Y |
| Ethernet LAN (RJ-45) ports quantity |
1 |

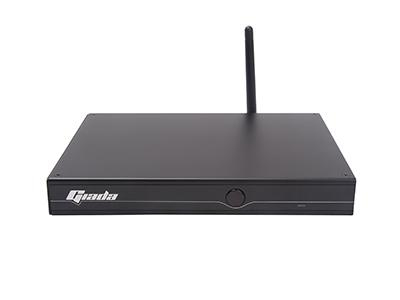

Intel Core i5-5200U Barebone, 4 x USB3.0, 2 x USB2.0, 2 x COM
Fanless Silent Operation
Fanless design, enjoy quiet environment.
DisplayPort 1.2
Supports PC resolutions up to 3200x2000 @60Hz stereoscopic 3D graphics and all HDTV resolutions including 1080p. also supports daisy chaining of multiple monitors. Features a maximum total throughput of up to 21.6Gbps.
Full HD 1080p
Enjoy a cinema-quality movie watching experience in the comfort of your own home.
Gigabit LAN
High-speed LAN connection with 1Gb/s data transfer rate. Ideal for seamless internet
connection for audio and video streaming.
USB3.0
Maximum transmission speed of up to 5Gb/s (10X faster than USB2.0), ideal for connecting to
external hard drives.
TPM (Trusted Platform Module )
Onboard TPM offers enhanced platform security through top level encryption; mandated by many IT departments.
