Memory
| Supported memory clock speeds |
1600 MHz |
| Supported memory types |
DDR3L-SDRAM |
| Memory voltage |
1.35 V |
| Memory slots type |
SO-DIMM |
| Number of memory slots |
2 |
| Maximum internal memory |
16 GB |
Ports & interfaces
| Infrared data port |
Y |
| S/PDIF out port |
Y |
| Microphone in |
Y |
| COM ports quantity |
2 |
| DisplayPorts quantity |
2 |
| USB 3.0 (3.1 Gen 1) Type-A ports quantity |
2 |
| HDMI ports quantity |
1 |
| DC-in jack |
Y |
| DisplayPort version |
1.2 |
Storage
| Storage drive sizes supported |
2.5 " |
| Supported storage drive types |
HDD |
Performance
| BIOS type |
EFI AMI |
| Trusted Platform Module (TPM) |
Y |
Packaging content
| Display included |
N |
| Power cord included |
Y |
Graphics
| Maximum graphics adapter memory |
2048 MB |
| On-board graphics adapter |
Y |
| Graphics adapter family |
NVIDIA |
Expansion slots
| Mini PCI Express slots |
2 |
| PCI Express slots version |
2.0 |
Processor
| Processor boost frequency |
2.7 GHz |
| Processor lithography |
14 nm |
| Thermal Design Power (TDP) |
15 W |
| Processor cores |
2 |
| Built-in processor |
Y |
| Processor frequency |
1.7 GHz |
Processor special features
| Intel Fast Memory Access |
Y |
| Intel Flex Memory Access |
Y |
| Execute Disable Bit |
Y |
| Thermal Monitoring Technologies |
Y |
| Intel Trusted Execution Technology |
N |
| Intel® Small Business Advantage (Intel® SBA) |
N |
| Intel® Quick Sync Video Technology |
Y |
| Intel® Insider™ |
Y |
| Intel 64 |
Y |
| Intel Clear Video Technology |
Y |
| Intel® Smart Response Technology |
N |
| Embedded options available |
N |
| Intel Virtualization Technology for Directed I/O (VT-d) |
Y |
| Intel® Identity Protection Technology (Intel® IPT) |
Y |
| Intel Hyper-Threading Technology |
N |
| Intel® Turbo Boost Technology |
N |
| Intel® Secure Key |
Y |
| Intel VT-x with Extended Page Tables (EPT) |
Y |
| Intel FDI Technology |
Y |
| Enhanced Intel SpeedStep Technology |
Y |
| Intel® OS Guard |
Y |
| Intel® Wireless Display (Intel® WiDi) |
Y |
| Intel® Clear Video HD Technology (Intel® CVT HD) |
N |
Audio
| Audio output channels |
5.1 channels |
Networking
| Wi-Fi |
N |
| Networking features |
Gigabit Ethernet, 3G |
Additionally
| InTru™ 3D Technology |
Y |
| Graphics |
GeForce GT 730 |
| Ethernet LAN connection |
Y |
| Intel AES New Instructions |
N |

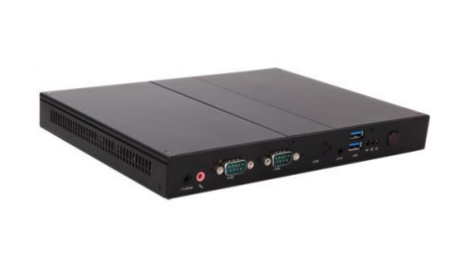

Intel Celeron 3215U, Nvidia GT730 , 2 GB VRAM, 2 x SO-DIMM DDR3-L, Sata III + mSata (mPIC-E), GBit Lan, 2x USB 2.0 + 4xUSB3, HDMI, 2 x Displayport, 2x Com, Audio, SPDIF, 240x174x28mm, JAHC support
Ultra HD
Pack around four times as many pixels into screens as existing HD sets, producing a sharper, higher-density picture.
DisplayPort 1.2
Supports PC resolutions up to 4096x2160@30Hz stereoscopic 3D graphics and all HDTV resolutions including 1080p. also supports daisy chaining of multiple monitors. Features a maximum total throughput of up to 21.6Gbps.
HDMI 1.4a Output
High-definition video output (720p, 1080p, and 2160p)and multi-channel digital audio.
Gigabit LAN
High-speed LAN connection with 1Gb/s data transfer rate. Ideal for seamless internet
connection for audio and video streaming.
USB3.0
Maximum transmission speed of up to 5Gb/s (10X faster than USB2.0), ideal for connecting to
external hard drives.
TPM (Trusted Platform Module)
Onboard TPM offers enhanced platform security through top level encryption; mandated by many IT departments.
VESA Mount (not included)
Save more space by mounting the Mini PC behind your LCD or TV designed to fit seamlessly into any environment any lifestyle.
Energy Saving
Low power consumption saves money and better for the environment.
Low Noise
Ideal for professional offices, home use, and dorm rooms.
RoHS Compliant
