Processor
| Processor lithography |
22 nm |
| Thermal Design Power (TDP) |
17 W |
| Maximum number of PCI Express lanes |
1 |
| Processor codename |
Ivy Bridge |
| Processor cache type |
Smart Cache |
| Memory clock speeds supported by processor |
1333, 1600 MHz |
| Memory channels supported by processor |
Dual |
| Conflict Free processor |
Y |
| PCI Express configurations |
1x16, 2x8, 1x8+2x4 |
| Integrated 4G WiMAX |
Y |
| Tjunction |
105 °C |
| FSB Parity |
N |
| CPU multiplier (bus/core ratio) |
18 |
| Processor operating modes |
64-bit |
| Memory bandwidth supported by processor (max) |
25.6 GB/s |
| Number of processors installed |
1 |
| Processor cache |
3 MB |
| Stepping |
L1 |
| Processor cores |
2 |
| Processor frequency |
1.8 GHz |
| ECC supported by processor |
N |
| Memory types supported by processor |
DDR3-SDRAM, DDR3L-SDRAM |
| Bus type |
DMI |
| Maximum internal memory supported by processor |
32 GB |
| PCI Express slots version |
2.0 |
Processor special features
| Intel Fast Memory Access |
Y |
| Intel Flex Memory Access |
Y |
| Execute Disable Bit |
Y |
| Idle States |
Y |
| Thermal Monitoring Technologies |
Y |
| Intel Trusted Execution Technology |
N |
| Intel® Small Business Advantage (Intel® SBA) |
N |
| Intel Virtualization Technology (VT-x) |
Y |
| Processor package size |
31 mm |
| Processor ARK ID |
65697 |
| Processor code |
SR0N9 |
| Intel® Quick Sync Video Technology |
Y |
| Intel® Insider™ |
Y |
| Intel 64 |
Y |
| Intel Clear Video Technology |
N |
| Intel Dual Display Capable Technology |
Y |
| CPU configuration (max) |
1 |
| Embedded options available |
N |
| Intel Virtualization Technology for Directed I/O (VT-d) |
N |
| Intel® Smart Cache |
Y |
| Intel® Anti-Theft Technology (Intel® AT) |
Y |
| Intel® Identity Protection Technology (Intel® IPT) |
Y |
| Intel Hyper-Threading Technology |
Y |
| Intel® Turbo Boost Technology |
N |
| Intel Enhanced Halt State |
Y |
| Intel Rapid Storage Technology |
N |
| Graphics & IMC lithography |
22 nm |
| Intel® My WiFi Technology (Intel® MWT) |
Y |
| Intel Clear Video Technology for MID |
N |
| Intel vPro Technology |
N |
| Intel VT-x with Extended Page Tables (EPT) |
Y |
| Intel FDI Technology |
Y |
| Enhanced Intel SpeedStep Technology |
Y |
| Intel Identity Protection Technology version |
1.00 |
| Intel Demand Based Switching |
N |
| Intel® Wireless Display (Intel® WiDi) |
Y |
| Intel® Clear Video HD Technology (Intel® CVT HD) |
Y |
| Supported instruction sets |
AVX |
Graphics
| On-board graphics adapter ID |
0x166 |
| On-board graphics adapter family |
Intel HD Graphics |
| Discrete graphics adapter model |
Not available |
| On-board graphics adapter base frequency |
350 MHz |
| On-board graphics adapter |
Y |
| On-board graphics adapter dynamic frequency (max) |
1050 MHz |
| Number of displays supported (on-board graphics) |
3 |
Networking
| Ethernet LAN data rates |
10, 100, 1000 Mbit/s |
| Cabling technology |
10/100/1000Base-T(X) |
| Wi-Fi |
Y |
| Bluetooth |
Y |
Performance
| Audio output channels |
5.1 channels |
Storage
| Hard drive capacity |
500 GB |
| Hard drive speed |
5400 RPM |
| Compatible memory cards |
Memory Stick (MS), MMC, MS PRO, SD |
| Number of hard drives installed |
1 |
| Hard drive size |
2.5 " |
| Total storage capacity |
500 GB |
| Card reader integrated |
Y |
| Storage media |
HDD |
| Hard drive interface |
Serial ATA |
Memory
| Maximum internal memory |
8 GB |
| Internal memory type |
DDR3-SDRAM |
| Internal memory |
4 GB |
Ports & interfaces
| Headphone outputs |
1 |
| S/PDIF out port |
Y |
| Microphone in |
Y |
| DVI port |
N |
| USB 3.0 (3.1 Gen 1) Type-A ports quantity |
1 |
| HDMI ports quantity |
1 |
| VGA (D-Sub) ports quantity |
1 |
| DC-in jack |
Y |
Additionally
| InTru™ 3D Technology |
Y |
| Chipset |
Intel HM76 Express |
| Ethernet LAN connection |
Y |
| Intel AES New Instructions |
N |
| Ethernet LAN (RJ-45) ports quantity |
1 |
| System bus data transfer rate |
5 GT/s |
Intel Core i3-3217U (3M Cache, 1.80 GHz), 4GB DDR3, 500GB HDD, Intel HD4000, Gigabit Ethernet, 802.11b/g/n, Bluetooth, CardReader, VGA, HDMI, Audio, SPDIF

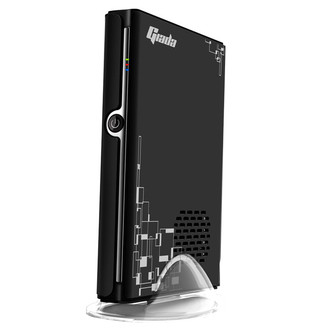

High Performance Mini PC in a Small Package
The Giada i53-i3 is proof that good things really do come in small packages Smaller than a typical hardcover book, the stylish i53 is packing impressive performance - 3rd Generation Intel® Core™ i3 processor, Full HD 1080p, choice of a 2.5” HDD or an SSD, Bluetooth® audio and a full compliment of I/O ports.
- Compact yet powerful – Intel 3rd Generation Core i3 processor – runs apps up to 20% faster than previous Core processors
- 1080p Full HD Graphics with HDMI port
- 4GB of high performance DDR3 RAM (Expandable to 8GB)
- 320GB or 500GB 2.5” hard drive or optional SSD
- Built-in 802.11b/g/n wireless networking, Gigabit LAN port too!
- Bluetooth Audio
- USB 3.0 & 2.0 ports for maximum connectivity
- 4-in-1 Card Reader (SD / MMC / MS / MS PRO)
- Low 35 Watt power consumption
- Quiet operation
- Windows® 8 Pro (Optional)
