Processor special features
| Intel Rapid Storage Technology |
N |
| Graphics & IMC lithography |
22 nm |
| Intel Fast Memory Access |
Y |
| Intel Flex Memory Access |
Y |
| Execute Disable Bit |
Y |
| Idle States |
Y |
| Thermal Monitoring Technologies |
Y |
| Intel Trusted Execution Technology |
N |
| Intel® Small Business Advantage (Intel® SBA) |
N |
| Intel Virtualization Technology (VT-x) |
Y |
| Processor package size |
31 mm |
| Processor ARK ID |
65707 |
| Processor code |
SR0N8 |
| Intel® Quick Sync Video Technology |
Y |
| Intel® Insider™ |
Y |
| Intel 64 |
Y |
| Intel Clear Video Technology |
N |
| Intel Dual Display Capable Technology |
Y |
| CPU configuration (max) |
1 |
| Embedded options available |
N |
| Intel Virtualization Technology for Directed I/O (VT-d) |
Y |
| Intel® Smart Cache |
Y |
| Intel® Anti-Theft Technology (Intel® AT) |
Y |
| Intel® Identity Protection Technology (Intel® IPT) |
Y |
| Intel Hyper-Threading Technology |
Y |
| Intel® My WiFi Technology (Intel® MWT) |
Y |
| Intel Clear Video Technology for MID |
N |
| Intel vPro Technology |
N |
| Intel VT-x with Extended Page Tables (EPT) |
Y |
| Intel FDI Technology |
Y |
| Enhanced Intel SpeedStep Technology |
Y |
| Intel Identity Protection Technology version |
1.00 |
| Intel Secure Key Technology version |
1.00 |
| Intel Demand Based Switching |
N |
| Intel® Wireless Display (Intel® WiDi) |
Y |
| Intel® Clear Video HD Technology (Intel® CVT HD) |
Y |
| Supported instruction sets |
AVX |
| Intel® Turbo Boost Technology |
2.0 |
| Intel Enhanced Halt State |
Y |
| Intel® Secure Key |
Y |
Graphics
| On-board graphics adapter |
Y |
| On-board graphics adapter ID |
0x166 |
| Discrete graphics adapter model |
Not available |
| On-board graphics adapter dynamic frequency (max) |
1050 MHz |
| Number of displays supported (on-board graphics) |
3 |
| On-board graphics adapter family |
Intel HD Graphics |
| On-board graphics adapter base frequency |
350 MHz |
Processor
| Processor cache |
3 MB |
| Processor lithography |
22 nm |
| Thermal Design Power (TDP) |
17 W |
| Maximum number of PCI Express lanes |
1 |
| Processor codename |
Ivy Bridge |
| Memory clock speeds supported by processor |
1333, 1600 MHz |
| Memory channels supported by processor |
Dual |
| Conflict Free processor |
Y |
| PCI Express configurations |
1x16, 2x8, 1x8+2x4 |
| Integrated 4G WiMAX |
Y |
| Tjunction |
105 °C |
| FSB Parity |
N |
| Stepping |
L1 |
| Processor cores |
2 |
| Processor frequency |
1.7 GHz |
| ECC supported by processor |
N |
| Memory types supported by processor |
DDR3-SDRAM, DDR3L-SDRAM |
| Bus type |
DMI |
| Memory bandwidth supported by processor (max) |
25.6 GB/s |
| Maximum internal memory supported by processor |
32 GB |
| Processor cache type |
Smart Cache |
| PCI Express slots version |
2.0 |
| Number of processors installed |
1 |
| Processor boost frequency |
2.6 GHz |
| CPU multiplier (bus/core ratio) |
17 |
| Processor operating modes |
64-bit |
| Processor socket |
BGA 1023 |
Ports & interfaces
| Thunderbolt ports quantity |
1 |
| Headphone outputs |
1 |
| Microphone in |
Y |
| USB 3.0 (3.1 Gen 1) Type-A ports quantity |
1 |
| HDMI ports quantity |
1 |
| VGA (D-Sub) ports quantity |
1 |
| DC-in jack |
Y |
| DVI port |
N |
| Line-out |
Y |
Performance
| Audio output channels |
5.1 channels |
Memory
| Memory layout (slots x size) |
1 x 4 GB |
| Memory slots |
1x SO-DIMM |
| Maximum internal memory |
8 GB |
| Internal memory |
4 GB |
| Internal memory type |
DDR3-SDRAM |
Packaging content
| Keyboard supplied |
N |
| Mouse included |
N |
| Display included |
N |
Storage
| Compatible memory cards |
Memory Stick (MS), MMC, MS PRO, SD |
| Card reader integrated |
Y |
| Hard drive interface |
Serial ATA |
| Hard drive size |
2.5 " |
Networking
| Wi-Fi |
N |
| Bluetooth |
N |
| Cabling technology |
10/100/1000Base-T(X) |
Additionally
| InTru™ 3D Technology |
Y |
| Chipset |
Intel H67 Express |
| Ethernet LAN connection |
Y |
| Intel AES New Instructions |
Y |
| Ethernet LAN (RJ-45) ports quantity |
1 |
| System bus data transfer rate |
5 GT/s |

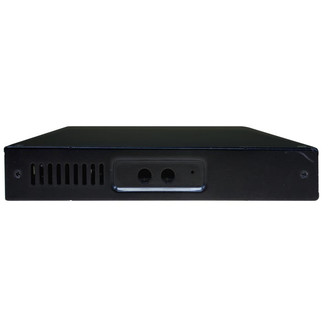

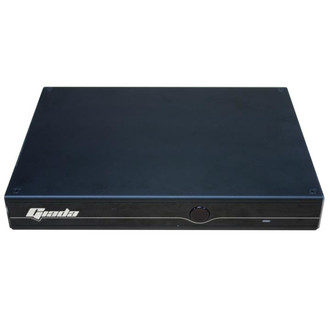

Giada i53B-i5. Processor frequency: 1.7 GHz, Processor family: 3rd gen Intel® Core™ i5, Processor model: i5-3317U. Internal memory: 4 GB, Internal memory type: DDR3-SDRAM, Maximum internal memory: 8 GB. Hard drive interface: Serial ATA, Hard drive size: 2.5", Compatible memory cards: Memory Stick (MS), MMC, MS PRO, SD. On-board graphics adapter model: Intel HD Graphics 4000, On-board graphics adapter family: Intel® HD Graphics, On-board graphics adapter base frequency: 350 MHz. Cabling technology: 10/100/1000Base-T(X)
