Networking
| Cabling technology |
10/100/1000Base-T(X) |
| Ethernet LAN data rates |
10, 100, 1000 Mbit/s |
| Internal modem |
N |
| Wi-Fi |
N |
| Bluetooth |
N |
Ports & interfaces
| Serial ports quantity |
1 |
| DVI port |
N |
| SmartCard slot |
N |
| Headphone outputs |
1 |
| S/PDIF out port |
Y |
| Microphone in |
Y |
| USB 3.0 (3.1 Gen 1) Type-A ports quantity |
1 |
| HDMI ports quantity |
1 |
| VGA (D-Sub) ports quantity |
1 |
Packaging content
| Display included |
N |
| Handheld remote control |
N |
Processor
| Number of processors installed |
1 |
| Processor boost frequency |
2.6 GHz |
| Processor cache |
3 MB |
| Processor lithography |
22 nm |
| Thermal Design Power (TDP) |
17 W |
| Maximum number of PCI Express lanes |
1 |
| Processor codename |
Ivy Bridge |
| Memory clock speeds supported by processor |
1333, 1600 MHz |
| Memory bandwidth supported by processor (max) |
25.6 GB/s |
| Processor cache type |
Smart Cache |
| Memory channels supported by processor |
Dual |
| Conflict Free processor |
Y |
| PCI Express configurations |
1x16, 2x8, 1x8+2x4 |
| Integrated 4G WiMAX |
Y |
| Tjunction |
105 °C |
| FSB Parity |
N |
| CPU multiplier (bus/core ratio) |
17 |
| Processor operating modes |
64-bit |
| Processor socket |
BGA 1023 |
| Stepping |
L1 |
| Processor cores |
2 |
| Processor frequency |
1.7 GHz |
| Maximum internal memory supported by processor |
32 GB |
| PCI Express slots version |
2.0 |
| ECC supported by processor |
N |
| Memory types supported by processor |
DDR3-SDRAM, DDR3L-SDRAM |
| Bus type |
DMI |
Processor special features
| Intel Rapid Storage Technology |
N |
| Graphics & IMC lithography |
22 nm |
| Intel Fast Memory Access |
Y |
| Intel Flex Memory Access |
Y |
| Execute Disable Bit |
Y |
| Idle States |
Y |
| Thermal Monitoring Technologies |
Y |
| Intel Trusted Execution Technology |
N |
| Intel Virtualization Technology (VT-x) |
Y |
| Processor package size |
31 mm |
| Processor ARK ID |
65707 |
| Processor code |
SR0N8 |
| Intel® Quick Sync Video Technology |
Y |
| Intel® Insider™ |
Y |
| Intel 64 |
Y |
| Intel Clear Video Technology |
N |
| Intel Dual Display Capable Technology |
Y |
| CPU configuration (max) |
1 |
| Embedded options available |
N |
| Intel Virtualization Technology for Directed I/O (VT-d) |
Y |
| Intel® Smart Cache |
Y |
| Intel® Anti-Theft Technology (Intel® AT) |
Y |
| Intel® Identity Protection Technology (Intel® IPT) |
Y |
| Intel Hyper-Threading Technology |
Y |
| Intel® Turbo Boost Technology |
2.0 |
| Intel Enhanced Halt State |
Y |
| Intel® Secure Key |
Y |
| Intel® My WiFi Technology (Intel® MWT) |
Y |
| Intel Clear Video Technology for MID |
N |
| Intel vPro Technology |
N |
| Intel VT-x with Extended Page Tables (EPT) |
Y |
| Intel FDI Technology |
Y |
| Enhanced Intel SpeedStep Technology |
Y |
| Intel Identity Protection Technology version |
1.00 |
| Intel Secure Key Technology version |
1.00 |
| Intel Demand Based Switching |
N |
| Intel® Wireless Display (Intel® WiDi) |
Y |
| Intel® Clear Video HD Technology (Intel® CVT HD) |
Y |
| Supported instruction sets |
AVX |
Graphics
| On-board graphics adapter |
Y |
| On-board graphics adapter ID |
0x166 |
| On-board graphics adapter family |
Intel HD Graphics |
| Discrete graphics adapter model |
Not available |
| On-board graphics adapter base frequency |
350 MHz |
| On-board graphics adapter dynamic frequency (max) |
1050 MHz |
| Number of displays supported (on-board graphics) |
3 |
Storage
| Solid-state drive capacity |
60 GB |
| Number of SSDs installed |
1 |
| Compatible memory cards |
Memory Stick (MS), MMC, MS PRO, SD |
| Total storage capacity |
60 GB |
| Card reader integrated |
Y |
| Storage media |
SSD |
| Solid-state drive interface |
Serial ATA |
Software
| Operating system architecture |
64-bit |
Memory
| Memory layout (slots x size) |
1 x 4 GB |
| Memory slots |
1x SO-DIMM |
| Internal memory type |
DDR3-SDRAM |
| Maximum internal memory |
4 GB |
| Internal memory |
4 GB |
Power
| Power supply input voltage |
110 - 240 V |
Additionally
| InTru™ 3D Technology |
Y |
| Chipset |
Intel H67 Express |
| System bus data transfer rate |
5 GT/s |
| Ethernet LAN connection |
Y |
| Intel AES New Instructions |
Y |
| Ethernet LAN (RJ-45) ports quantity |
1 |
i53B5, Mini-PC, Core i5-3317U (2C/4T, 1.7GHz, 2.6GHz Turbo, 3MB, 5GT/s, Intel HD Graphics 4000), 60GB 2.5" SATA SSD, 4GB RAM, HDMI, VGA, 4x USB 2.0, 1x USB 3.0, 1x COM, SD/MMC/MS/MS PRO, MiniPCIe, 1.65kg, Windows 7 Professional 64-bit

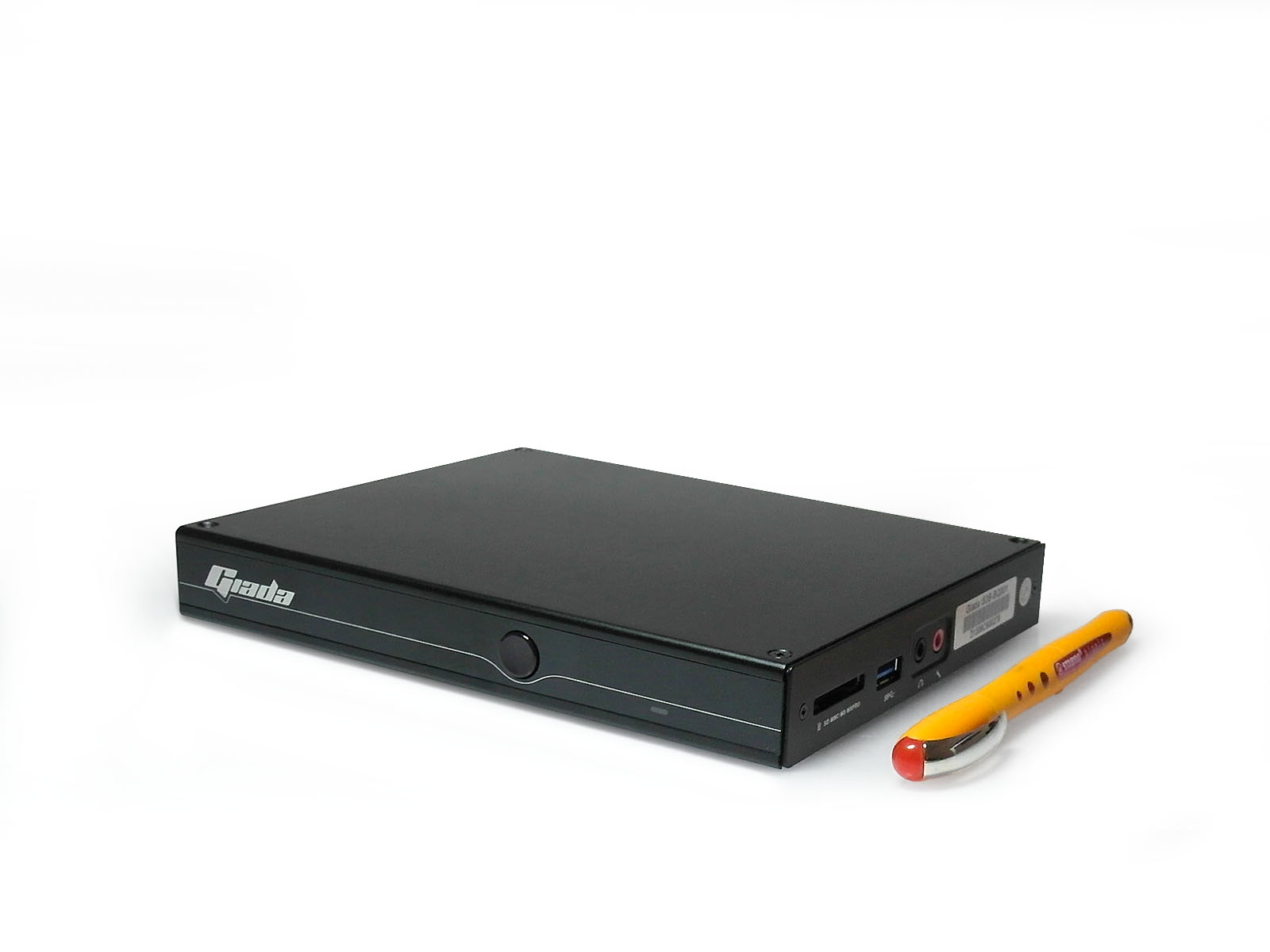

super-flat booksize Mini-PC Giada i53B5 for Digital Signage or other demanding PC tasks. With 60 GB SSD, 4 GB DDR3 RAM and MS Windows 7 Professional. Metal case with only 0.7 liter volume.
Internal: Intel Core i5-3317U Double-Core CPU (Notebook Line with 17 Watt) with 2x 1.7 GHz, Turbo 2x 2.6 GHz, 3 MB Cache, powerful HD4000 Video acceleration for two independent displays, HM76 Chipset, SO-DIMM slot for DDR3 RAM, mount for 2,5" SATA HD or SSD, 1x full size Mini-PCI Express Slot for optional Wifi card.

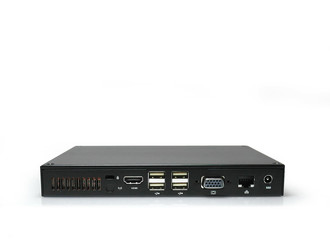

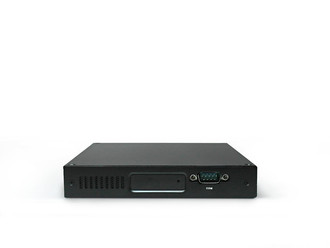

Connectors: HDMI, VAG (up to 2560 x 1600), GB-LAN, 4x USB, 1x USB 3.0, 1x serial port, external EU power adaptor (110-240V/19V).
Options: Wifi-Kit with SMA antenna jack (No. +WLAN-PCIE), lockable VESA 75/100 mount (No. JZ182)
