Networking
| Bluetooth |
N |
| Networking features |
Gigabit Ethernet |
Storage
| Card reader integrated |
Y |
| Number of storage drives supported |
1 |
Ports & interfaces
| VGA (D-Sub) ports quantity |
1 |
| Microphone in |
Y |
| Headphone outputs |
1 |
| Serial ports quantity |
1 |
| HDMI ports quantity |
1 |
| USB 3.0 (3.1 Gen 1) Type-A ports quantity |
1 |
Processor
| L2 cache |
3 MB |
| Processor cores |
2 |
Certificates
| Compliance industry standards |
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab |
Memory
| Memory slots type |
SO-DIMM |
| Number of memory slots |
1 |
| Supported memory types |
DDR3-SDRAM |
Power
| Number of power supply units |
1 |
Graphics
| On-board graphics adapter |
Y |
| Graphics adapter family |
Intel |
Motherboard
| Number of processors supported |
1 |
Other features
| Number of processors installed |
1 |
Additionally
| Ethernet LAN connection |
Y |
| Graphics |
HD Graphics 4000 |
| Chipset |
Intel HM76 Express |
| Ethernet LAN (RJ-45) ports quantity |
1 |
Giada i53B3, Mini-PC Barebone, Core i5-3317U (2C/4T, 1.7GHz, 2.6GHz Turbo, 3MB, 5GT/s, Intel HD Graphics 4000), HDMI, VGA, 4x USB 2.0, 1x USB 3.0, 1x COM, SD/MMC/MS/MS PRO, 6.35 cm (2.5 ") SATA, MiniPCIe

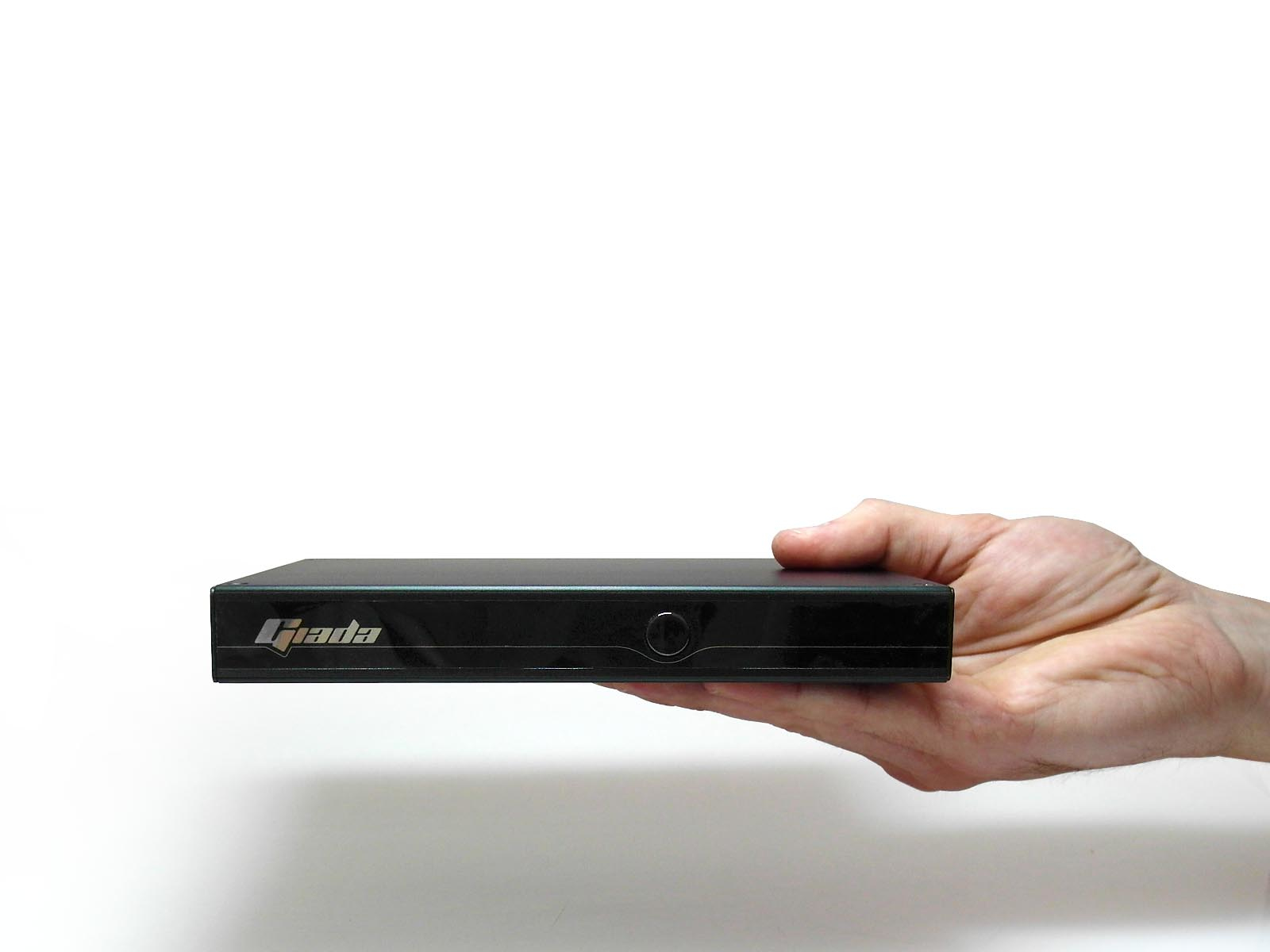

super-flat booksize Mini-PC Giada i53B5 Barebone for Digital Signage or other demanding PC tasks. Metal case with only 0.7 liter volume.
Internal: Intel Core i5-3317U Double-Core CPU (Notebook Line with 17 Watt) with 2x 1.7 GHz, Turbo 2x 2.6 GHz, 3 MB Cache, powerful HD4000 Video acceleration for two independent displays, HM76 Chipset, SO-DIMM slot for DDR3 RAM, mount for 2,5" SATA HD or SSD, 1x full size Mini-PCI Express Slot for optional Wifi card.
Connectors: HDMI, VAG (up to 2560 x 1600), GB-LAN, 4x USB, 1x USB 3.0, 1x serial port, external EU power adaptor (110-240V/19V).
Options: Wifi-Kit with SMA antenna jack (No. +WLAN-PCIE), lockable VESA 75/100 mount (No. JZ182)
