Memory
| Supported memory clock speeds |
1333, 1600 MHz |
| Memory bandwidth (max) |
25.6 GB/s |
| ECC |
N |
| Supported memory types |
DDR3L-SDRAM |
| Memory voltage |
1.35 V |
| Memory slots type |
SO-DIMM |
| Number of memory slots |
2 |
| Maximum internal memory |
16 GB |
Storage
| Storage drive sizes supported |
2.5 " |
| Number of storage drives supported |
1 |
| Supported storage drive types |
HDD, SSD |
| Compatible memory cards |
MicroSD (TransFlash) |
| Optical drive type |
N |
| Card reader integrated |
Y |
Performance
| BIOS type |
EFI AMI |
| Linux operating systems supported |
Y |
| Number of displays supported |
3 |
Packaging content
| Display included |
N |
| Power cord included |
Y |
Motherboard
| Supported processor frequency (max) |
2.7 GHz |
| Number of processors supported |
1 |
Expansion slots
| Mini PCI Express slots |
2 |
| PCI Express slots version |
2.0 |
Processor
| Processor boost frequency |
2.7 GHz |
| Processor lithography |
14 nm |
| Thermal Design Power (TDP) |
15 W |
| L3 cache |
3 MB |
| Processor cores |
2 |
| Built-in processor |
Y |
| Processor frequency |
2.2 GHz |
Graphics
| On-board graphics adapter |
Y |
| Graphics adapter family |
Intel |
Processor special features
| Intel Fast Memory Access |
Y |
| Intel Flex Memory Access |
Y |
| Execute Disable Bit |
Y |
| Idle States |
Y |
| Thermal Monitoring Technologies |
Y |
| Intel® Small Business Advantage (Intel® SBA) |
Y |
| Conflict Free |
Y |
| Intel® Quick Sync Video Technology |
Y |
| Intel® Insider™ |
Y |
| Intel 64 |
Y |
| Intel Clear Video Technology |
Y |
| Intel® Smart Response Technology |
Y |
| Embedded options available |
N |
| Intel Virtualization Technology for Directed I/O (VT-d) |
Y |
| Intel® Identity Protection Technology (Intel® IPT) |
Y |
| Intel Hyper-Threading Technology |
Y |
| Intel® Turbo Boost Technology |
2.0 |
| Intel® Secure Key |
Y |
| Intel® Virtualization Technology (Intel® VT) |
VT-d, VT-x |
| Intel VT-x with Extended Page Tables (EPT) |
Y |
| Intel FDI Technology |
Y |
| Enhanced Intel SpeedStep Technology |
Y |
| Intel® OS Guard |
Y |
| Intel® Wireless Display (Intel® WiDi) |
Y |
| Intel® Clear Video HD Technology (Intel® CVT HD) |
Y |
Design
| LED indicators |
HDD, Power |
| Cooling type |
Active |
Ports & interfaces
| Headphone outputs |
1 |
| S/PDIF out port |
Y |
| Microphone in |
Y |
| COM ports quantity |
1 |
| DisplayPorts quantity |
1 |
| USB 3.0 (3.1 Gen 1) Type-A ports quantity |
1 |
| HDMI ports quantity |
1 |
| DC-in jack |
Y |
| DisplayPort version |
1.2 |
Power
| Power supply type |
External AC adapter |
Additionally
| InTru™ 3D Technology |
Y |
| Graphics |
HD Graphics 5500 |
| Ethernet LAN connection |
Y |
| On/Off switch |
Y |
| Intel AES New Instructions |
Y |
| AC adapter bundled |
Y |
| Ethernet LAN (RJ-45) ports quantity |
1 |

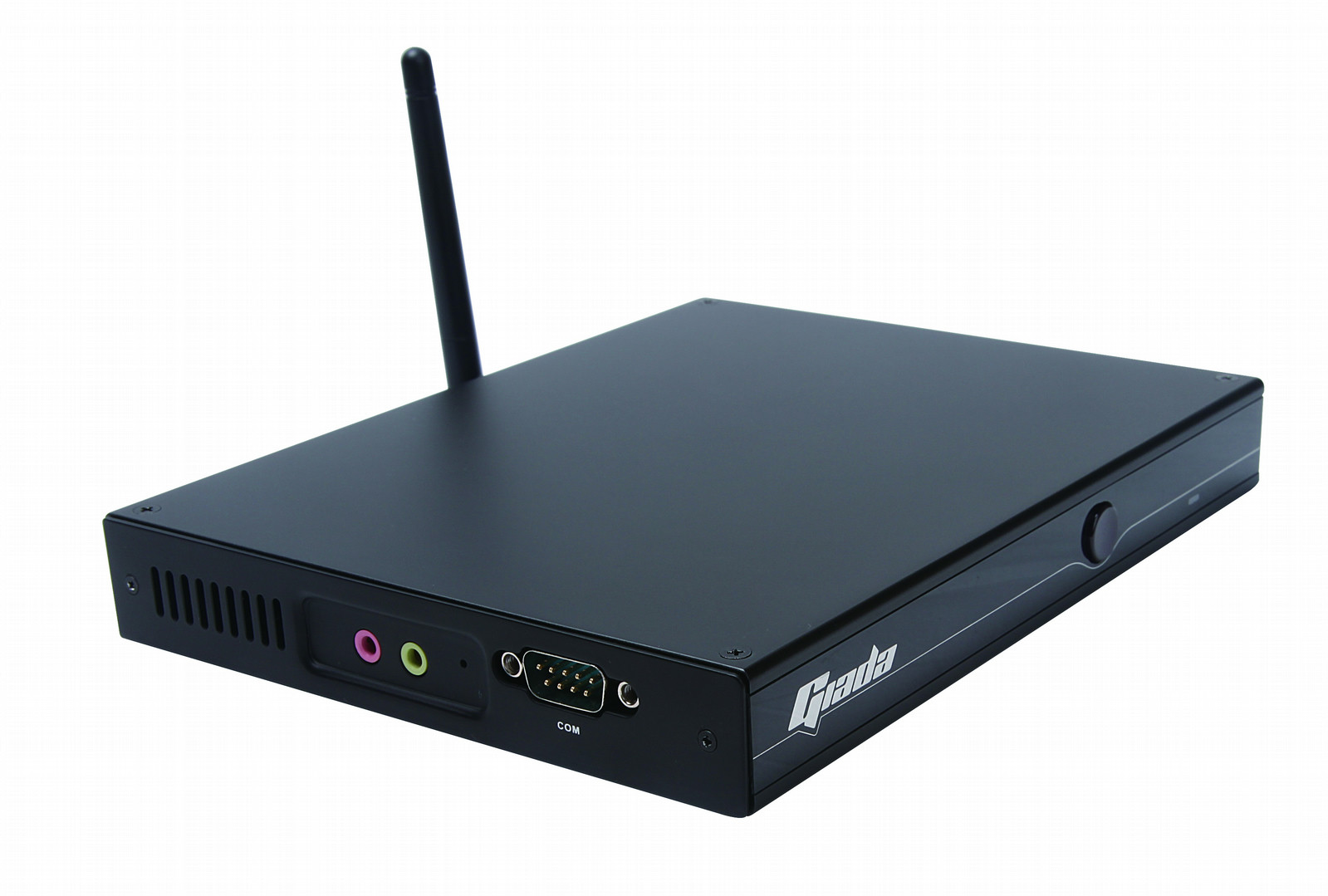

MiniPC barebone I58, Intel core i5-5200U, HD Graphics 5500, 2 slots DDR3L max16GB, 4xUSB2.0+1xUSB3.0, 1xDisplayPort, 1xHDMI, 30W, micro SD cardreader
- Support Ultra HD
- Optional mSATAIII SSD
- Optional Mini PCIE WiFi&BT or 3G module
- Support Intel® AMT Technology with Specific CPU
