Graphics
| Graphics adapter memory type |
GDDR5 |
| Maximum graphics adapter memory |
4000 MB |
| On-board graphics adapter |
Y |
| Graphics adapter family |
NVIDIA |
Memory
| Supported memory clock speeds |
2133 MHz |
| Supported memory types |
DDR4-SDRAM |
| Memory slots type |
SO-DIMM |
| Number of memory slots |
2 |
| Maximum internal memory |
32 GB |
Storage
| Storage drive sizes supported |
2.5 " |
| Number of storage drives supported |
2 |
| Supported storage drive types |
HDD, SSD |
| Storage drive interface |
Serial ATA III |
Power
| AC adapter output current |
9.23 A |
| Power supply |
180 W |
Motherboard
| Number of processors supported |
1 |
| Processor socket |
BGA 1440 |
| Compatible processor series |
Core i7 |
Processor
| Processor boost frequency |
3.5 GHz |
| Processor lithography |
14 nm |
| Thermal Design Power (TDP) |
45 W |
| Processor threads |
8 |
| Processor cores |
4 |
| Built-in processor |
Y |
| Processor frequency |
2.6 GHz |
Processor special features
| Intel Flex Memory Access |
Y |
| Execute Disable Bit |
Y |
| Idle States |
Y |
| Thermal Monitoring Technologies |
Y |
| Intel Trusted Execution Technology |
Y |
| Intel® Small Business Advantage (Intel® SBA) |
Y |
| Intel Stable Image Platform Program (SIPP) |
Y |
| Intel® Quick Sync Video Technology |
Y |
| Intel® Insider™ |
Y |
| Intel 64 |
Y |
| Intel Clear Video Technology |
Y |
| Intel® Smart Response Technology |
Y |
| Embedded options available |
N |
| Intel Virtualization Technology for Directed I/O (VT-d) |
Y |
| Intel Hyper-Threading Technology |
Y |
| Intel® Turbo Boost Technology |
2.0 |
| Intel® Secure Key |
Y |
| Intel® My WiFi Technology (Intel® MWT) |
Y |
| Intel vPro Technology |
N |
| Intel VT-x with Extended Page Tables (EPT) |
Y |
| Enhanced Intel SpeedStep Technology |
Y |
| Intel TSX-NI |
Y |
| Intel® OS Guard |
Y |
| Intel® Wireless Display (Intel® WiDi) |
Y |
| Intel® Clear Video HD Technology (Intel® CVT HD) |
Y |
Networking
| Bluetooth version |
4.2 |
| LAN controller |
Intel I219-LM |
| Wi-Fi |
Y |
| Bluetooth |
Y |
Ports & interfaces
| USB 3.1 (3.1 Gen 2) Type-A ports quantity |
1 |
| USB 3.1 (3.1 Gen 2) Type-C ports quantity |
1 |
| Headphone outputs |
1 |
| Microphone in |
Y |
| DC-in jack |
Y |
| USB 3.0 (3.1 Gen 1) Type-A ports quantity |
2 |
| HDMI ports quantity |
1 |
Audio
| Audio system |
Realtek ALC255 |
Design
| Cable lock slot |
Y |
| Cooling type |
Active |
| Product type |
Mini PC (<= 3L) barebone |
Weight & dimensions
| Depth |
110 mm |
| Width |
220 mm |
| Height |
110 mm |
Performance
| Maximum resolution |
3840 x 2160 pixels |
| Windows operating systems supported |
Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64 |
Expansion slots
| PCI Express slots version |
3.0 |
Operational conditions
| Storage temperature (T-T) |
-20 - 60 °C |
Additionally
| InTru™ 3D Technology |
Y |
| Chipset |
Intel HM170 |
| Mini DisplayPort quantity |
3 |
| Colour of product |
Silver |
| Graphics |
GeForce GTX 950 |
| Ethernet LAN connection |
Y |
| Intel AES New Instructions |
Y |
| AC adapter bundled |
Y |
| Ethernet LAN (RJ-45) ports quantity |
1 |
| Operating temperature range (T-T) |
0 - 35 °C |

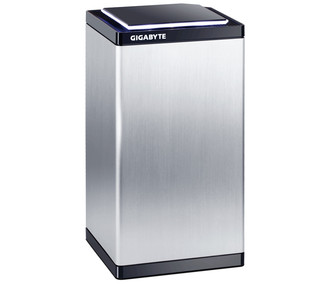

Intel Core i7-6700HQ 2.6 GHz, Intel HM170, 2x DDR4, Gigabit LAN, Realtek ALC255, GeForce GTX950 GDDR5 4 GB, M.2, HDMI, 3x Mini DisplayPort, 2x USB 3.0, RJ-45, DC-in, 2x USB 3.1, 2x 2.5" HDD/SSD
Gaming Like You’ve Never Seen Before
The BRIX Gaming UHD is the newest BRIX in the Gaming family, with many gaming features that users saw with its predecessor, this BRIX is no different. It sports a high-performance Intel® Core™ Processor, Core i5 or i7 and an NVIDIA® GeForce® GTX 950. The BRIX Gaming UHD improves upon its support for 2.5" storage drives, as well as the newer M.2 flash based storage drives by allowing users to install two of each. Users will find that a Wi-Fi module comes pre-installed on the BRIX for added convenience. In its latest iteration, the BRIX now supports the newest SO-DIMM DDR4 modules, supporting up to 32GB of memory.
All of these features and more can be found on this BRIX Gaming PC, it is designed to be the center of your home entertainment needs. Whether on a desktop or as a console replacement, this unit can do it all.
The New Standard in Compact Computing
With the BRIX Gaming UHD weighing in at only 2.6L, GIGABYTE has been able to achieve the impossible. GIGABYTE has been able to build a PC that has a large variety of parts and components with performance comparable to a high-end gaming desktop PC. Not only that—its sleek and stylish design makes it suitable for any environment users plan to place it in.
Powerhouse Graphics NVIDIA GeForce GTX 950
The GIGABYTE BRIX Gaming UHD is designed with a dedicated GeForce GTX 950 graphics card, a true gaming GPU made for PC gamers. Transform your PC into a gaming rig that rivals any game console to enjoy fast and responsive MOBA gaming and the latest game titles in 1080p. Users have the option to push the envelope even further by utilizing the 4K function to experience four times the pixels used in standard HD and with the BRIX Gaming UHD's multiple video outputs users can have the ability to display four 4K images. Powered by NVIDIA Maxwell™ architecture, the GeForce GTX 950 delivers 3x the performance of previous-generation cards. Additionally, Maxwell™ improves greatly in three main areas of gaming which are anti-aliasing, ray tracing and most importantly, virtual reality.
Powered with Intelligence, Intel's i7 or i5 Processor
With amazing performance and stunning visuals the GIGABYTE BRIX Gaming UHD, powered by 6th Gen Intel Core processors will help take things to the next level and transform how you use a PC. The performance of 6th Gen Intel Core processors enable great user experiences today and in the future, including no passwords and more natural user interfaces. 6th Gen Intel Core i7 and Core i5 processors come with Intel Turbo Boost 2.0 Technology which gives you that extra burst of performance for those jobs that require a bit more frequency.
Sleek, Cool & Quiet
From the looks of the exterior of the unit it's obvious that a lot of innovation went into the development of the GIGABYTE BRIX Gaming UHD. Many hours have been spent on improving performance of the cooling system, thus we created this ergonomic thermal design that allows GIGABYTE to keep the system cool and at the same time as quiet as possible. The components within this PC were arranged to reduce air resistance to allow maximum airflow so the high performance CPU and GPU can remain cool even during heavy loads while the user is gaming or stressing the performance of the system. With all this innovation in the BRIX Gaming UHD's development we were able to reduce the acoustic level under peak load to a mere 36dB—quieter than sound levels in a library.

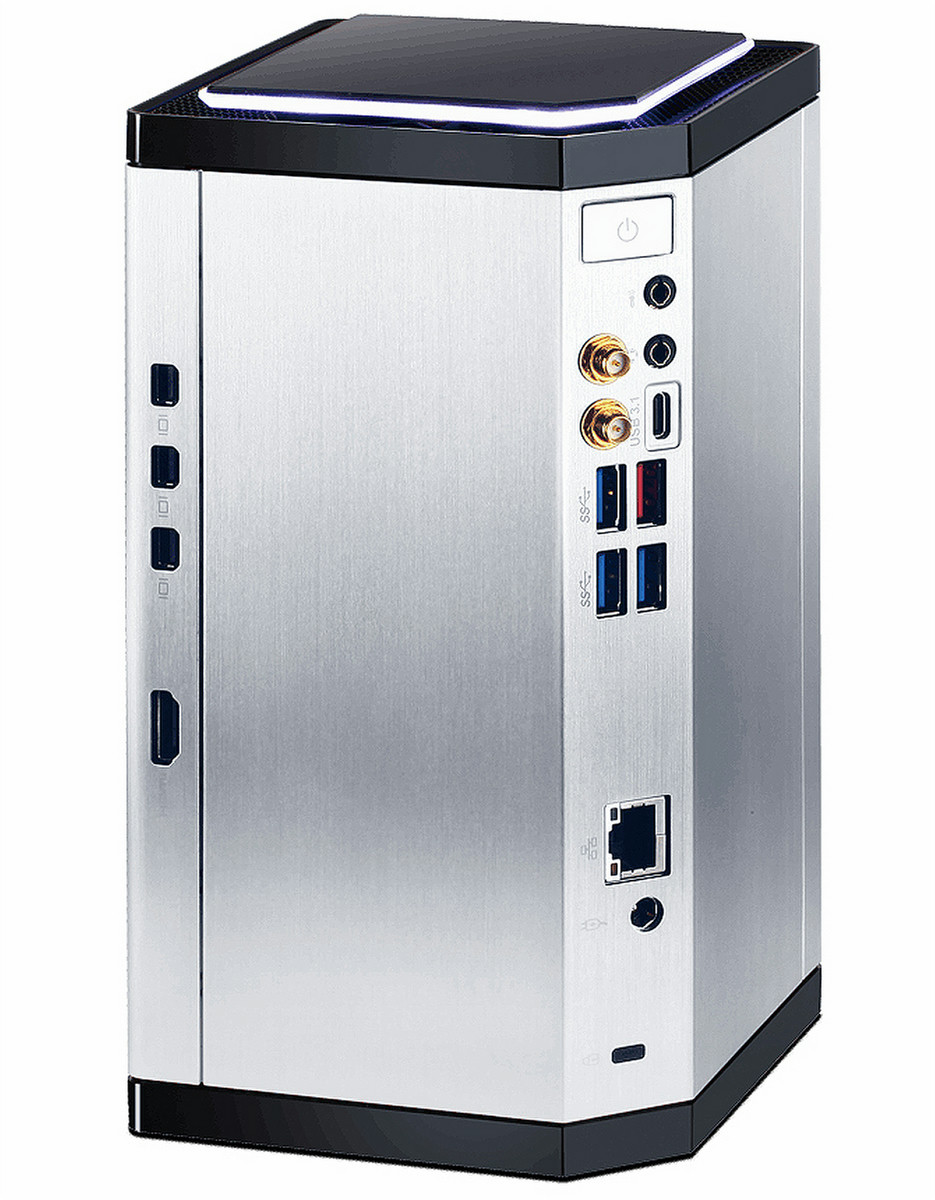

Connecting the Future — USB3.1 in Type-A and Type-C
Versatility is one of the BRIX Gaming UHD's strengths, with multiple USB3.0 ports users can connect all of their devices directly to the unit. The BRIX offers the next generation of USB connectivity, with support for both USB3.1 standards in Type-A as well as the reversible Type-C.
Network Connectivity
The BRIX Gaming UHD is designed to simplify the desktop PC as well as reinvent what a gaming PC is all about, wireless and bluetooth are included with this PC via a M.2 PCIe expansion card for Wi-Fi. This card conforms to IEEE 802.11 a/b/g/n/ac wireless standards as well as the latest in bluetooth technology, BT4.2. For enthusiasts who prefer the traditional method to connect to the internet GIGABYTE has also included an Intel Gigabit Ethernet port, supporting 10/100/1000Mb speeds.
Storage Expansion
With more and more users demanding larger storage and as content continues to grow in size, GIGABYTE's BRIX Gaming UHD has the solution. It supports multiple drives, four (4) total, which users can RAID their traditional SSD's with a M.2 drive to take advantage of the faster speeds.
