Internal I/O
| Power fan connector |
Y |
| ATX Power connector (24-pin) |
Y |
| Number of Parallel ATA connectors |
1 |
| S/PDIF out connector |
Y |
| USB 2.0 connectors |
2 |
| Number of SATA connectors |
4 |
| Front panel audio connector |
Y |
| CPU fan connector |
Y |
| Peripheral (Molex) power connectors (4-pin) |
1 |
| Number of SATA III connectors |
4 |
BIOS
| BIOS type |
AWARD |
| ACPI version |
1.0b |
| Clear CMOS button |
Y |
| BIOS memory size |
32 MB |
Back panel I/O ports
| HDMI ports quantity |
1 |
| VGA (D-Sub) ports quantity |
1 |
| Headphone outputs |
3 |
| PS/2 ports quantity |
1 |
| DVI-D ports quantity |
1 |
Networking
| Networking features |
10/100/1000 Mbit |
Performance
| Audio system |
Realtek ALC889 |
| Motherboard southbridge |
AMD SB710 |
Memory
| Number of memory slots |
2 |
| Maximum internal memory |
8 GB |
| Memory channels |
Dual |
| Memory voltage |
1.5 V |
Graphics
| Graphics adapter family |
AMD |
| On-board graphics adapter |
Y |
Expansion slots
| PCI Express x16 slots |
1 |
| PCI slots |
2 |
| PCI Express x1 slots |
1 |
Additionally
| System bus data transfer rate |
5.2 GT/s |
| Chipset |
AMD 880G |
| Ethernet LAN (RJ-45) ports quantity |
1 |

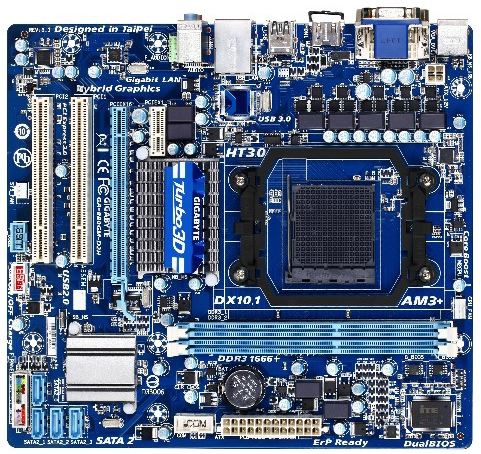

GA-880GM-D2H (rev. 3.1), AMD 880G + SB710 Chipset
- Integrated HDMI/ DVI interface for Full HD 1080 Blu-ray playback with HDCP
- Supports AMD AM3+ & AM3 PhenomII/ AthlonII processors
- Integrated ATI Radeon HD 4250 graphics (DirectX10.1)
- PCI-E 2.0 x16 interface with ATI Hybrid CrossFireX support for ultimate graphics performance
- 3X USB power delivery for greater compatibility and extra power for USB devices
- Hi-def 108dB Signal-to-noise ratio Blu-ray DVD audio playback
- Innovative Turbo 3D technology to unleash extra levels of 2D/3D graphics performance
- Unique On/Off Charge delivers the best recharging capability to iPad, iPhone and iPod Touch
- Hybrid EFI technology with DualBIOS for 3TB HDD support
- Next Generation Ultra Durable 2 Classic and 4+1 Phase CPU Power design
